Crankshaft and Bearings Removal

WARNING: This page is about a different variant/trim than selected.

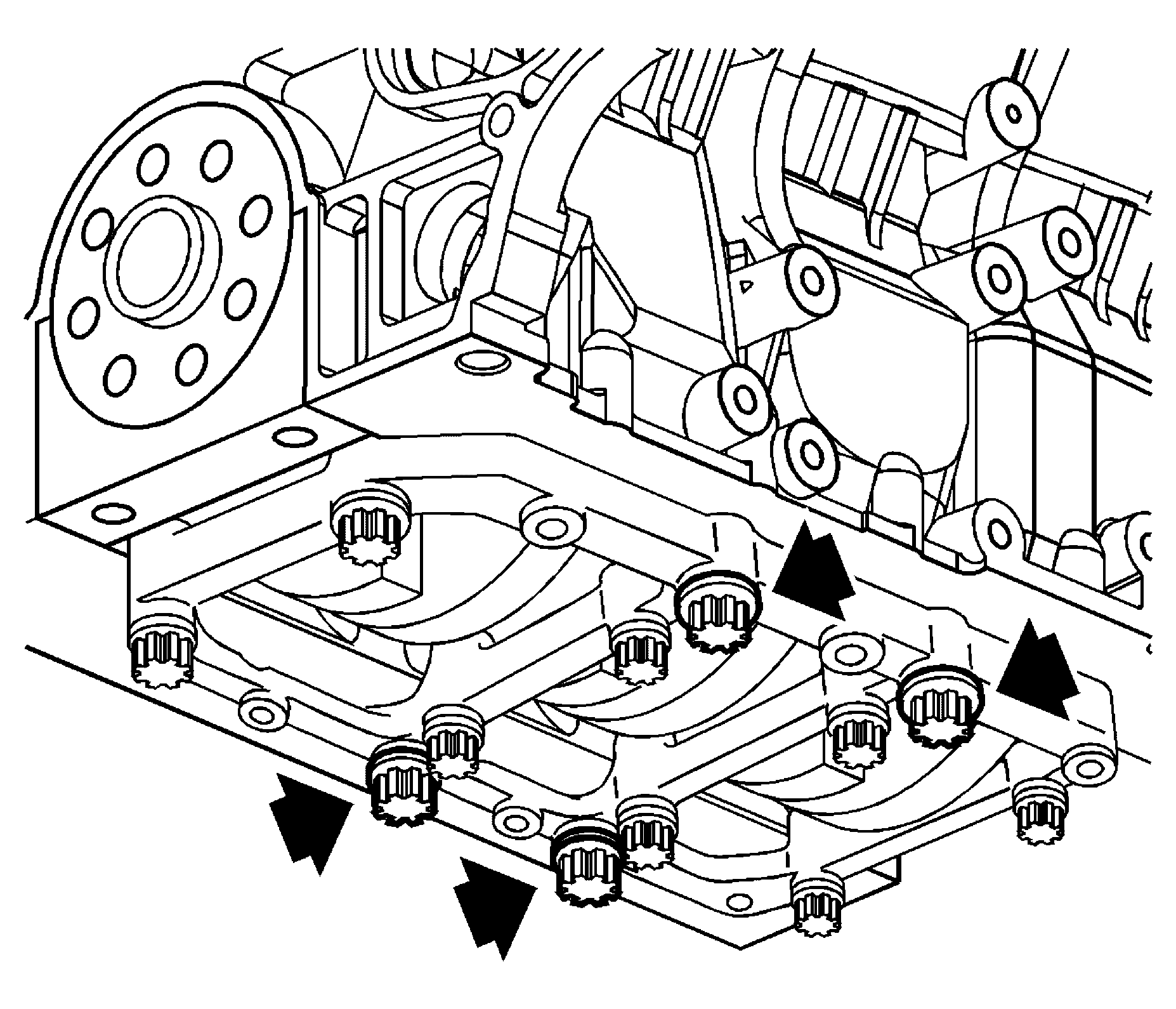

    Fig 1: Removing & Installing Crankshaft Bearing Bridge Bolts
    GM769027Courtesy of GENERAL MOTORS CORP.
  1. Remove the crankshaft bearing bridge bolts.

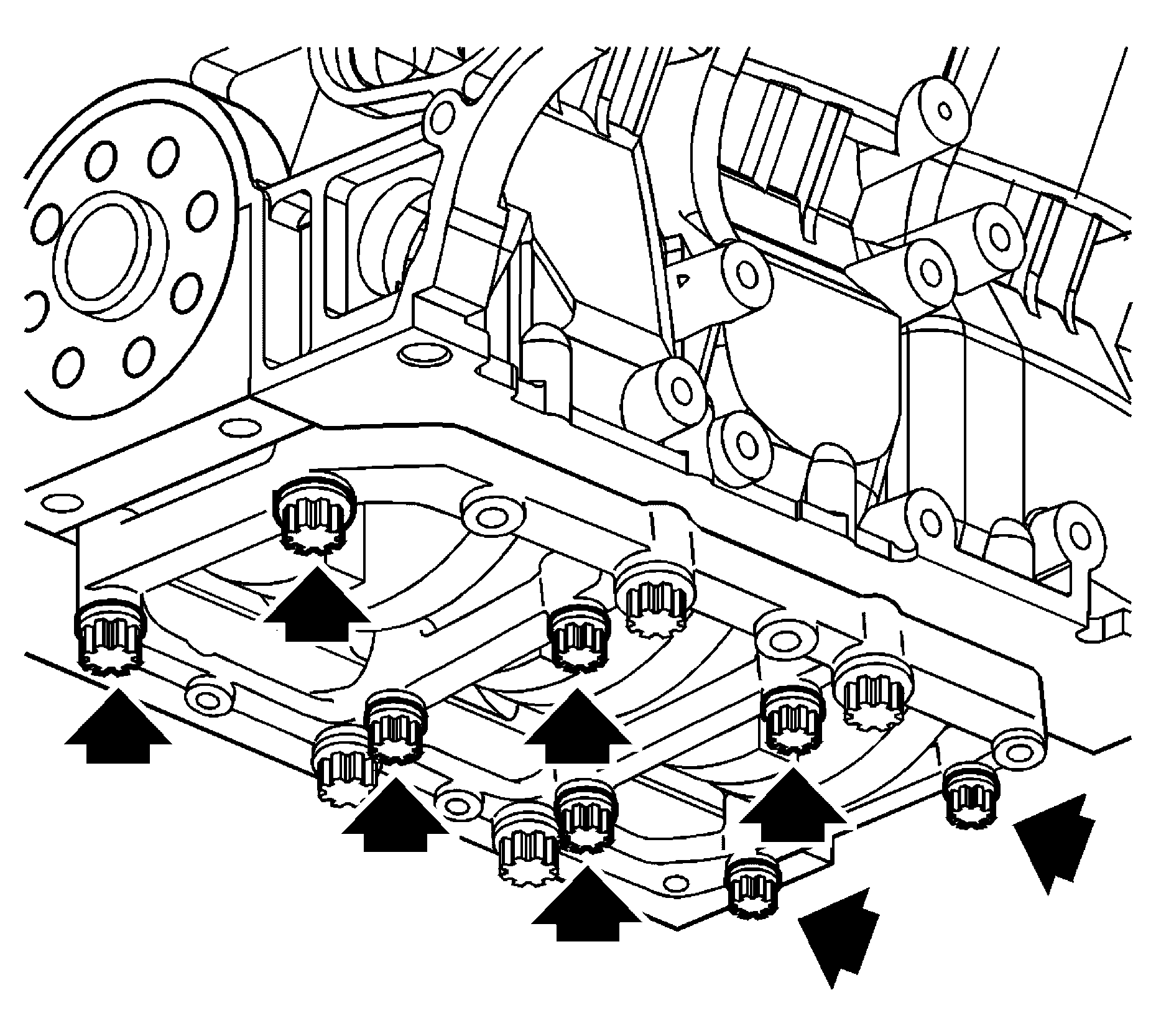

    2. Fig 2: Removing & Installing Main Bearing Cap Bolts
    GM769028Courtesy of GENERAL MOTORS CORP.
  2. Remove the main bearing cap bolts.
    3. Fig 3: Removing & Installing Crankshaft Bearing Bridge
    GM769029Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft bearing bridge.
    4. Fig 4: Removing & Installing First, Second & Third Main Bearing Caps
    GM769030Courtesy of GENERAL MOTORS CORP.
  4. Remove the first main bearing cap.
  5. Remove the first main bearing cap lower insert.
  6. Remove the second main bearing cap.
  7. Remove the second main bearing cap lower insert.
  8. Remove the third main bearing cap.
  9. Remove the third main bearing cap lower insert.
  10. Perform the following steps to remove the fourth main bearing cap:
    1. Insert a bolt into the main bearing cap oil pan threaded hole or pry the crankshaft and drain the bearing cap from the block using a pry bar at each end of the flywheel.
    2. Use a pry bar to remove the cap from the block.
    3. Remove the fourth main bearing cap.
    4. Remove the fourth main bearing cap lower insert.
  11. Carefully remove the crankshaft.
  12. Remove the main bearing upper inserts from the block.
    13. Fig 5: Removing & Installing Crankshaft Position Sensor
    GM797538Courtesy of GENERAL MOTORS CORP.
  13. Remove the crankshaft position sensor bolt.
  14. Remove the crankshaft position sensor.
    15. Fig 6: Removing & Installing Crankshaft Reluctor Ring Bolts
    GM217377Courtesy of GENERAL MOTORS CORP.
  15. Remove the crankshaft reluctor ring bolts.
  16. Remove the crankshaft reluctor ring.
