Crankcase Vent Housing Installation

WARNING: This page is about a different variant/trim than selected.

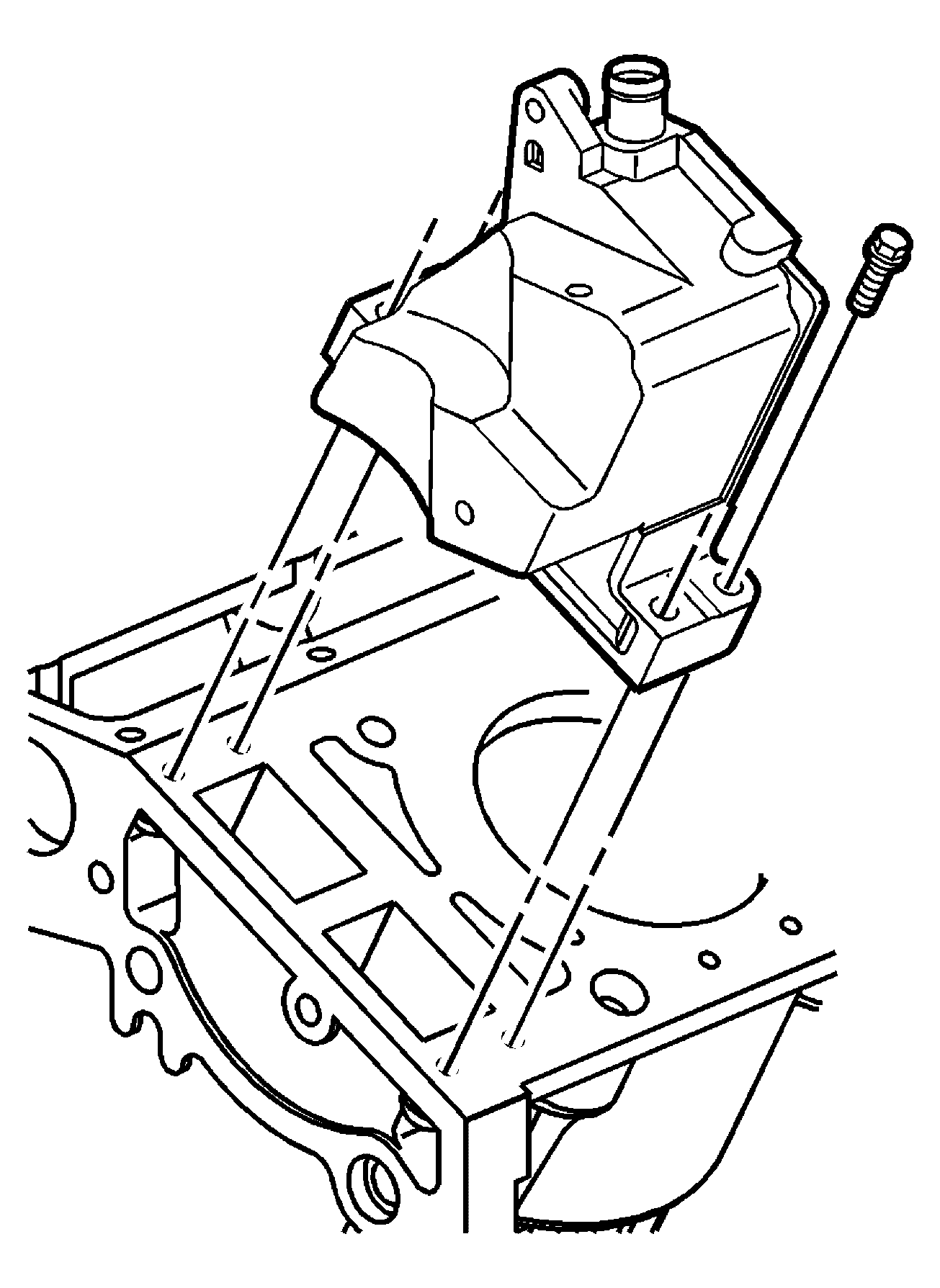

Fig 1: Crankcase Vent Housing & Bolts

Courtesy of GENERAL MOTORS CORP.

Apply sealant GM P/N 1052942, (Canadian P/N 10953466), to the mating surface of the crankcase vent housing.
Install the crankcase vent housing.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the crankcase vent housing bolt.
Tighten: Tighten the crankcase vent housing bolt to 8 N.m (71 lb in).
Install the hoses to the crankcase vent housing.
