Camshaft Removal - Left

WARNING: This page is about a different variant/trim than selected.

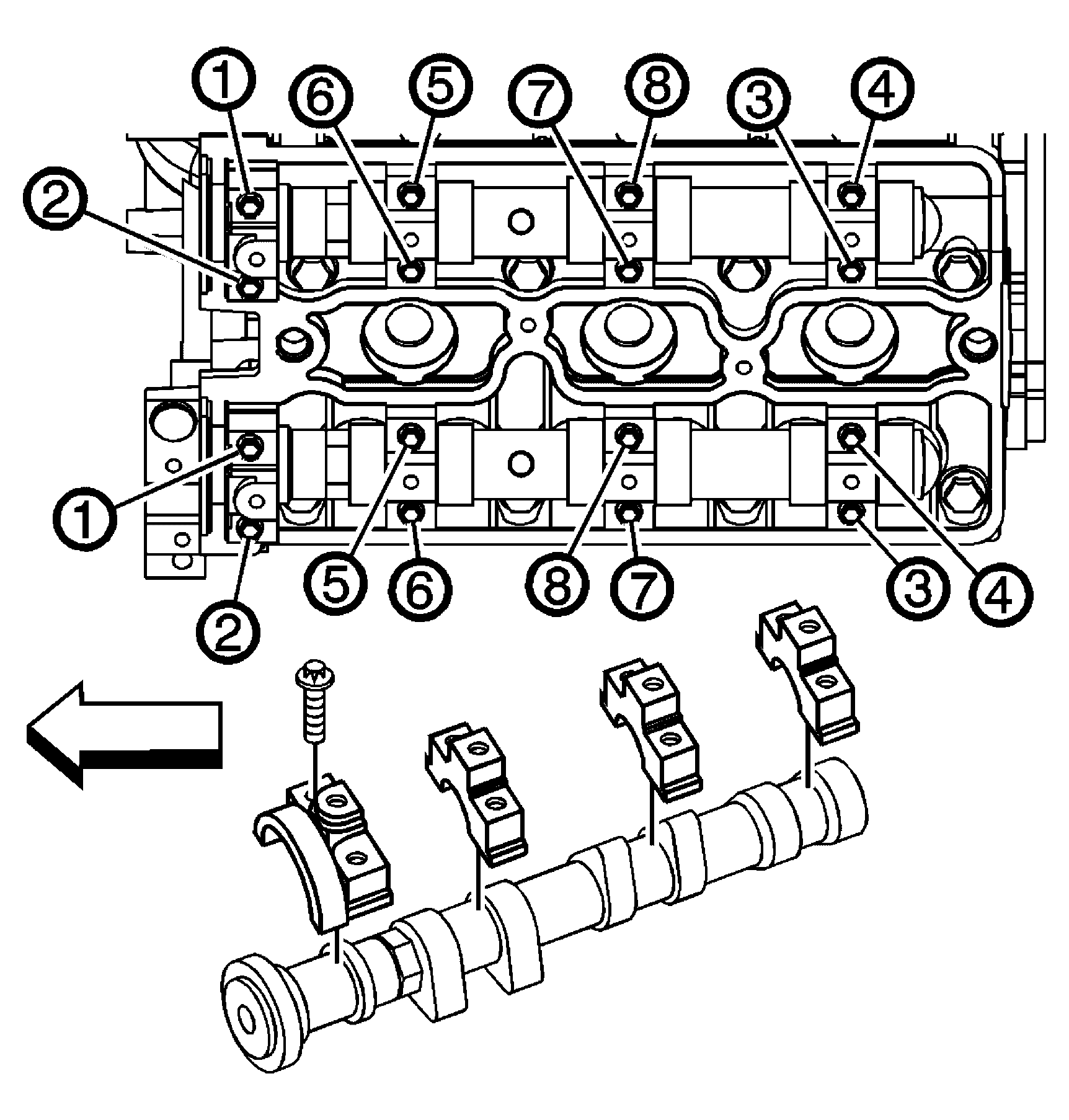

    Fig 1: Identifying Camshaft Bearing Cap Bolts Loosening Sequence
    GM769021Courtesy of GENERAL MOTORS CORP.
  1. Remove the camshaft bearing cap bolts using loosening sequence.

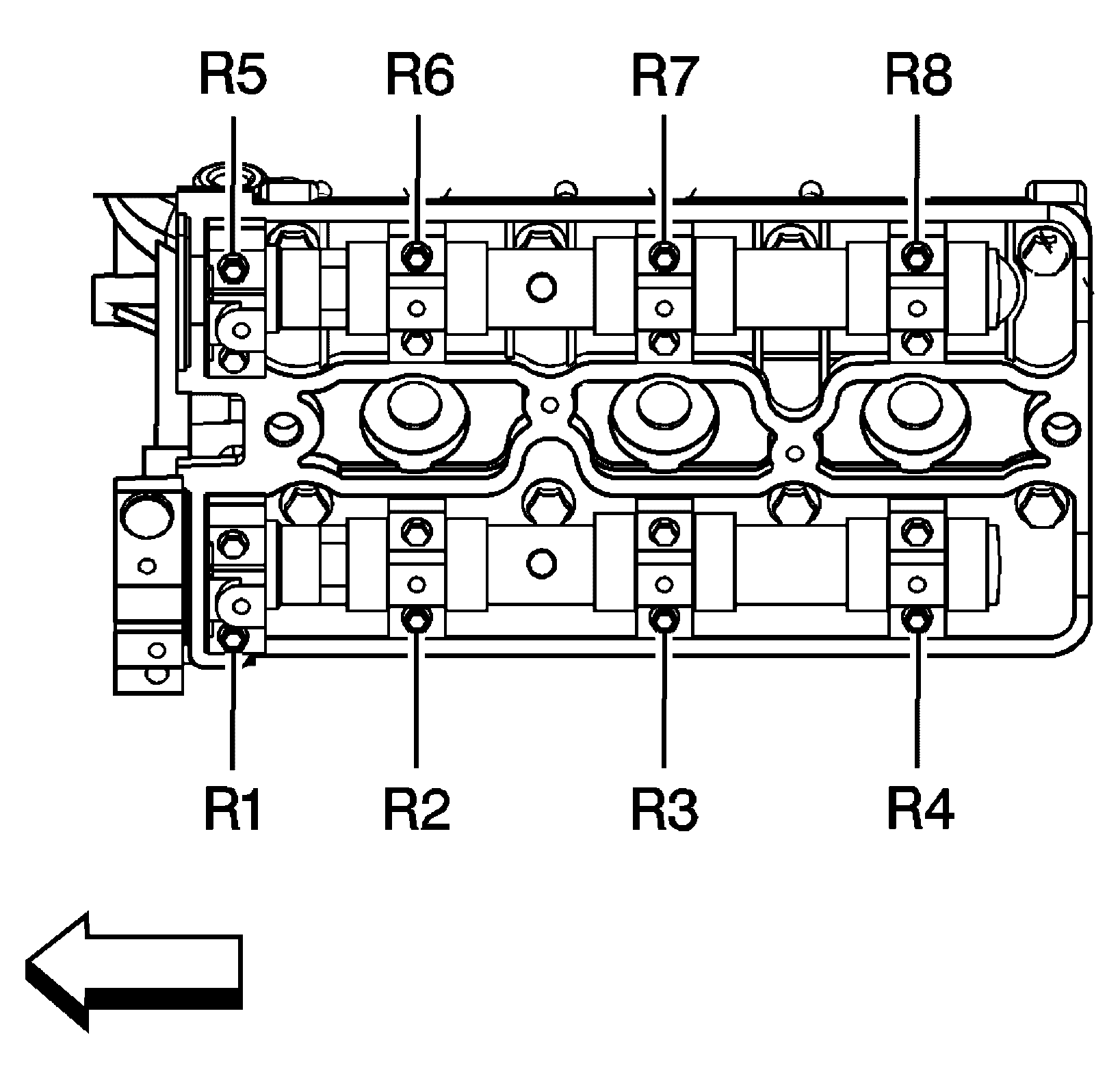

    2. Fig 2: Identifying Code Marks On Camshaft Bearing Caps
    GM769022Courtesy of GENERAL MOTORS CORP.
  2. Remove the camshaft bearing caps. Note the code marks on the bearing caps (R1, R2, R3, etc.).
  3. Remove the camshaft with the seal attached.
  4. Remove the camshaft seals.
