Camshaft Cover Installation - Left

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing O-Ring Seals To Camshaft Cover
    GM345851Courtesy of GENERAL MOTORS CORP.
  1. Lightly coat the new seals, including the O-rings, with engine oil prior to installation to assist in holding the O-ring seals to the camshaft cover.
  2. Install the camshaft cover seals.
    3. Fig 2: Applying Thin Coat Of Silicone To Front & Back Of Seals
    GM345856Courtesy of GENERAL MOTORS CORP.
  3. Apply a thin coat of silicone sealer G/M P/N 12346286 (Canadian P/N 10953472) to the front and back of the seals.
    4. Fig 3: Applying Bead Of Silicone Sealer At Front & Rear Of Camshaft Cover Between Seals
    GM803449Courtesy of GENERAL MOTORS CORP.
  4. Apply a 3 mm (0.12 in) bead of silicone sealer GM P/N 12346286 (Canadian P/N 10953472) at the front and rear of the camshaft cover between the seals.

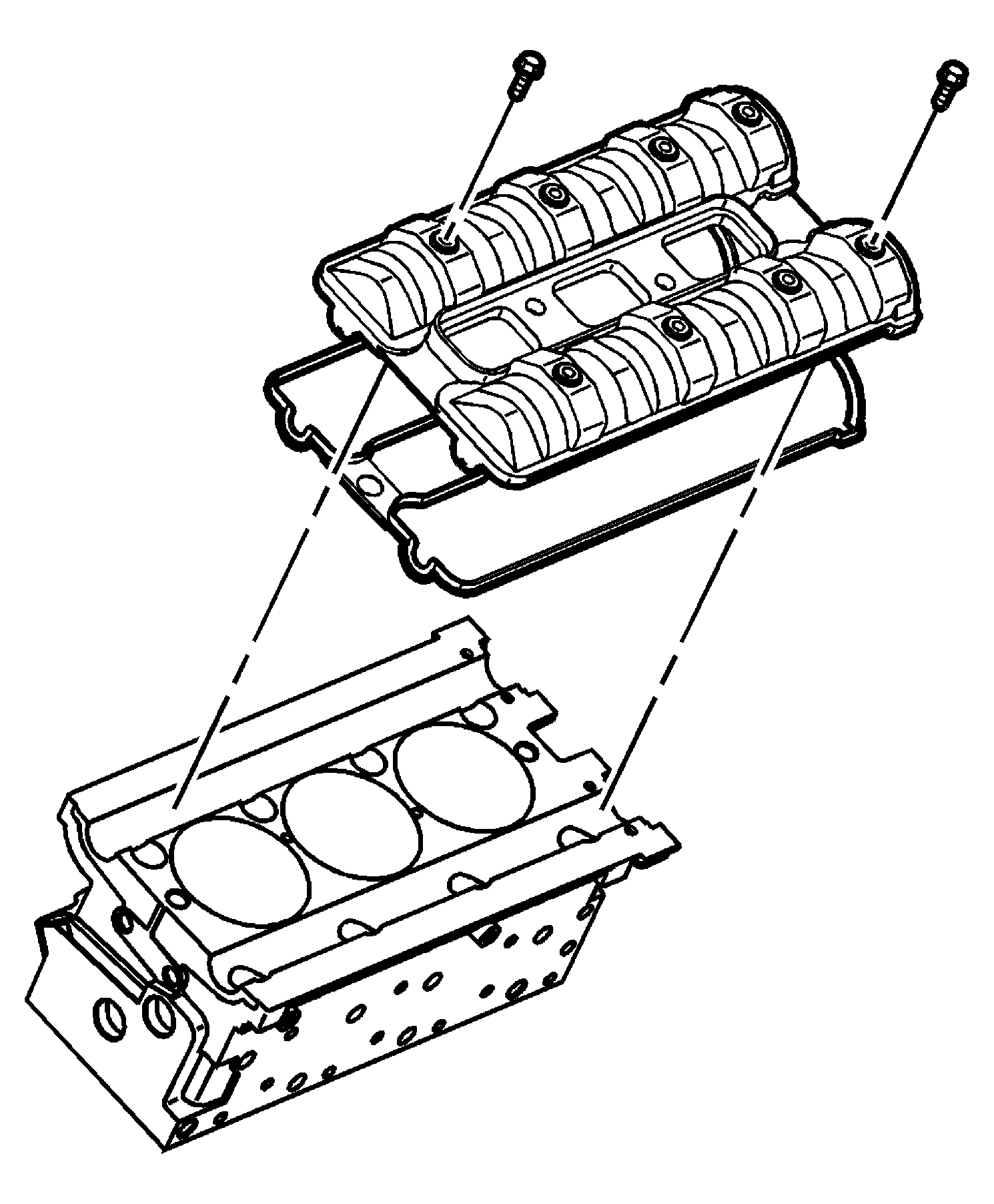

    5. Fig 4: Installing Camshaft Cover
    GM769007Courtesy of GENERAL MOTORS CORP.
  5. Install the camshaft cover to the cylinder head.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the camshaft cover bolts.

    Tighten:  Tighten the camshaft cover bolts to 8 N.m (71 lb in).

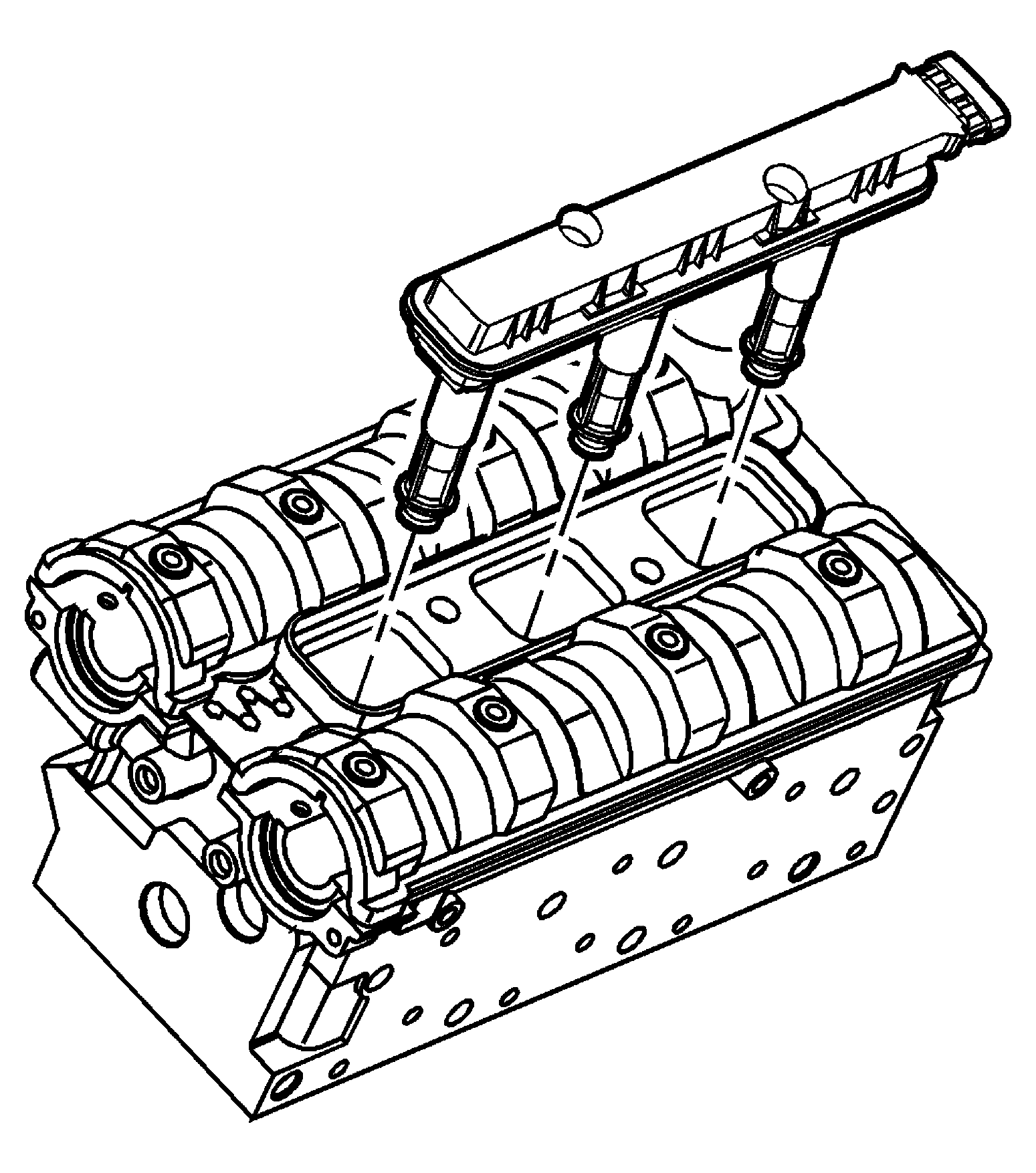

    7. Fig 5: Installing Spark Plugs
    GM769010Courtesy of GENERAL MOTORS CORP.
  7. Install the spark plugs.

    Tighten:  Tighten the spark plugs to 25 N.m (18 lb ft).

  8. Install the coil cassette.
  9. Install the coil cassette bolts.

    Tighten:  Tighten the coil cassette bolts to 8 N.m (71 lb in).

    10. Fig 6: Exploded View Of Oil Filler Spout
    GM804903Courtesy of GENERAL MOTORS CORP.
  10. Install the oil filler cap.
