Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Oil Filler Spout
    GM804903Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filler spout by unlocking the tab and twisting counterclockwise.
    2. Fig 2: View Of Remote Power Steering Fluid Reservoir & Wiring Harness Connector
    GM785764Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the following from the remote power steering fluid reservoir (1):
    • The vacuum brake booster hose
    • The wiring harness (2)
  3. Disconnect the vacuum brake booster hose from the vacuum source.
    4. Fig 3: Locating Remote Power Steering Fluid Reservoir Mounting Bolts
    GM785730Courtesy of GENERAL MOTORS CORP.
  4. Remove the remote power steering fluid reservoir mounting bolts (1, 3) ONLY, and position aside.
    5. Fig 4: Identifying Coil Pack Electrical Connector
    GM785821Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector (2) from the coil pack (1).
  6. Remove the coil pack retainer bolts.
    7. Fig 5: View Of J 43301 Installed Into Coil Pack
    GM411471Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: DO NOT overtighten the J 43301  .
  7. Thread the J 43301  into the coil pack.

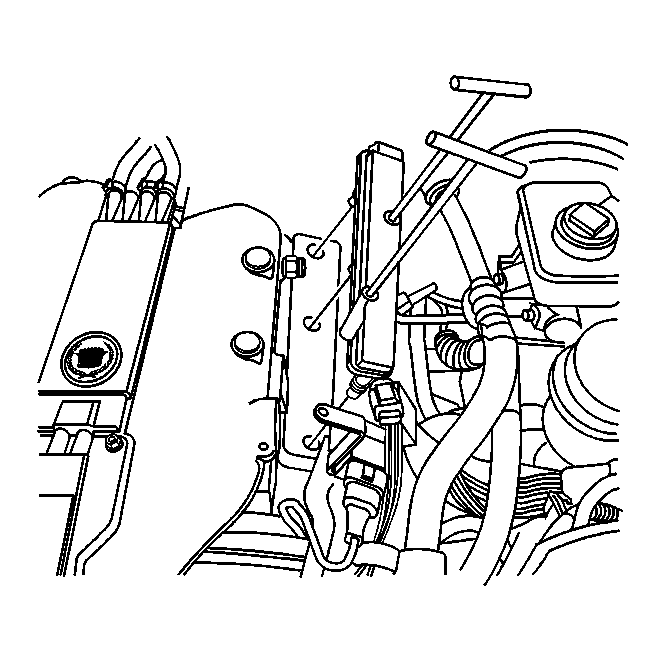

    8. Fig 6: View Of Coil Pack
    GM411468Courtesy of GENERAL MOTORS CORP.
  8. With even pressure, lift and remove the coil pack from the cam cover.
