Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

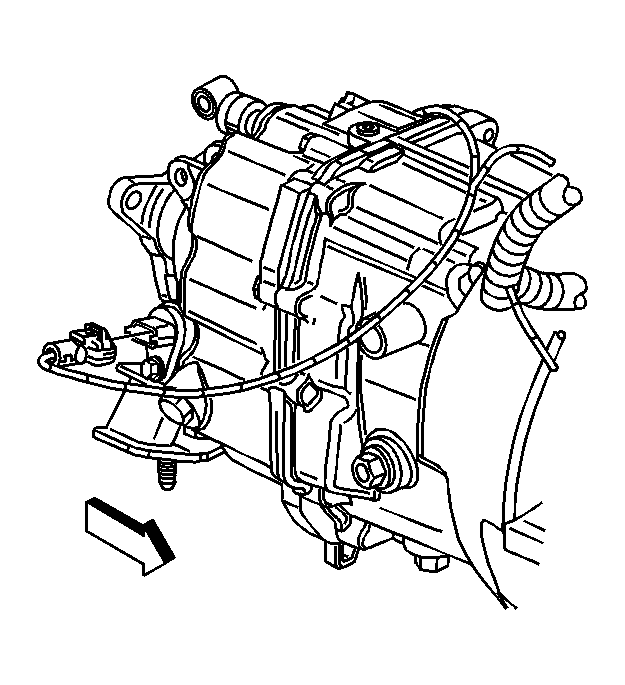

    2. Fig 1: Disconnecting Vehicle Speed Sensor (VSS) Electrical Connector
    GM785881Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the vehicle speed sensor (VSS) electrical connector.
    3. Fig 2: Removing VSS Retainer Bolt
    GM801368Courtesy of GENERAL MOTORS CORP.
  3. Remove the VSS retainer bolt.
  4. Remove the VSS by pulling the VSS straight out of the transmission.
  5. Remove the O-ring from the VSS only if the O-ring needs to be replaced.
