Removal Procedure

WARNING: This page is about a different variant/trim than selected.

NOTE: When removing or installing the backup lamp switch, do not use an open end wrench. Use only a socket in order to avoid damage to the switch assembly.

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.

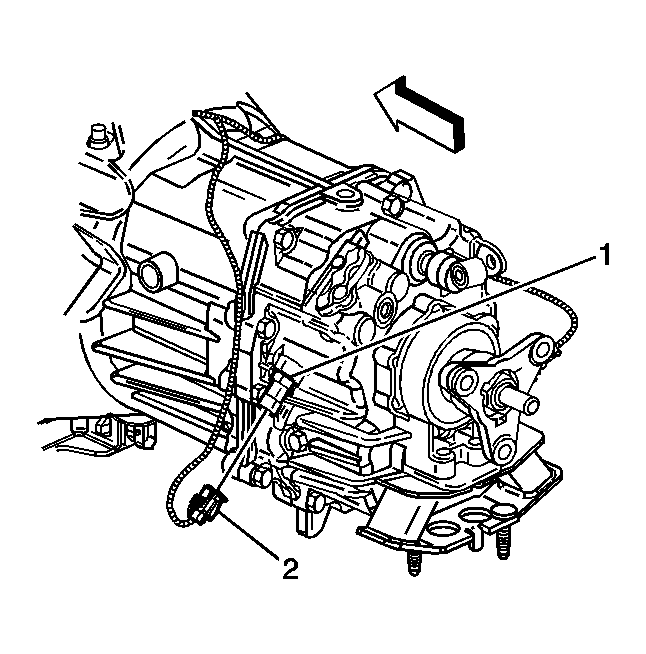

Fig 1: Disconnecting Backup Lamp Switch Electrical Connector From Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.

Disconnect the backup lamp switch electrical connector (2) from the backup lamp switch (1).

Fig 2: Removing Backup Lamp Switch Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the backup lamp switch assembly.
