Section 1 (Manual Transmission - M35)
>>
Component Locator
>>
Manual Transmission Component Views
Manual Transmission Component Views
WARNING:
This page is about a different variant/trim than selected.

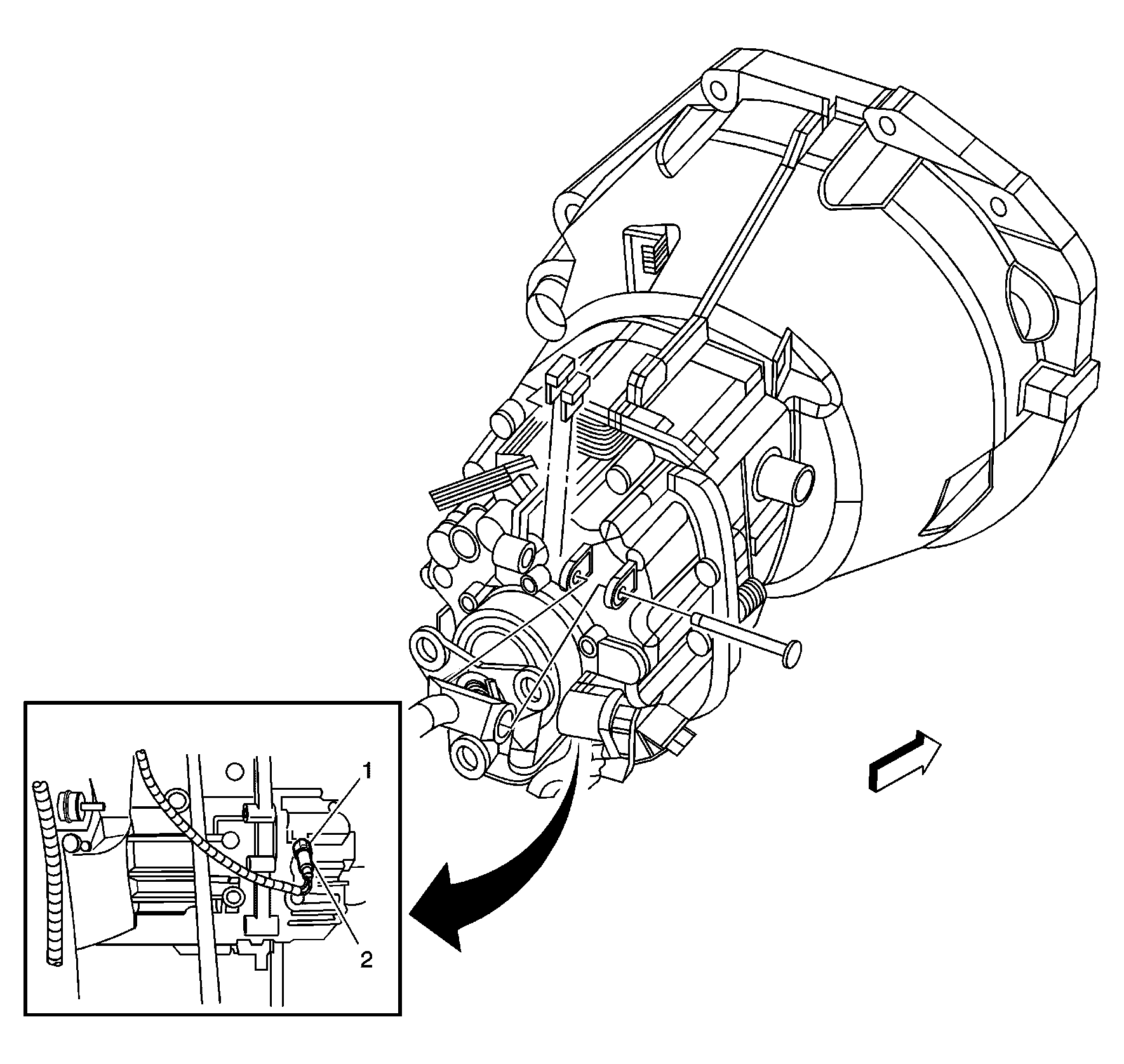

Fig 1: Vehicle Speed Sensor - M35
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Vehicle Speed Sensor
2
Vehicle Speed Sensor Connector
Courtesy of GENERAL MOTORS CORP.
