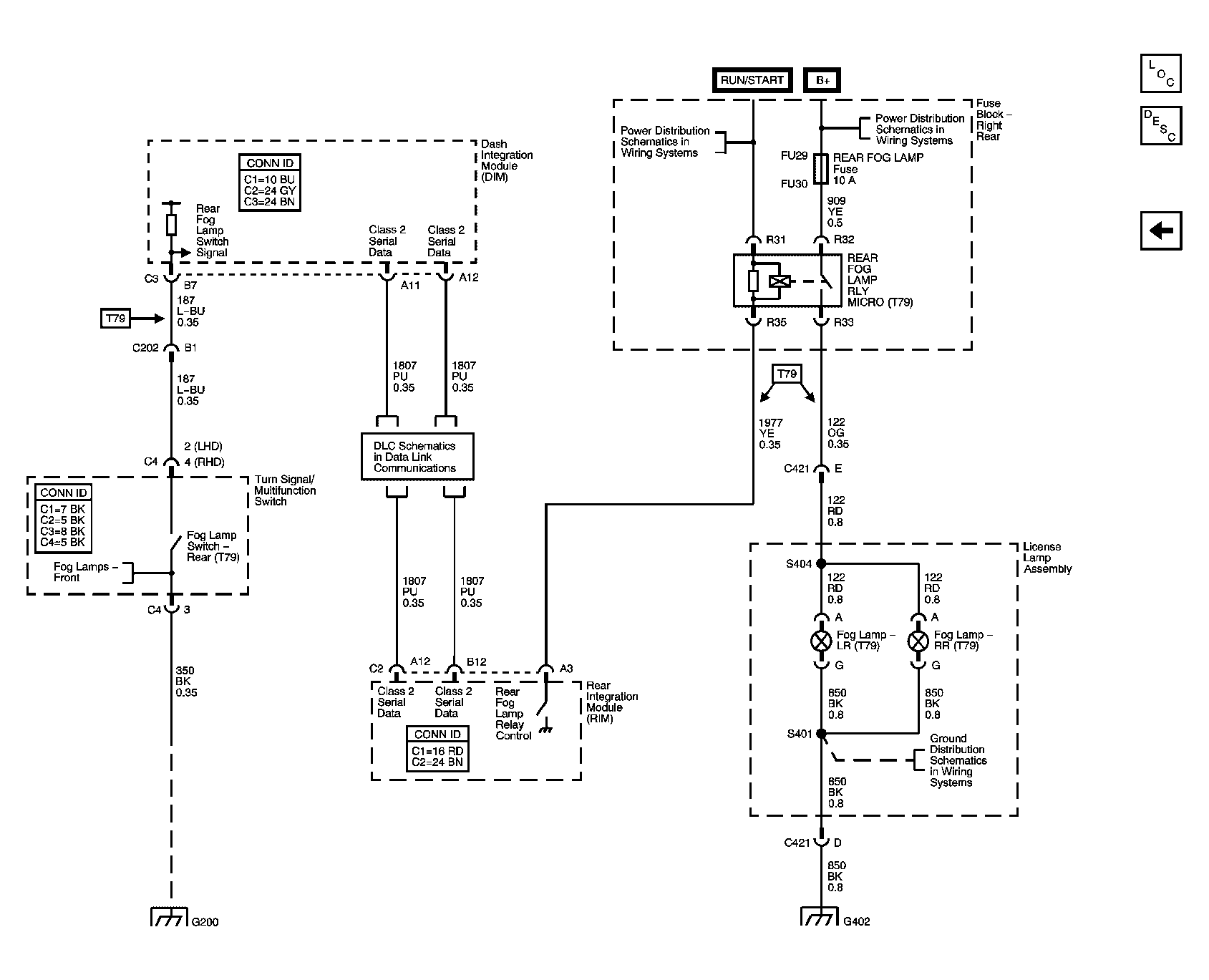

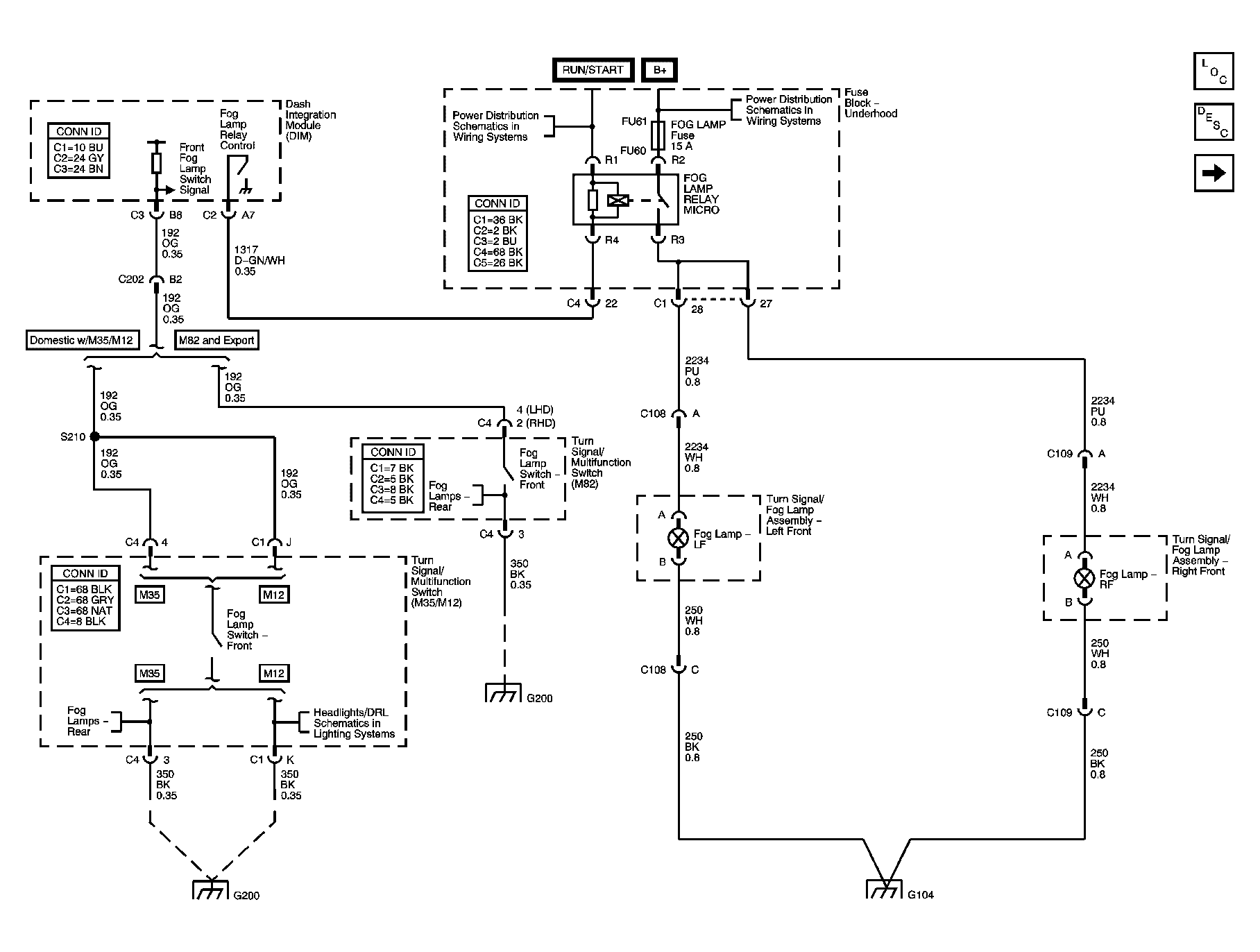

Home >> Cadillac >> 2004 >> CTS Base, 3.6 7 >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems (Introduction And Removal & Installation) >> Schematic and Routing Diagrams >> Fog Lights Schematics
