SIR Schematics

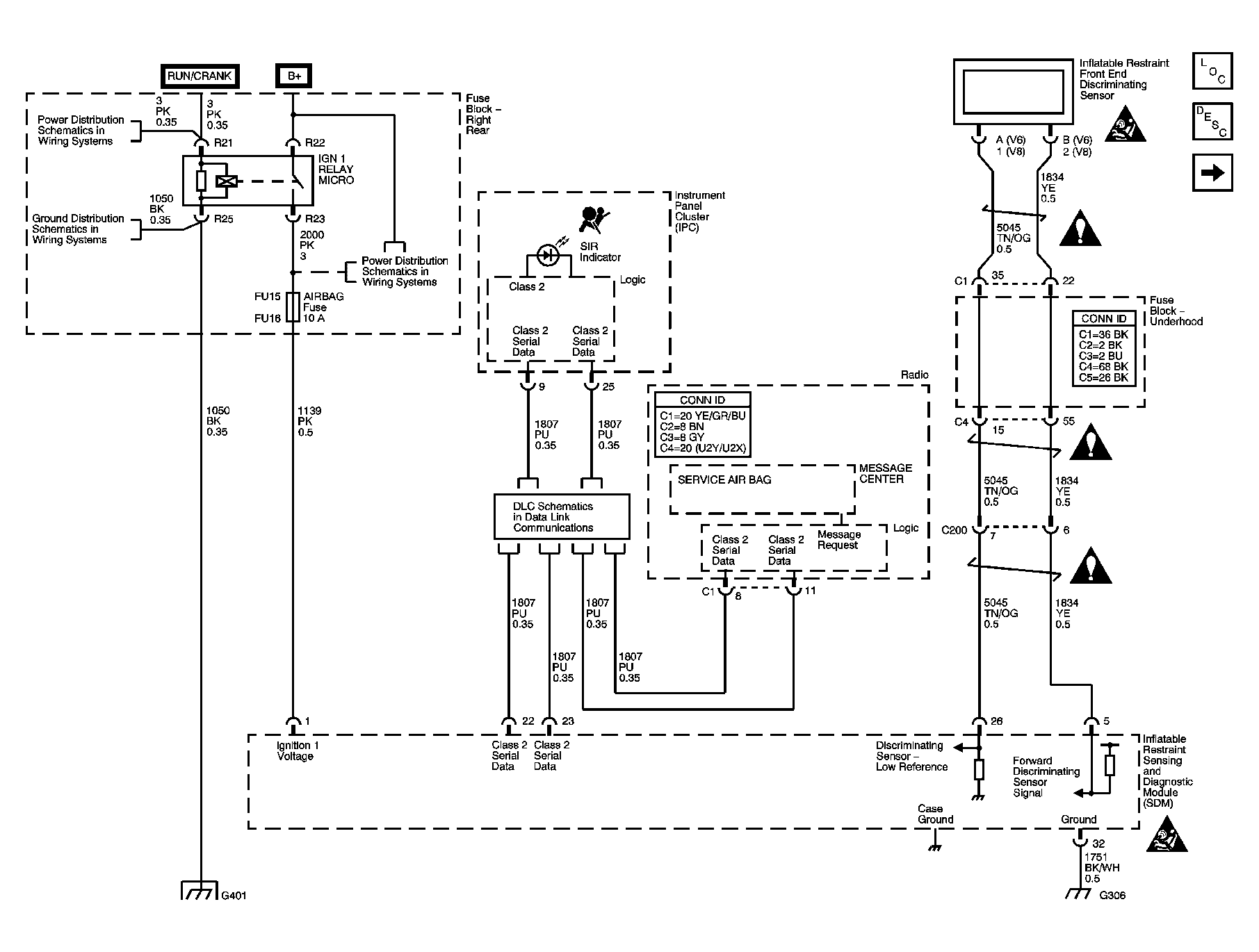

Fig 1: Power, Ground, Indicator, DIC and Front End Discriminating Sensor Schematics
GM1317327Courtesy of GENERAL MOTORS CORP.

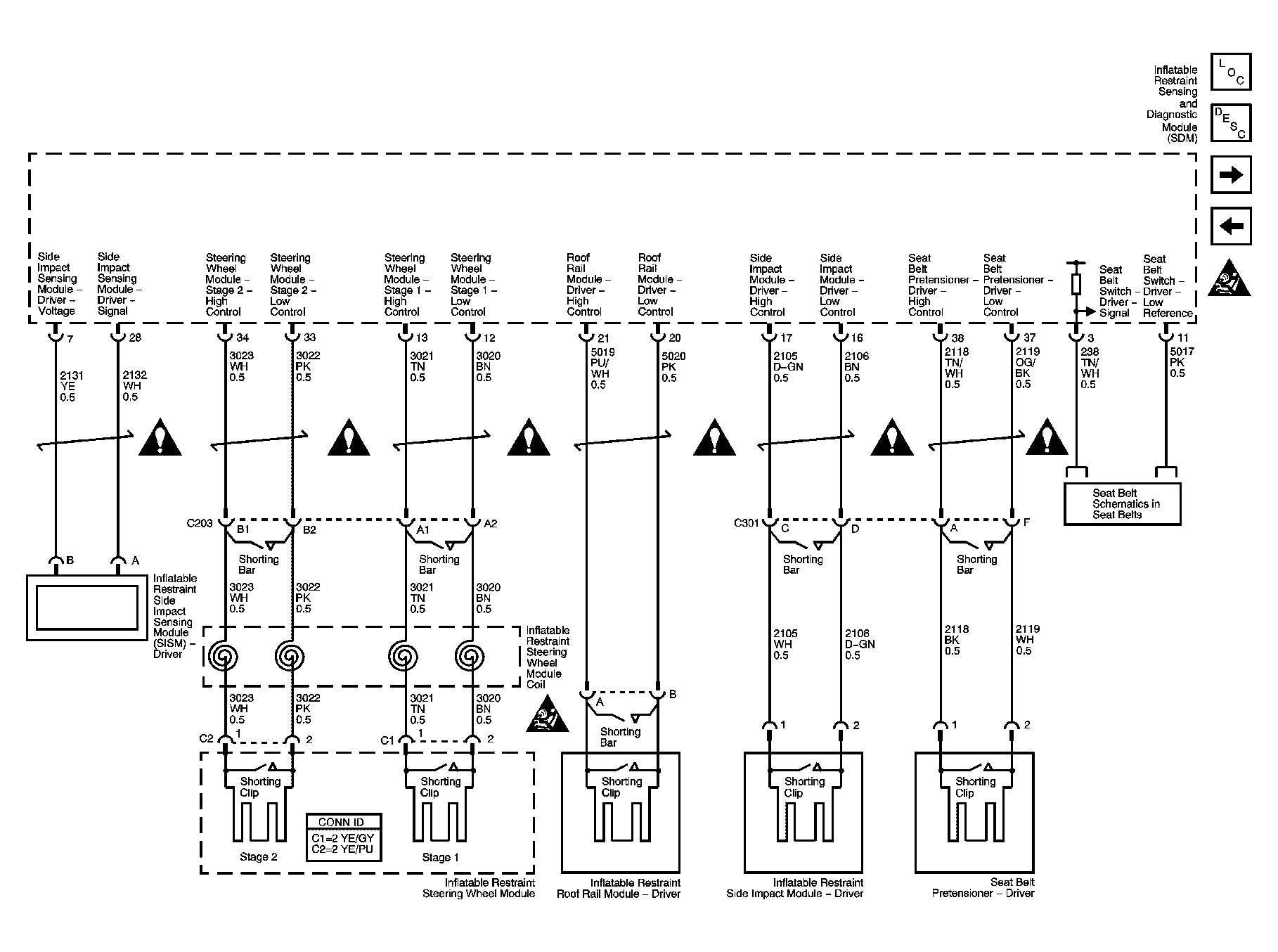

Fig 2: Driver SIR Modules and Sensor Schematics
GM1317461Courtesy of GENERAL MOTORS CORP.

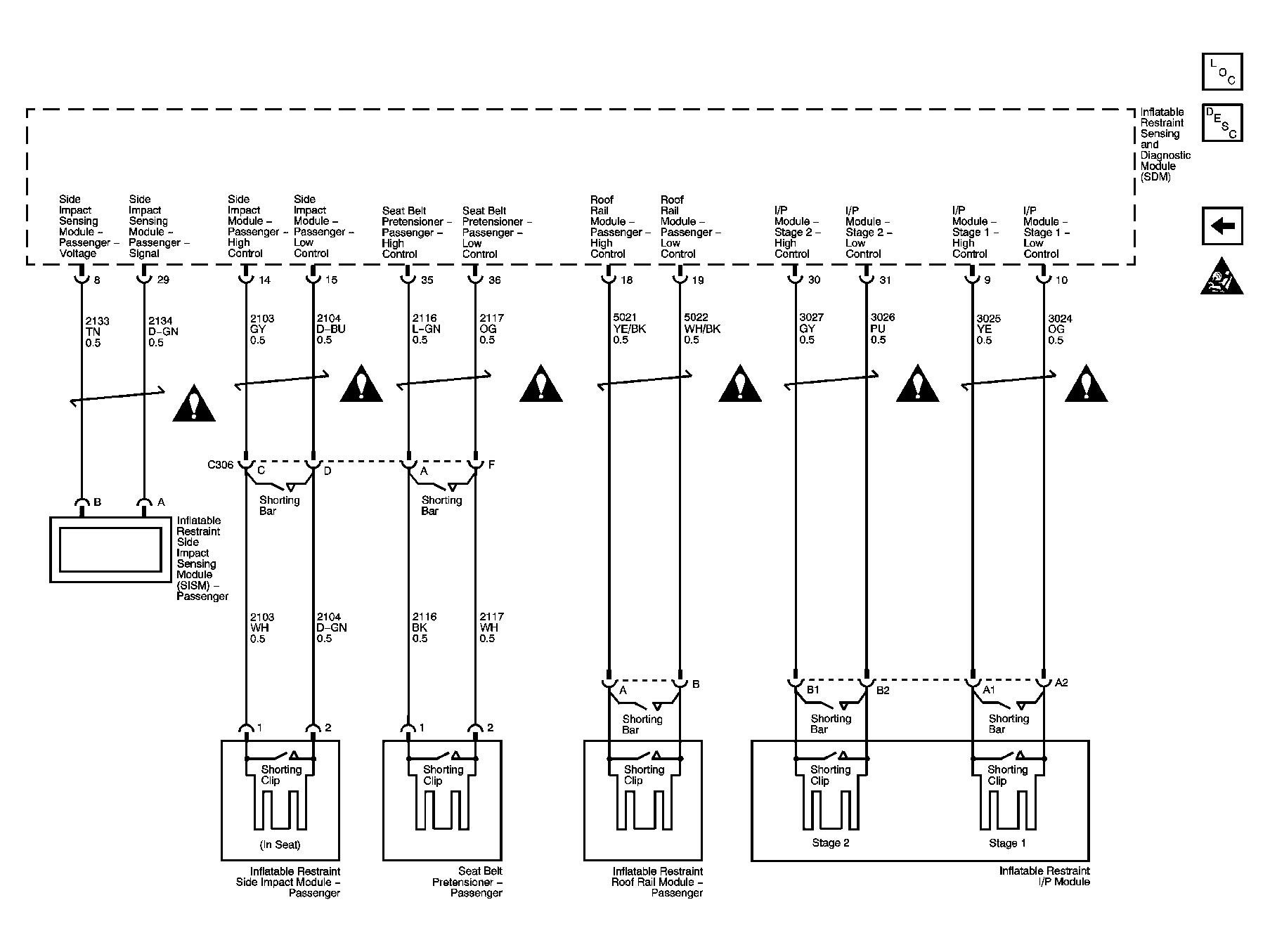

Fig 3: Passenger SIR Modules and Sensor Schematics
GM1317462Courtesy of GENERAL MOTORS CORP.
