Removal Procedure

WARNING: This page is about a different variant/trim than selected.

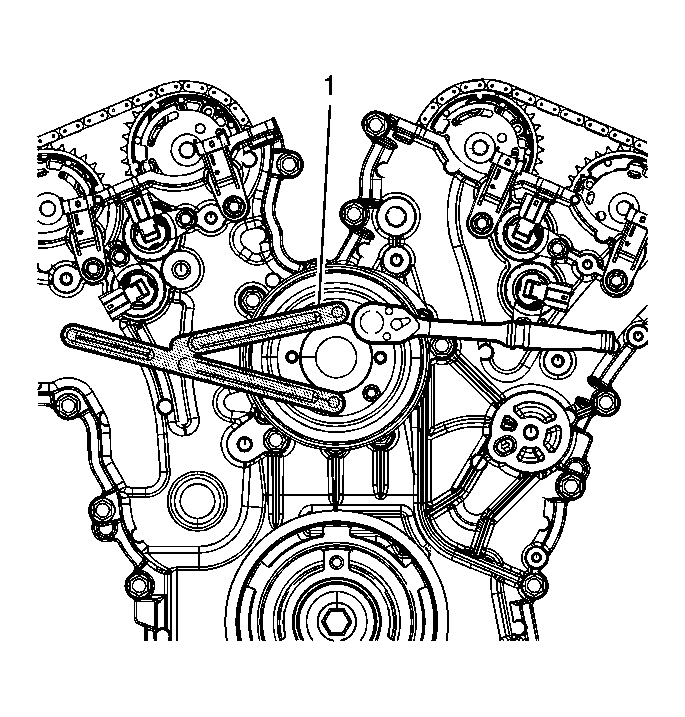

    Fig 1: Identifying EN 46104 Installed Onto Water Pump
    GM1478491Courtesy of GENERAL MOTORS CORP.
  1. Install the EN 46104  (1) onto the water pump pulley.
    2. Fig 2: View Of Water Pump Pulley
    GM902876Courtesy of GENERAL MOTORS CORP.
  2. Remove the water pump pulley bolts.
  3. Remove the water pump pulley.
    4. Fig 3: Removing & Installing Water Pump
    GM946142Courtesy of GENERAL MOTORS CORP.
  4. Remove the water pump bolts.
  5. Remove the water pump from the front cover.
  6. Remove the water pump gasket.
