Tools Required

WARNING: This page is about a different variant/trim than selected.

J 25034-C  Pulley Remover

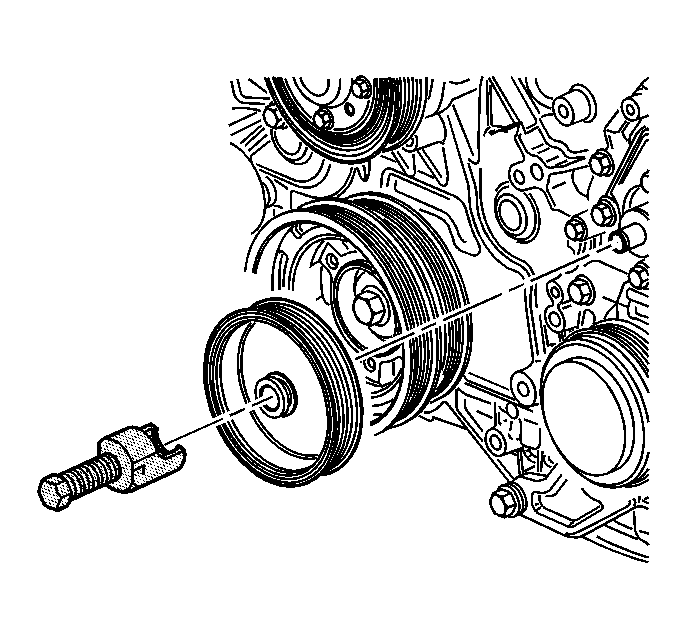

    Fig 1: Removing The Power Steering Pump Pulley Using J 25034-C
    GM945884Courtesy of GENERAL MOTORS CORP.
  1. Using the J 25034-C  remove the power steering pump pulley to access the power steering pump bolts.
    2. Fig 2: Removing & Installing Power Steering Pump
    GM945888Courtesy of GENERAL MOTORS CORP.
  2. Remove the power steering pump bolts.
  3. Remove the power steering pump.
