Generator Removal

WARNING: This page is about a different variant/trim than selected.

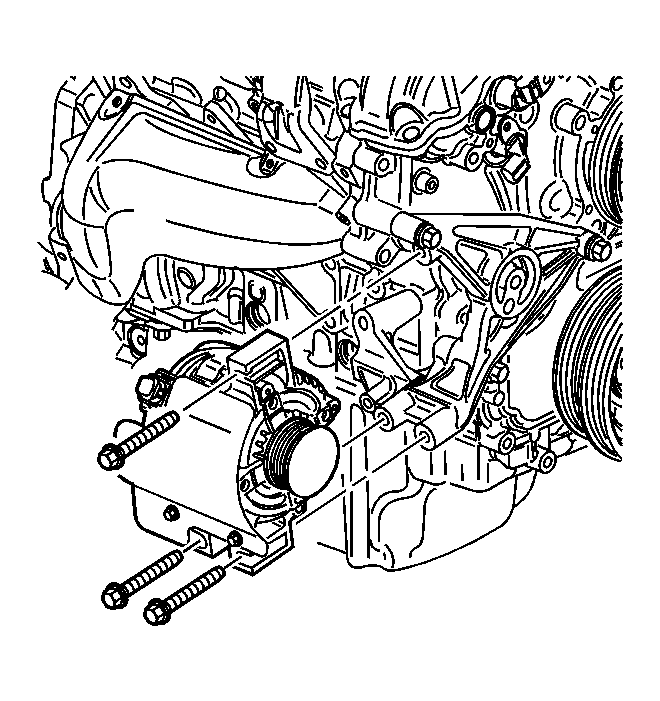

    Fig 1: Removing & Installing Generator
    GM945855Courtesy of GENERAL MOTORS CORP.
  1. Remove the generator bolts.
  2. Remove the generator.
    3. Fig 2: Removing & Installing Generator Bracket
    GM945862Courtesy of GENERAL MOTORS CORP.
  3. Remove the generator bracket bolts.
  4. Remove the generator bracket.
