Air Conditioning (A/C) Compressor Removal

WARNING: This page is about a different variant/trim than selected.

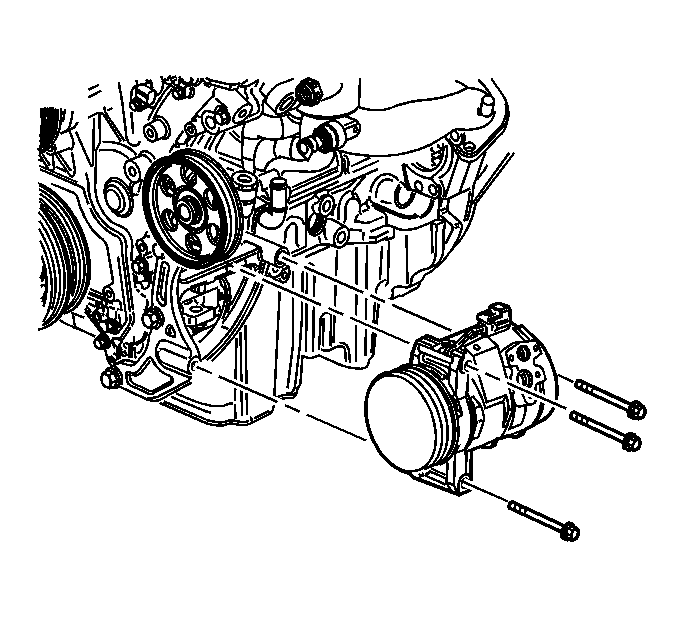

    Fig 1: Removing & Installing A/C Compressor
    GM945869Courtesy of GENERAL MOTORS CORP.
  1. Remove the air conditioning compressor bolts.
  2. Remove the air conditioning compressor.
    3. Fig 2: Removing & Installing Air Conditioning Compressor Bracket
    GM945879Courtesy of GENERAL MOTORS CORP.
  3. Remove the air conditioning compressor bracket bolts.
  4. Remove the air conditioning compressor bracket.
