Removal Procedure

WARNING: This page is about a different variant/trim than selected.

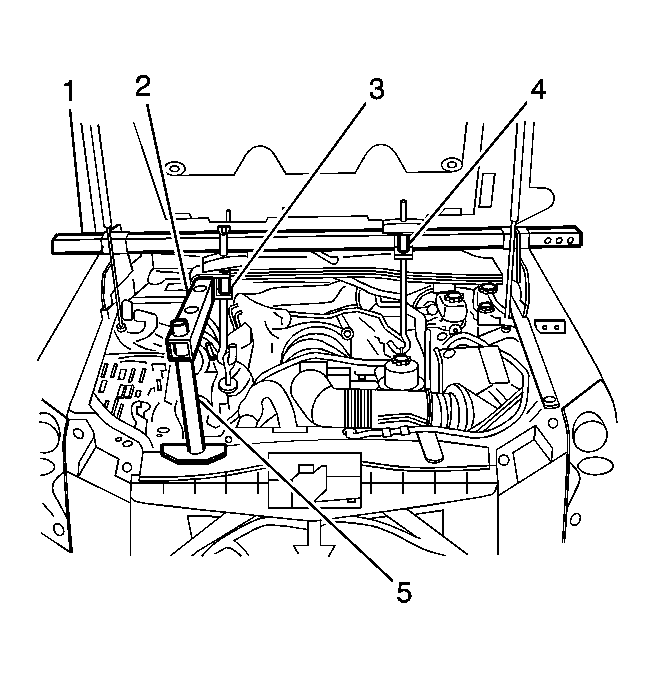

    Fig 1: Identifying Engine Support Fixture
    GM1409886Courtesy of GENERAL MOTORS CORP.
  1. Unscrew the lift hooks (3, 4) and remove them from the support hooks. Remove the lift hooks from the tube assemblies (1, 2).
  2. Remove the front tube and support assembly (2, 5) from the main support beam (1).
  3. Remove the main support beam assembly.
  4. Remove the support hooks from the cylinder heads.
  5. Install the coil assembly to the left cylinder head. Refer to Ignition Coil(s) Replacement in Engine Controls - 5.7L.
  6. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
