Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Disconnect the oil pressure sensor electrical connector (2).

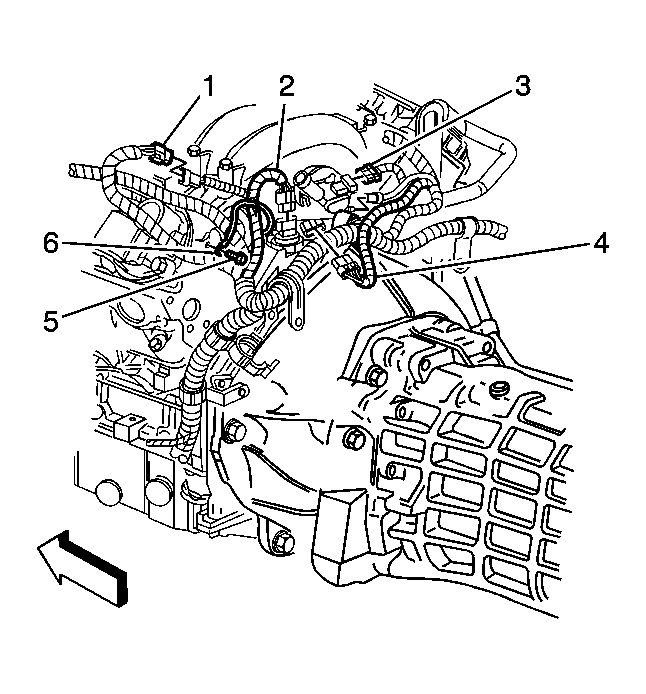

    Fig 1: Identifying Oil Pressure Sensor & Electrical Connectors
    GM1412498Courtesy of GENERAL MOTORS CORP.
    3. IMPORTANT: Clean the area around the sensor before removal. This avoids debris from entering the engine.
  3. Remove the oil pressure sensor from the engine block.
