Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Remove the starter. Refer to Starter Motor Replacement (LS6) in Engine Electrical.
  3. Install a screw jack with a block of wood under the oil pan for support.
    4. Fig 1: Identifying Engine Mount Bracket To Engine Retaining Bolts
    GM1398631Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount bracket to engine retaining bolts.

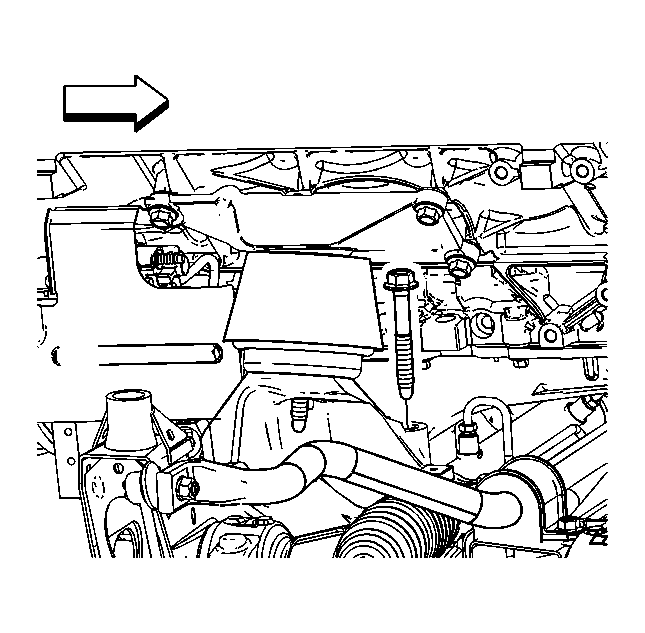

    5. Fig 2: View Of Lower Engine Mount Bracket Retaining Bolts
    GM1398633Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure not to distort or bend the engine mount heat shield.
  5. Remove the engine mount bracket to frame retaining bolts.
    6. Fig 3: Identifying Frame Mounting Nuts
    GM785352Courtesy of GENERAL MOTORS CORP.
  6. Remove lower engine mount bracket retaining nuts.
    7. Fig 4: Locating Frame Studs
    GM1398634Courtesy of GENERAL MOTORS CORP.
  7. Remove the right engine mount bracket to the frame stud.

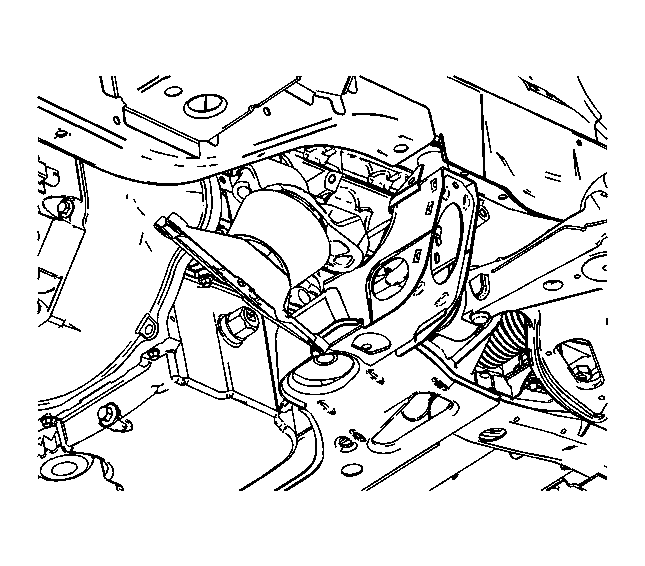

    8. Fig 5: Identifying Engine Mount Bracket Assembly
    GM1398659Courtesy of GENERAL MOTORS CORP.
  8. Remove the engine mount bracket assembly from the vehicle.
  9. Remove the engine mount from the engine mount brackets. Refer to Engine Mount Replacement - Right .
