Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the engine mount to the engine mount brackets. Refer to Engine Mount Replacement - Left .

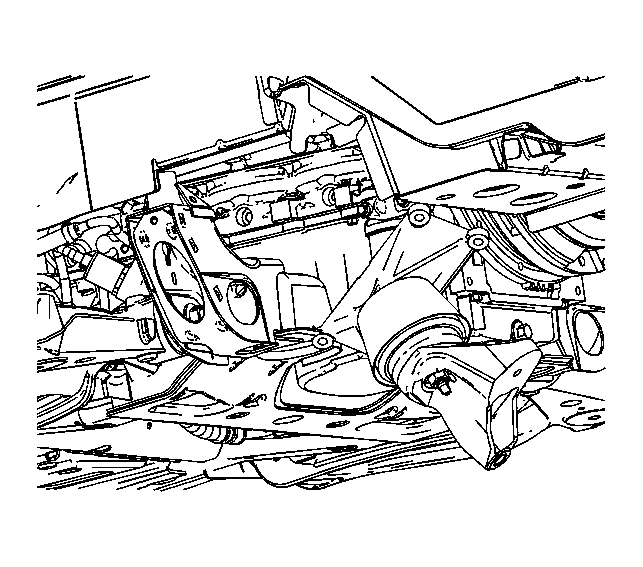

    2. Fig 1: Locating Left Engine Mount Bracket Assembly
    GM1398650Courtesy of GENERAL MOTORS CORP.
  2. Install the left engine mount bracket assembly to the vehicle.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.

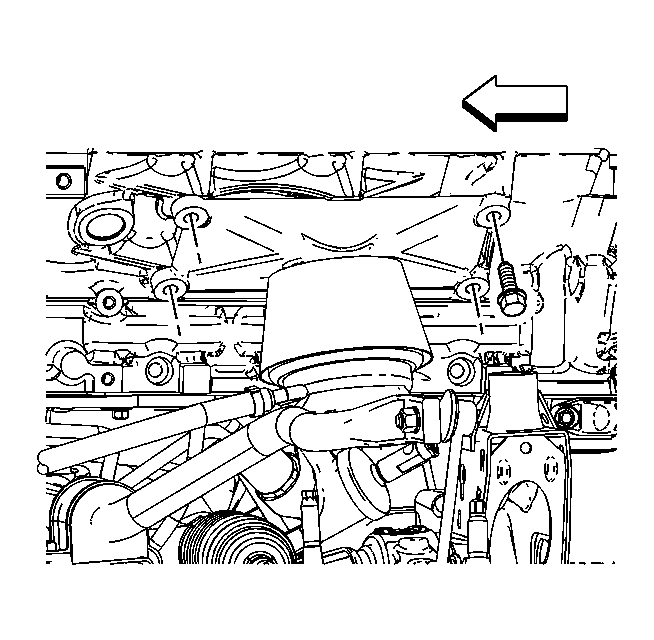

    Fig 2: View Of Left Engine Mount Bracket To Engine Retaining Bolts
    GM1398628Courtesy of GENERAL MOTORS CORP.
  3. Install the left engine mount bracket to engine retaining bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

    4. Fig 3: Locating Frame Studs
    GM1398634Courtesy of GENERAL MOTORS CORP.
  4. Install the left engine mount bracket to the frame stud.

    Tighten:  Tighten the stud to 25 N.m (19 lb ft).

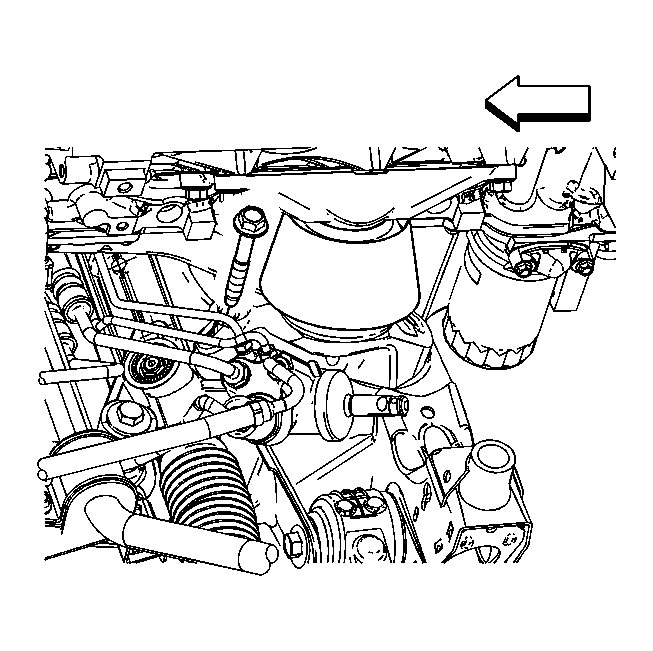

    5. Fig 4: View Of Lower Engine Mount Bracket Retaining Bolts
    GM1398629Courtesy of GENERAL MOTORS CORP.
  5. Install the lower engine mount bracket retaining bolts.

    Tighten:  Tighten the nut to 80 N.m (59 lb ft).

    6. Fig 5: Identifying Frame Mounting Nuts
    GM785352Courtesy of GENERAL MOTORS CORP.
  6. Install the lower engine mount bracket retaining nut.

    Tighten:  Tighten the nut to 80 N.m (59 lb ft).

  7. Remove the screw jack.
  8. Lower the vehicle.
