Installation Procedure

WARNING: This page is about a different variant/trim than selected.
IMPORTANT: For manual transmission applications, note the position and direction of the engine flywheel before removal. The flywheel does not use a locating pin for alignment. Mark or scribe the end of the crankshaft and the flywheel before component removal. The engine flywheel must be reinstalled to the original position and direction. The engine flywheel will not initially seat against the crankshaft flange, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a 3-stage tightening process.

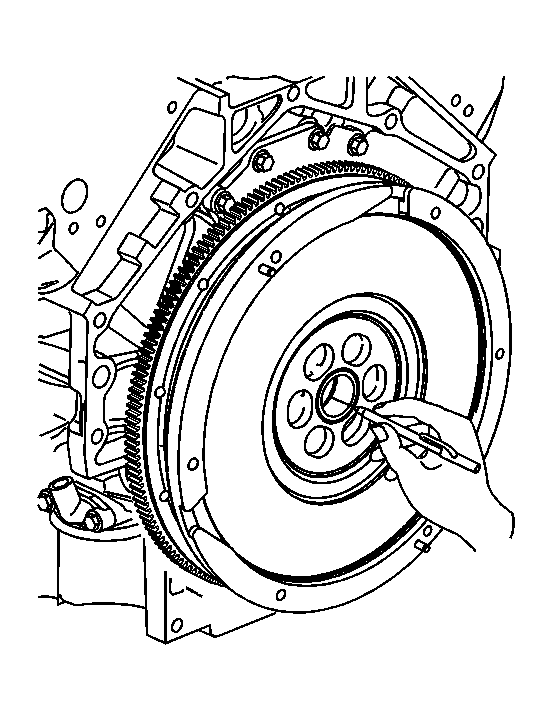

    Fig 1: Scribing End Of Crankshaft
    GM1199287Courtesy of GENERAL MOTORS CORP.
  1. Align the mark or scribe on the crankshaft with the mark or scribe on the existing flywheel.
  2. If installing a new flywheel, refer to Engine Balancing .

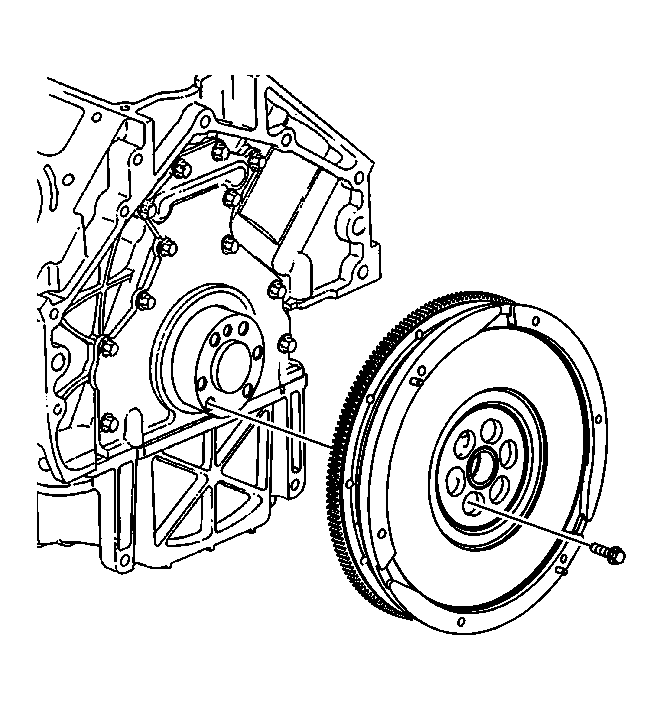

    3. Fig 2: View Of Manual Transmission Engine Flywheel
    GM1199288Courtesy of GENERAL MOTORS CORP.
  3. Install the engine flywheel. Refer to Engine Flywheel Installation .

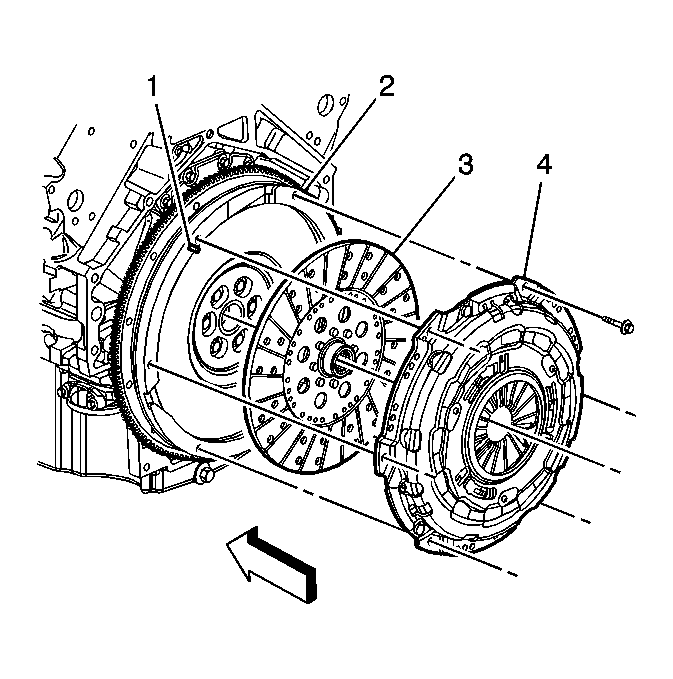

    4. Fig 3: Expanded View Of Clutch Assembly
    GM1430042Courtesy of GENERAL MOTORS CORP.
  4. Install the clutch assembly (3, 4). Refer to Clutch Assembly Replacement (CTS) or Clutch Assembly Replacement (CTS-V) in Clutch.
  5. Install the transmission. Refer to Transmission Replacement in Manual Transmission - Tremec 6-Speed.
