Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: Refer to Fastener Notice in Cautions and Notices.

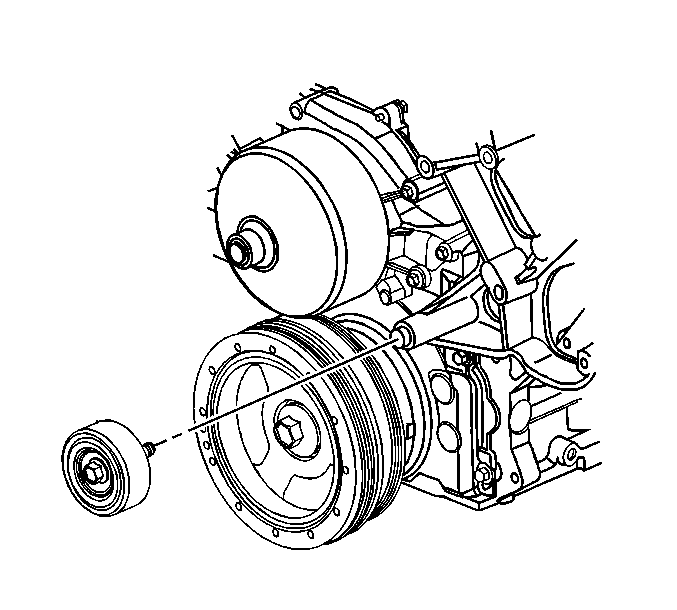

    Fig 1: Locating Accessory Drive Belt Idler Pulley & Bolt
    GM651862Courtesy of GENERAL MOTORS CORP.
  1. Install the accessory drive belt idler pulley and bolt.

    Tighten:  Tighten the accessory drive belt idler pulley bolt to 50 N.m (37 lb ft).

  2. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
