Exhaust Manifold Removal - Right

WARNING: This page is about a different variant/trim than selected.
  1. Remove the spark plug wires from the spark plugs.

    Do not remove the spark plug wires from the ignition coils unless required.

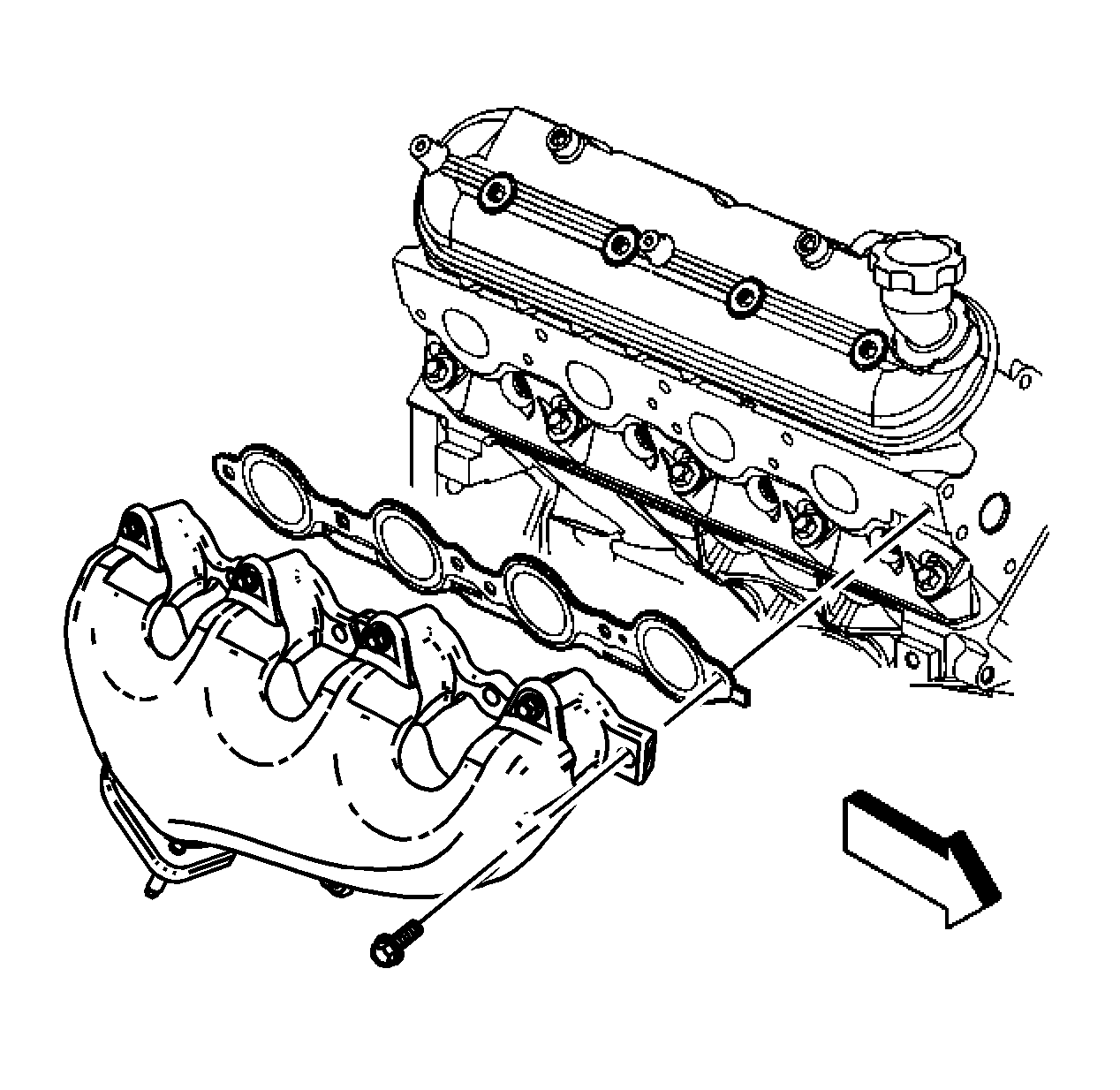

    2. Fig 1: Identifying Right Exhaust Manifold, Gasket & Bolts
    GM1199293Courtesy of GENERAL MOTORS CORP.
  2. Remove the exhaust manifold, bolts, and gasket.
  3. Discard the gasket.

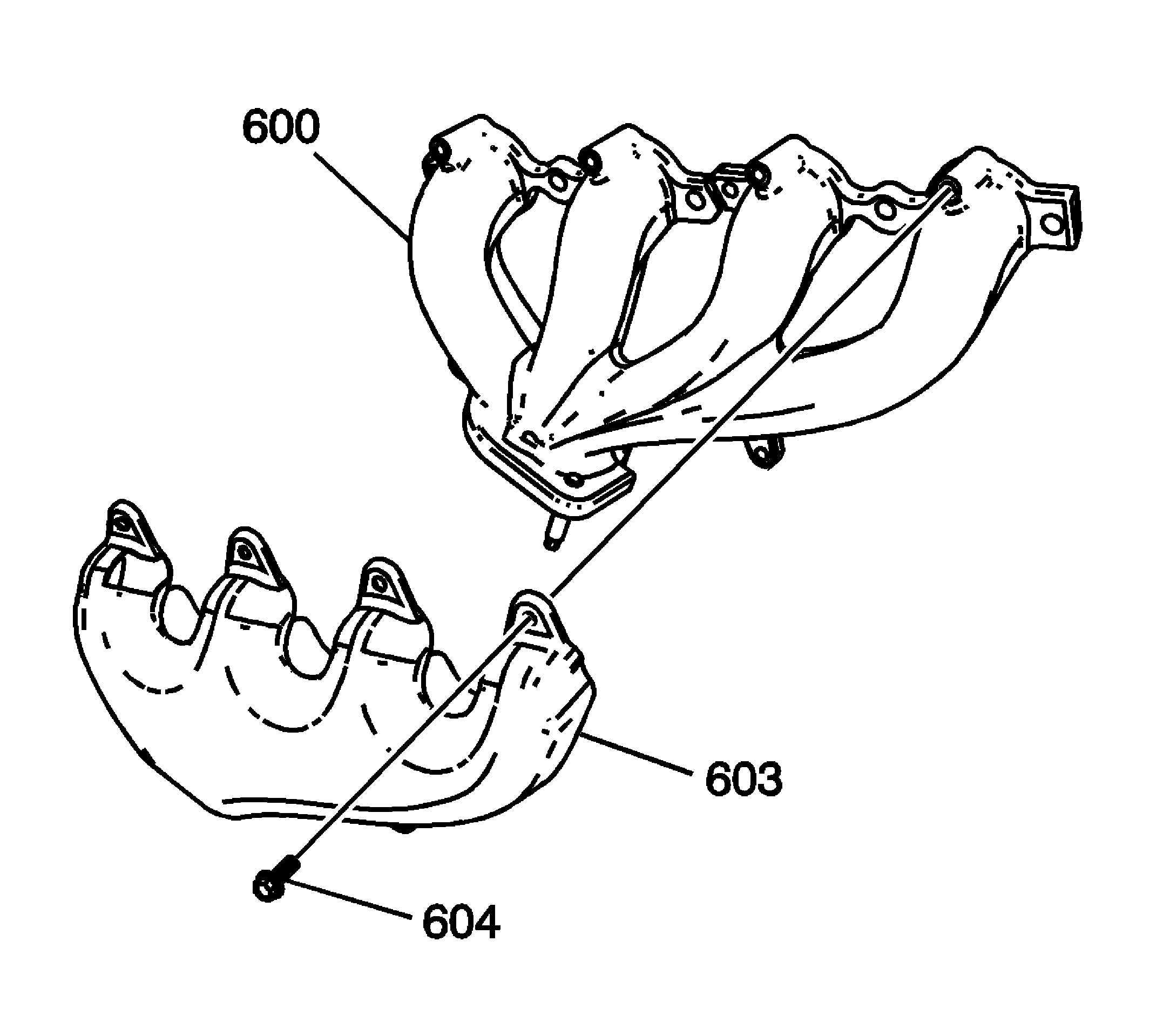

    4. Fig 2: View Of Heat Shield & Retaining Bolts
    GM1199294Courtesy of GENERAL MOTORS CORP.
  4. Remove the heat shield (603) and bolts (604) from the manifold (600), if required.
