Exhaust Manifold Installation - Left

WARNING: This page is about a different variant/trim than selected.

IMPORTANT:

Tighten the exhaust manifold bolts as specified in the service procedure. Improperly installed and/or leaking exhaust manifold gaskets may effect vehicle emissions and/or On-Board Diagnostic (OBD) II system performance.
The cylinder head exhaust manifold bolt hole threads must be clean and free of debris or threadlocking material.

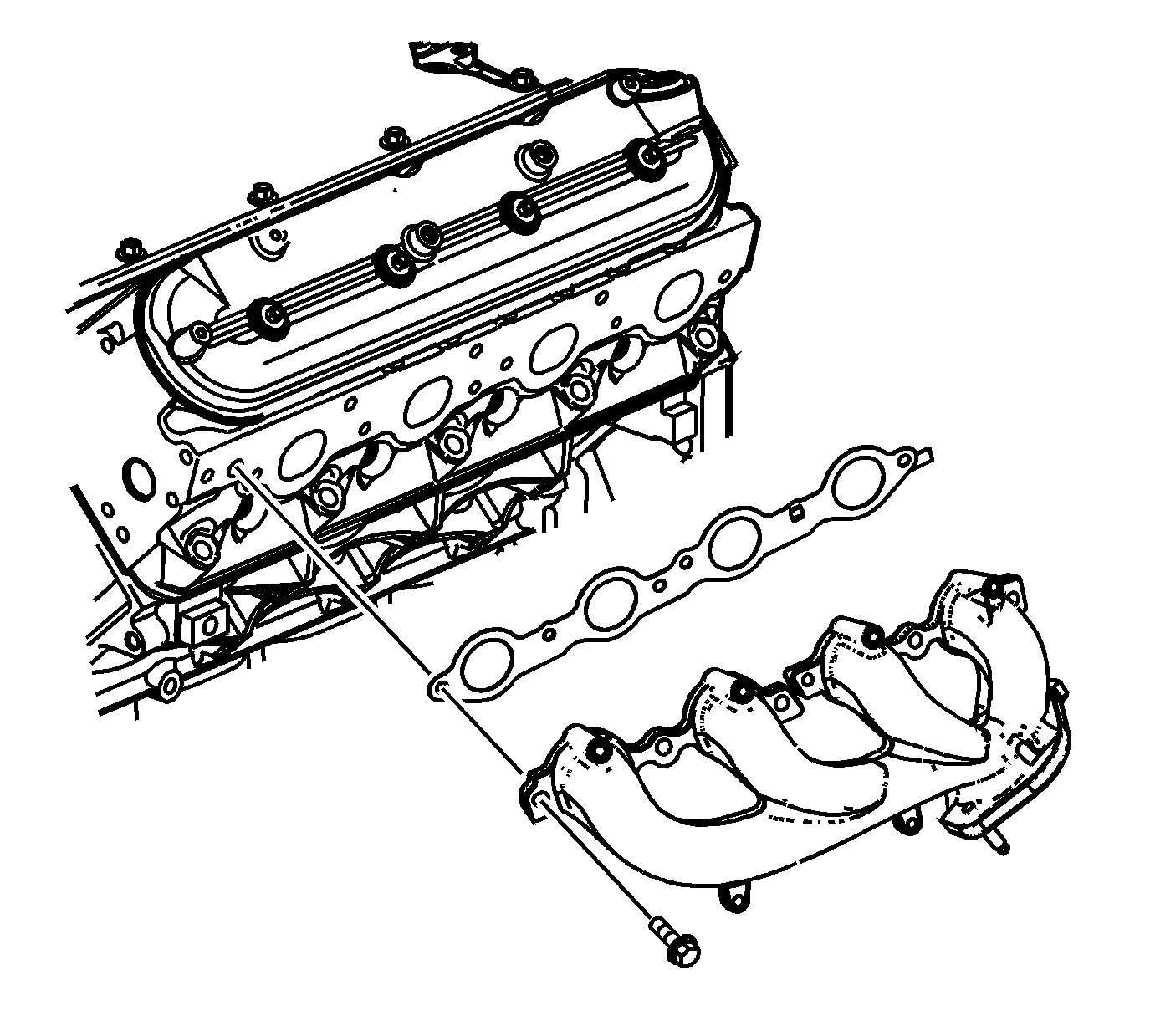

Fig 1: View Of Left Exhaust Manifold, Gasket & Bolts

Courtesy of GENERAL MOTORS CORP.

Apply a 5 mm (0.2 in) wide band of threadlock GM P/N 12345493 (Canadian P/N 10953488) or equivalent to the threads of the exhaust manifold bolts.
Refer to Sealers, Adhesives, and Lubricants .
Install the exhaust manifold and NEW exhaust manifold gasket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the exhaust manifold bolts.
Tighten:
1. Tighten the exhaust manifold bolts a first pass to 15 N.m (12 lb ft). Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
2. Tighten the exhaust manifold bolts a final pass to 25 N.m (18 lb ft). Tighten the exhaust manifold bolts beginning with the center two bolts. Alternate from side-to-side, and work toward the outside bolts.
Using a flat punch, bend over the exposed edge of the exhaust manifold gasket at the rear of the left cylinder head.

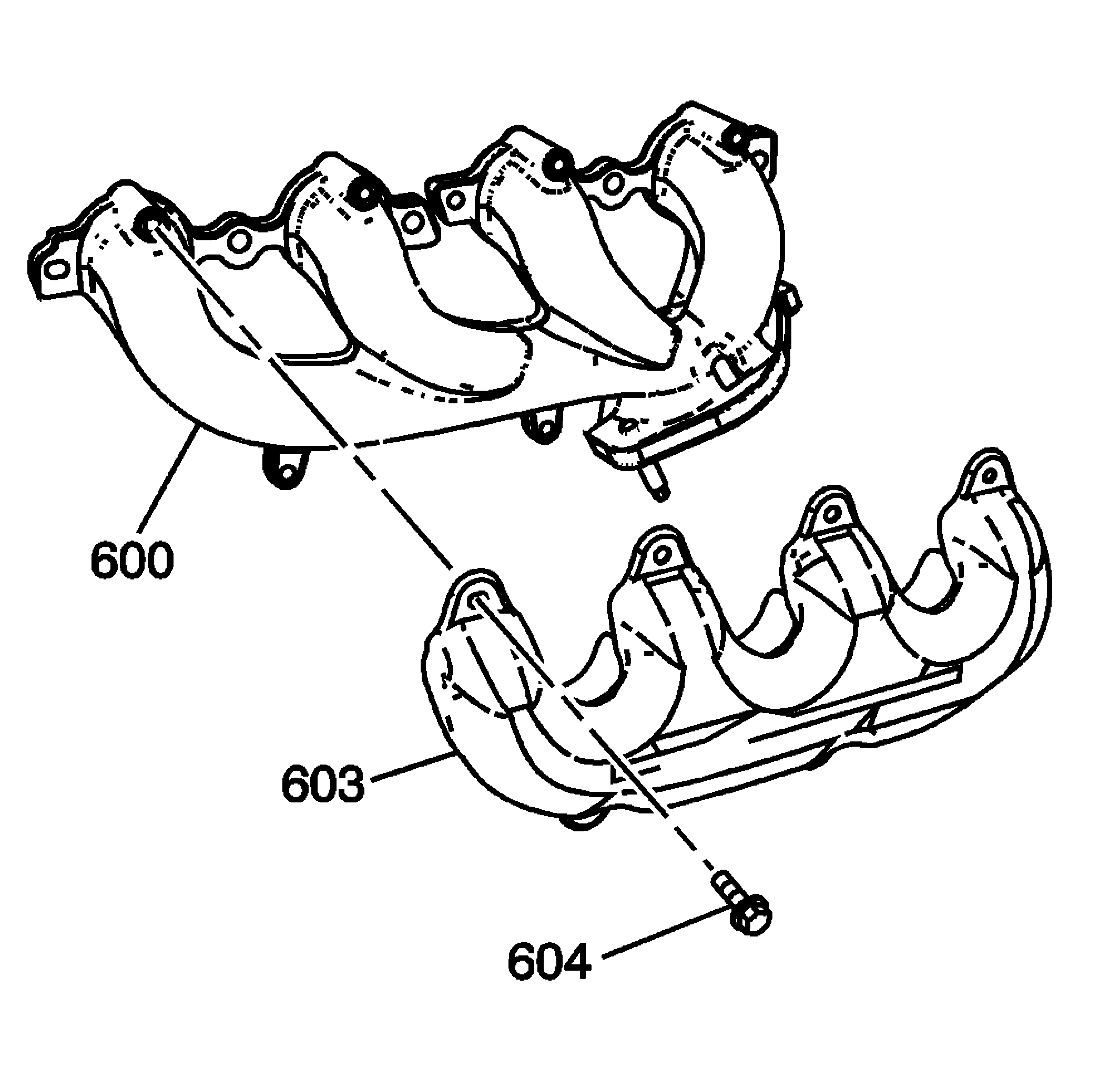

Fig 2: View Of Exhaust Manifold, Heat Shield & Mounting Bolts

Courtesy of GENERAL MOTORS CORP.

Install the heat shield (603) and bolts (604).
Tighten: Tighten the heat shield bolts to 9 N.m (80 lb in).
