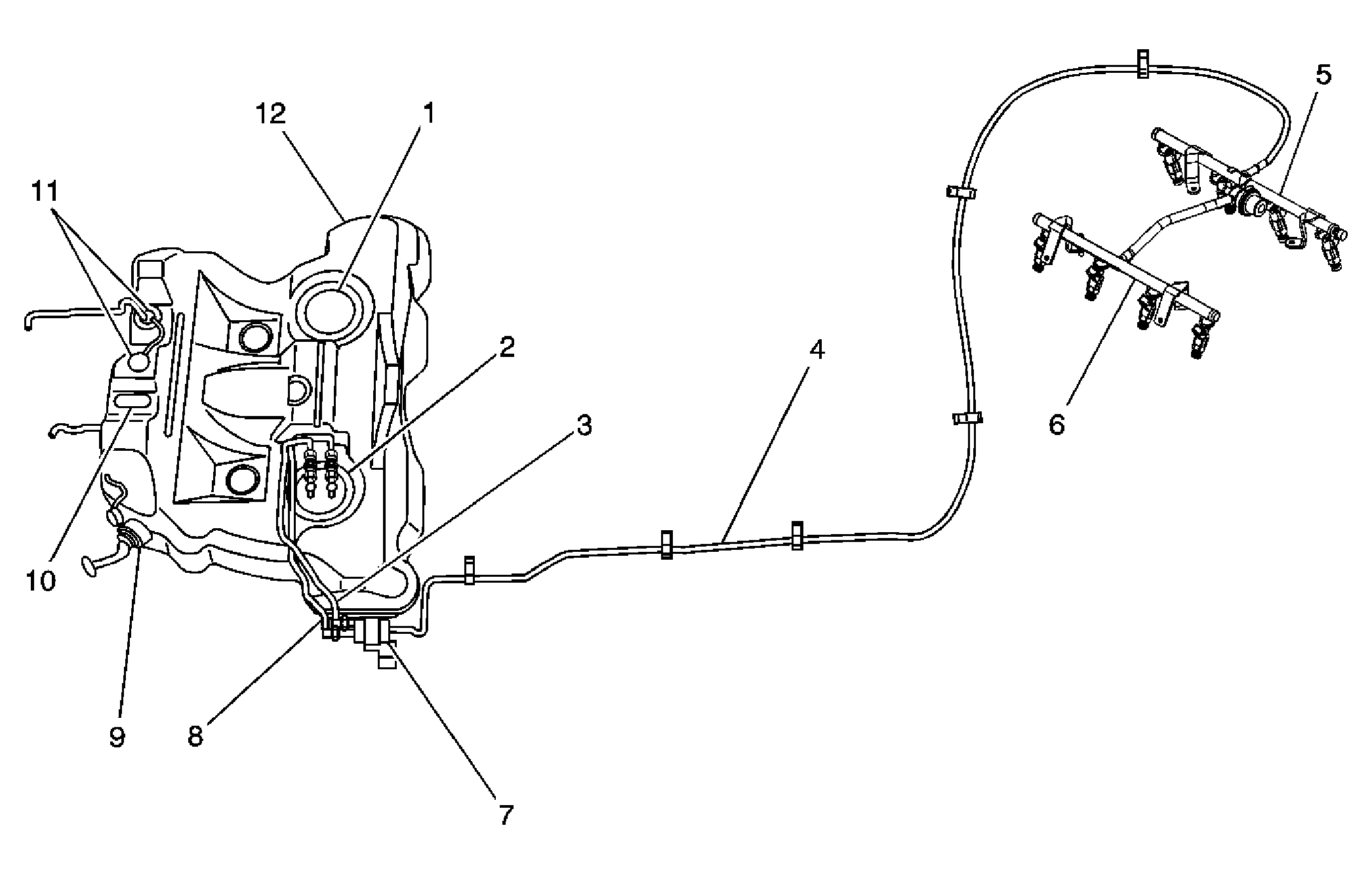

Fuel Hose/Pipes Routing Diagram
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Jet Pump and Fuel Sender Assembly |
| 2 | Fuel Pump and Fuel Sender Assembly |
| 3 | Fuel Feed Hose |
| 4 | Fuel Feed Pipe |
| 5 | Fuel Pulse Dampener |
| 6 | Fuel Rail and Injectors |
| 7 | Fuel Filter |
| 8 | Fuel Return Hose |
| 9 | Fuel Filler Tube |
| 10 | Fuel Tank Pressure (FTP) Sensor |
| 11 | Fuel Level Vent Valve (FLVV) |
| 12 | Fuel Tank |
