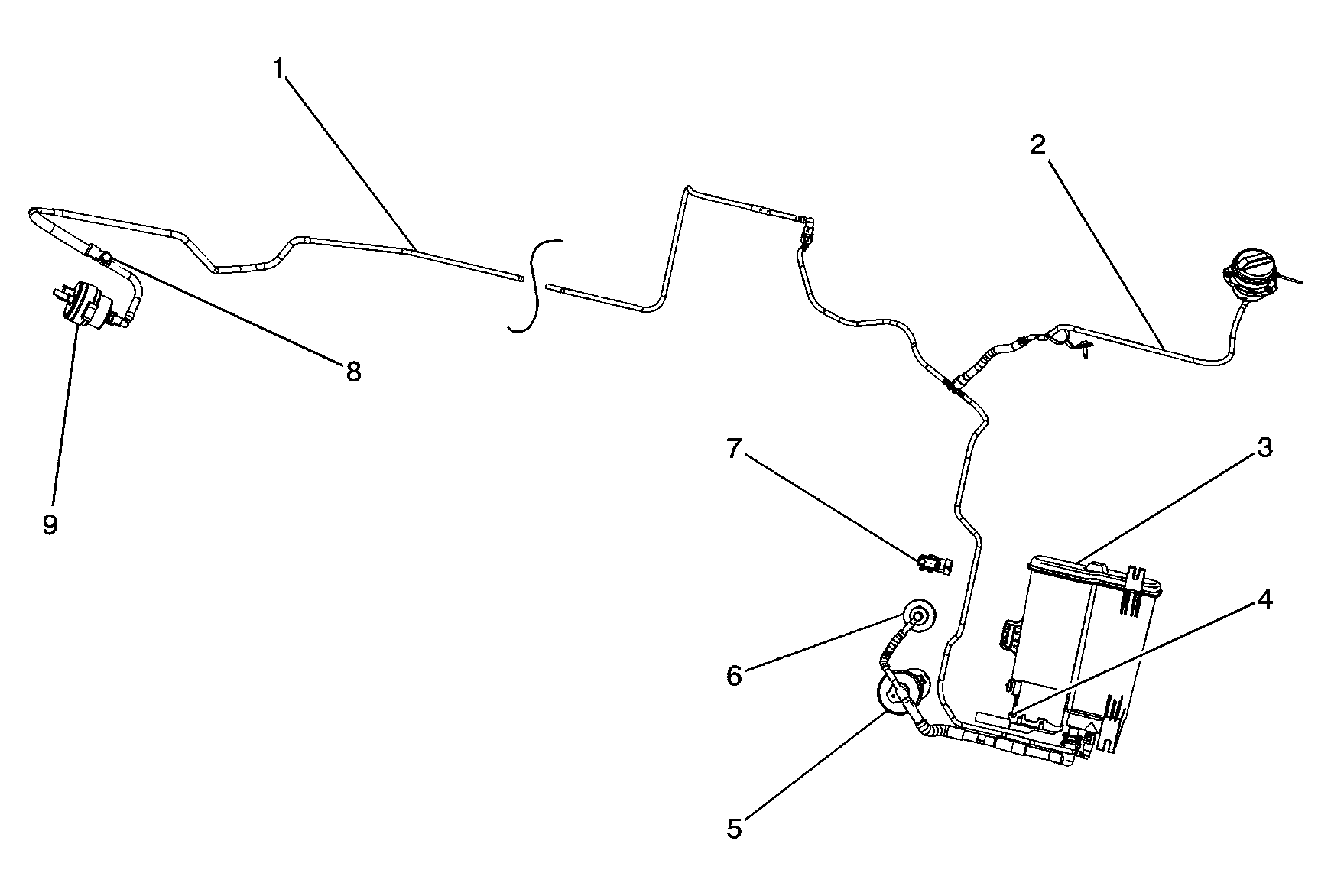

Evaporative Emissions (EVAP) Hose Routing Diagram
WARNING: This page is about a different variant/trim than selected.
| Callout | Component Name |
|---|---|
| 1 | Evaporative Emission (EVAP) Purge Hose/Pipe |
| 2 | Fuel Filler Pipe Vapor Recirculation Hose |
| 3 | EVAP Purge Canister |
| 4 | EVAP Vent Valve |
| 5 | Fill Limit Vent Valve (FLVV) |
| 6 | Fuel Tank Vent/Rollover Valve |
| 7 | Fuel Tank Pressure (FTP) Sensor |
| 8 | EVAP Service Port Connection |
| 9 | EVAP Purge Solenoid |
