Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition OFF.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. Remove the wiring harness heat shield from the oil level indicator tube to gain access.

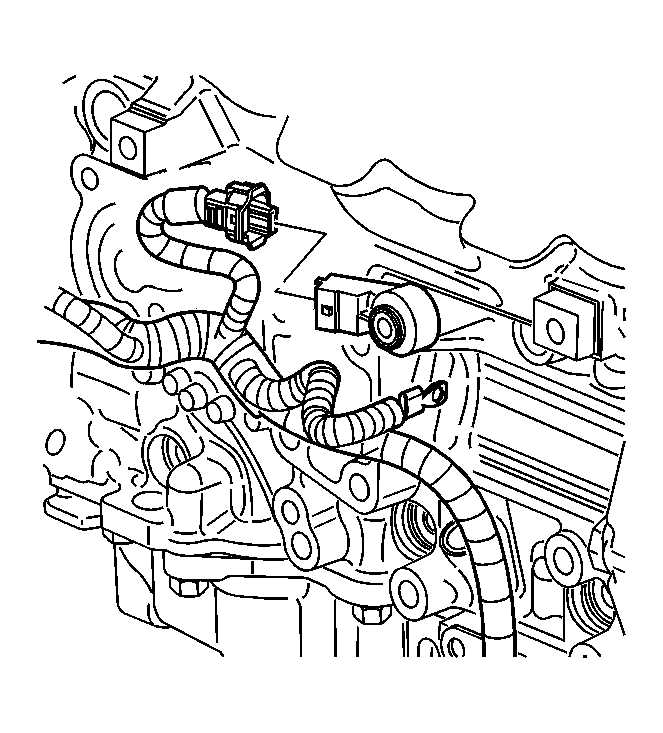

    4. Fig 1: View Of Left Knock Sensor And Electrical Connector
    GM945380Courtesy of GENERAL MOTORS CORP.
  4. Remove the knock sensor (KS) electrical connector.
    5. Fig 2: View Of Left Knock Sensor
    GM860802Courtesy of GENERAL MOTORS CORP.
  5. Remove the KS bolt.
  6. Remove the KS.
