Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the rear frame. Refer to Frame Replacement - Rear in Frame and Underbody.

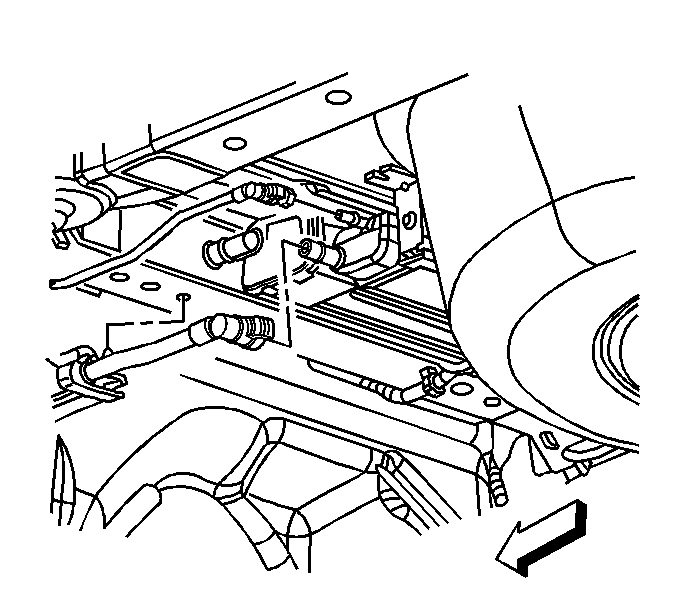

    2. Fig 1: Identifying EVAP Hoses At EVAP Canister
    GM785817Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the evaporative emission (EVAP) hoses from the EVAP canister.
  3. Disconnect the electrical connector from the EVAP canister.

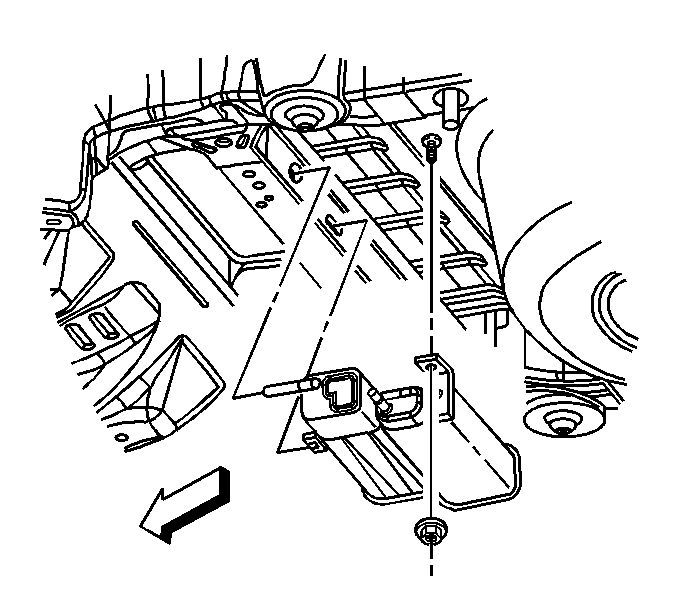

    4. Fig 2: View Of EVAP Canister Retaining Nuts
    GM785820Courtesy of GENERAL MOTORS CORP.
  4. Remove the EVAP canister retaining nuts.
  5. Complete the following in order to remove the EVAP canister:
    1. Lower the rear of the canister enough to clear the 2 weld studs.
    2. Slide the canister rearward from the body brace.
