Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition OFF.
    2. IMPORTANT: Do not disconnect the power steering fluid lines/hoses from the reservoir.
  2. Remove the power steering fluid reservoir bolts and reposition the power steering fluid reservoir in order to provide access. Refer to Remote Power Steering Fluid Reservoir Replacement (LY7) , Remote Power Steering Fluid Reservoir Replacement (LA3/LY9) or Remote Power Steering Fluid Reservoir Replacement (5.7L) in Power Steering System.

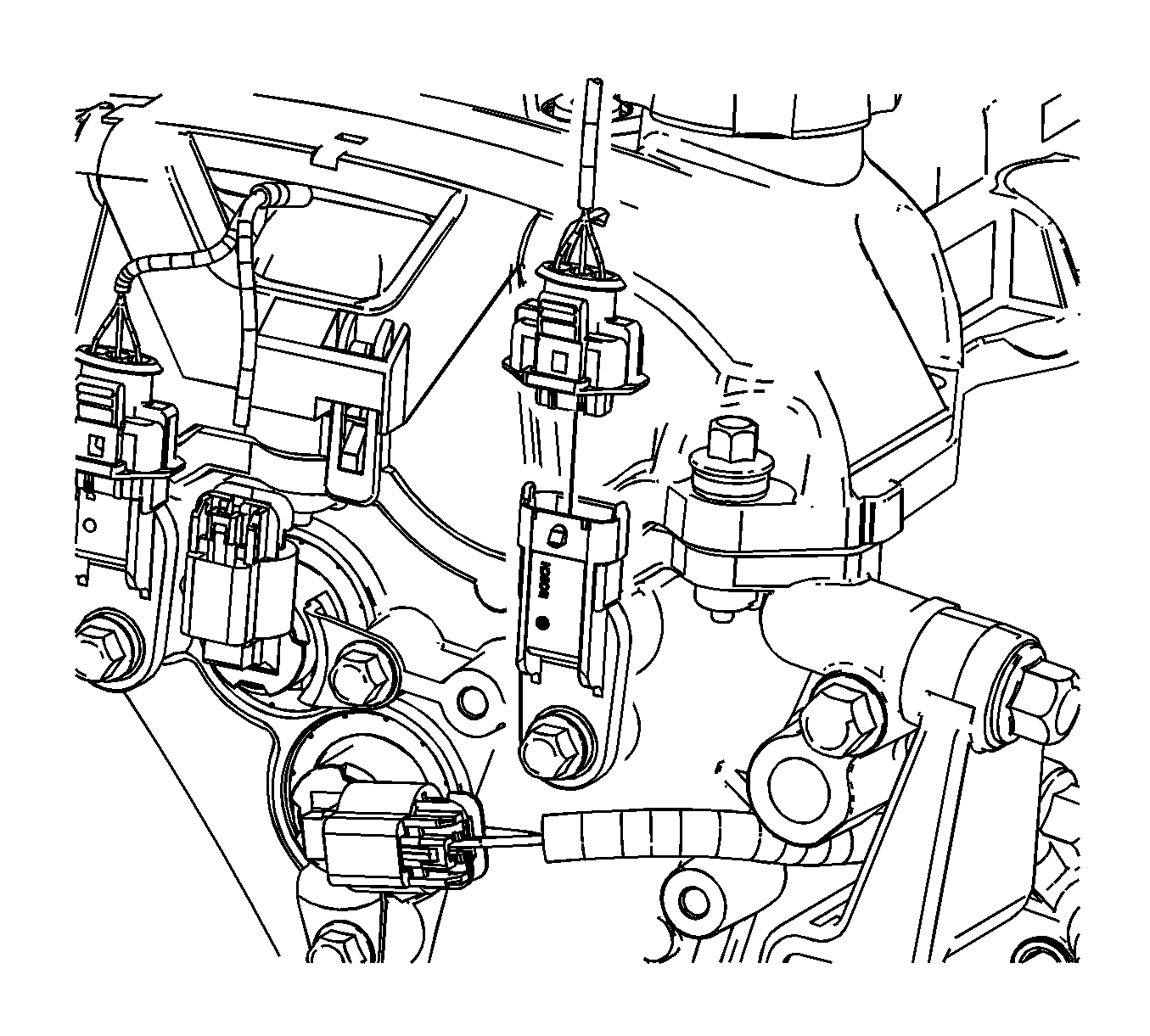

    3. Fig 1: Removing Camshaft Position (CMP) Sensor Electrical Connector
    GM1285242Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft position (CMP) sensor electrical connector.
    4. Fig 2: Removing CMP Sensor Bolt
    GM1285243Courtesy of GENERAL MOTORS CORP.
  4. Remove the CMP sensor bolt.
  5. Remove the CMP sensor.
