Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing CMP Sensor
    GM1285251Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CMP sensor bolt.

    Tighten:  Tighten the CMP sensor bolt to 10 N.m (89 lb in).

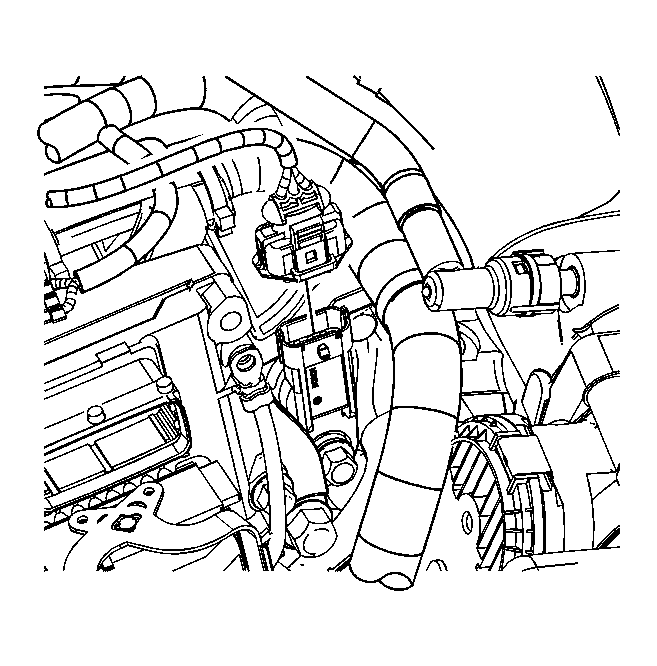

    3. Fig 2: Installing CMP Sensor Electrical Connector
    GM1285245Courtesy of GENERAL MOTORS CORP.
  3. Install the CMP sensor electrical connector.
