Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Turn the ignition OFF.
    2. IMPORTANT: Do not disconnect the power steering fluid lines/hoses from the reservoir.
  2. Remove the power steering fluid reservoir bolts and reposition the power steering fluid reservoir in order to provide access. Refer to Remote Power Steering Fluid Reservoir Replacement (LY7) , Remote Power Steering Fluid Reservoir Replacement (LA3/LY9) or Remote Power Steering Fluid Reservoir Replacement (5.7L) in Power Steering System.

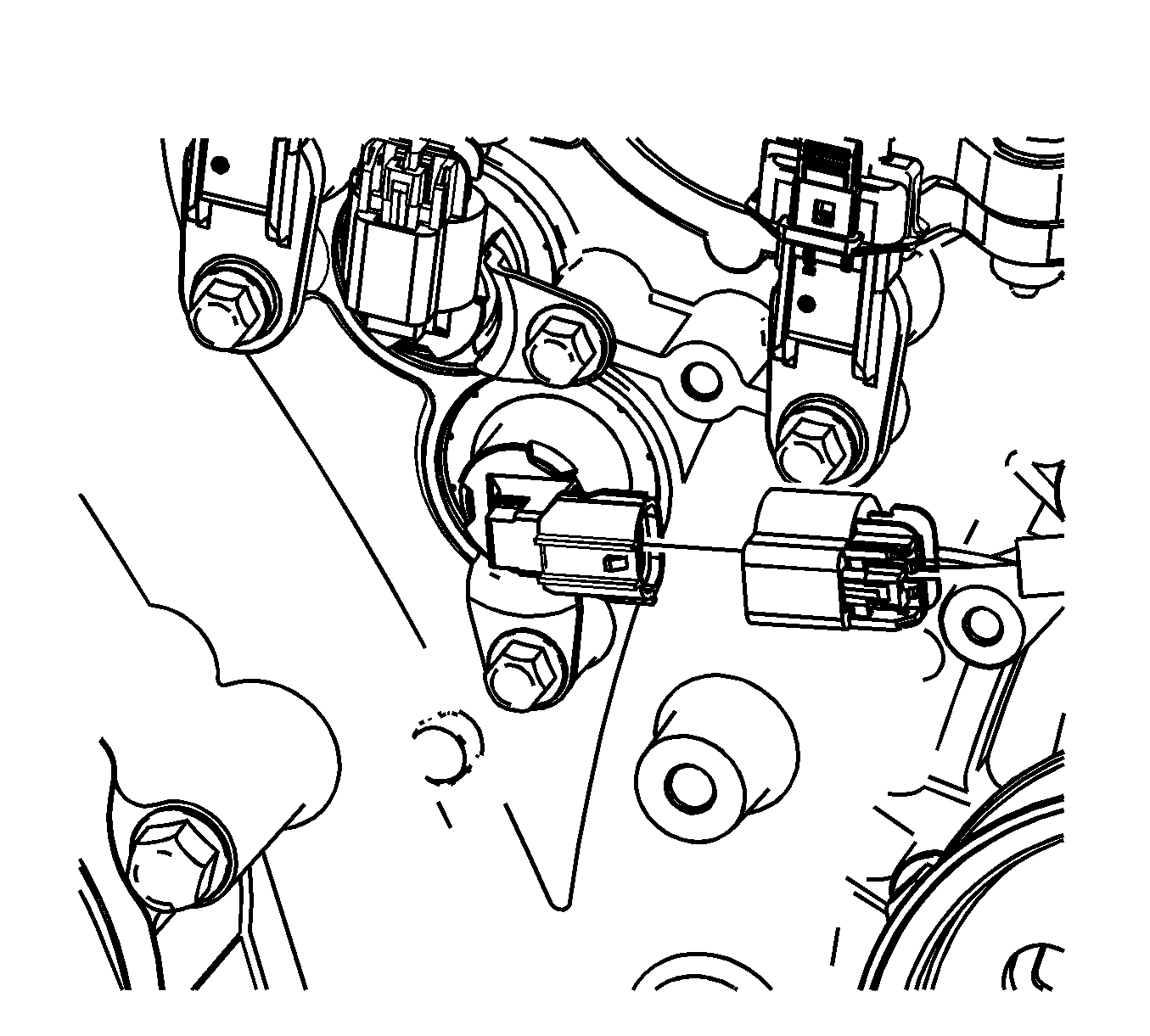

    3. Fig 1: Removing Camshaft Position (CMP) Actuator Valve Electrical Connector
    GM1285203Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshaft position (CMP) actuator valve electrical connector.
    4. Fig 2: Removing CMP Actuator Valve Bolt
    GM1285231Courtesy of GENERAL MOTORS CORP.
  4. Remove the CMP actuator valve bolt.
  5. Remove the CMP actuator valve.
