Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing CMP Actuator Valve
    GM1285237Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP actuator valve.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CMP actuator valve bolt.

    Tighten:  Tighten the CMP actuator valve bolt to 10 N.m (89 lb in).

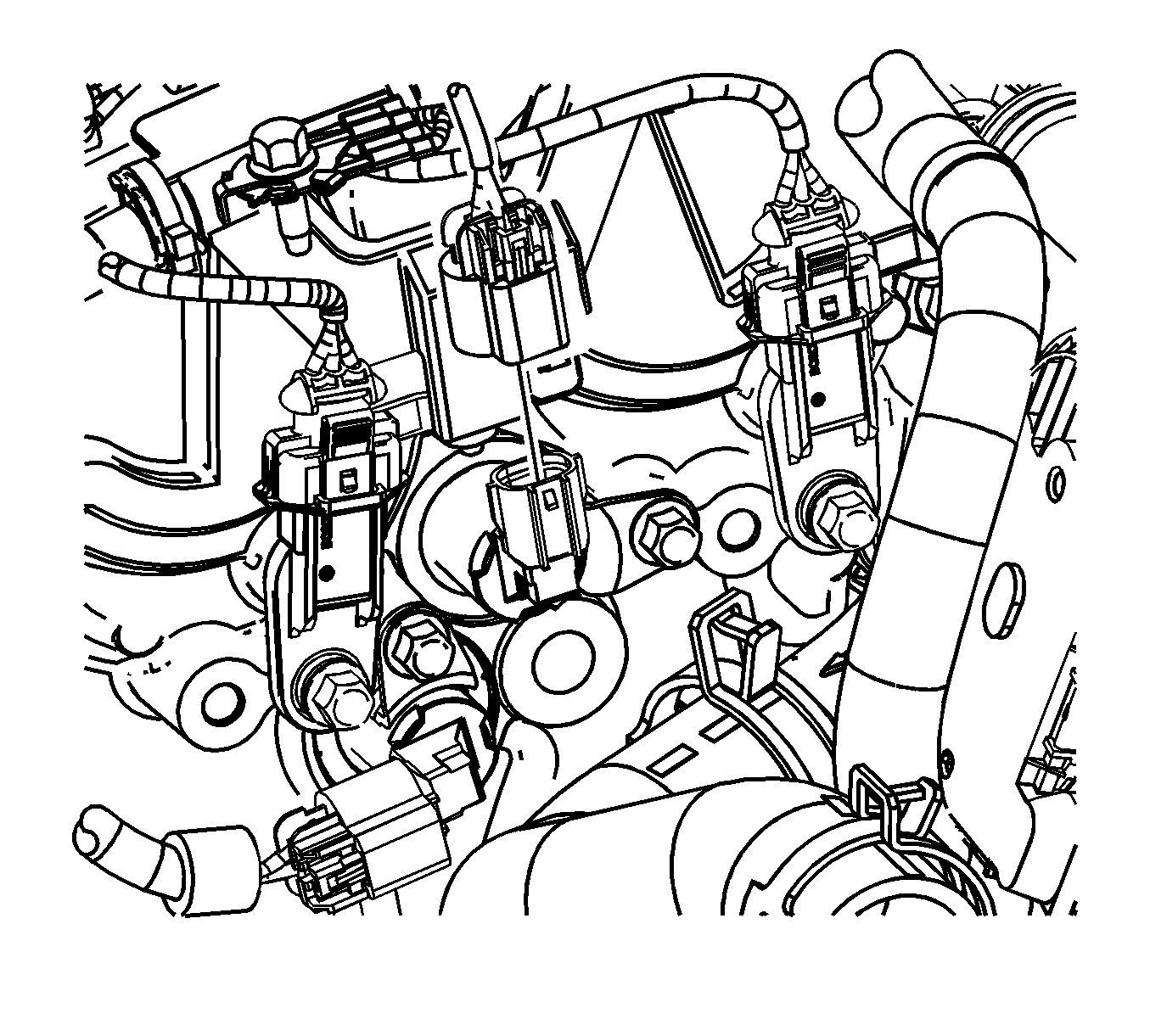

    3. Fig 2: Installing CMP Actuator Valve Electrical Connector
    GM1285235Courtesy of GENERAL MOTORS CORP.
  3. Install the CMP actuator valve electrical connector.
  4. Install the ECM bracket with the ECM. Refer to Engine Control Module (ECM) Replacement .
