Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing CMP Actuator Valve
    GM1285202Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP actuator valve.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the CMP actuator valve bolt.

    Tighten:  Tighten the CMP actuator valve bolt to 10 N.m (89 lb in).

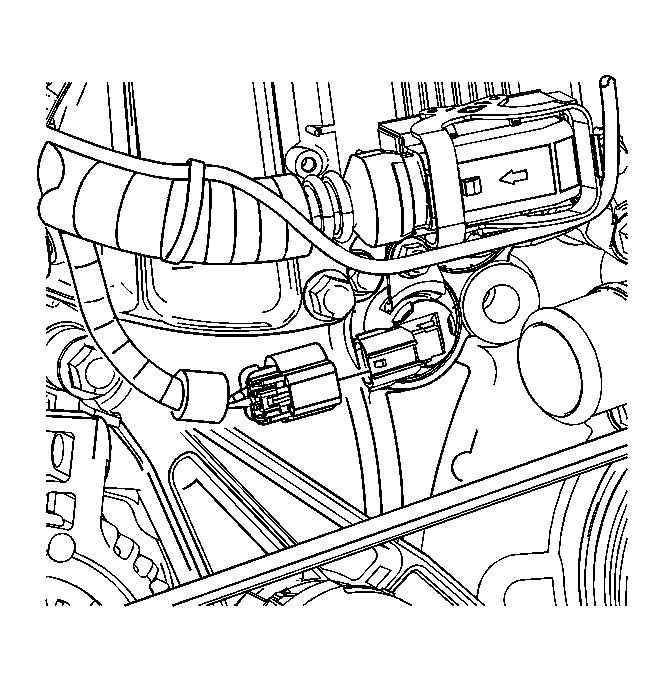

    3. Fig 2: Installing CMP Valve Electrical Connector
    GM1285201Courtesy of GENERAL MOTORS CORP.
  3. Install the CMP valve electrical connector.
