Drive Belt Tensioner Installation - Right

WARNING: This page is about a different variant/trim than selected.

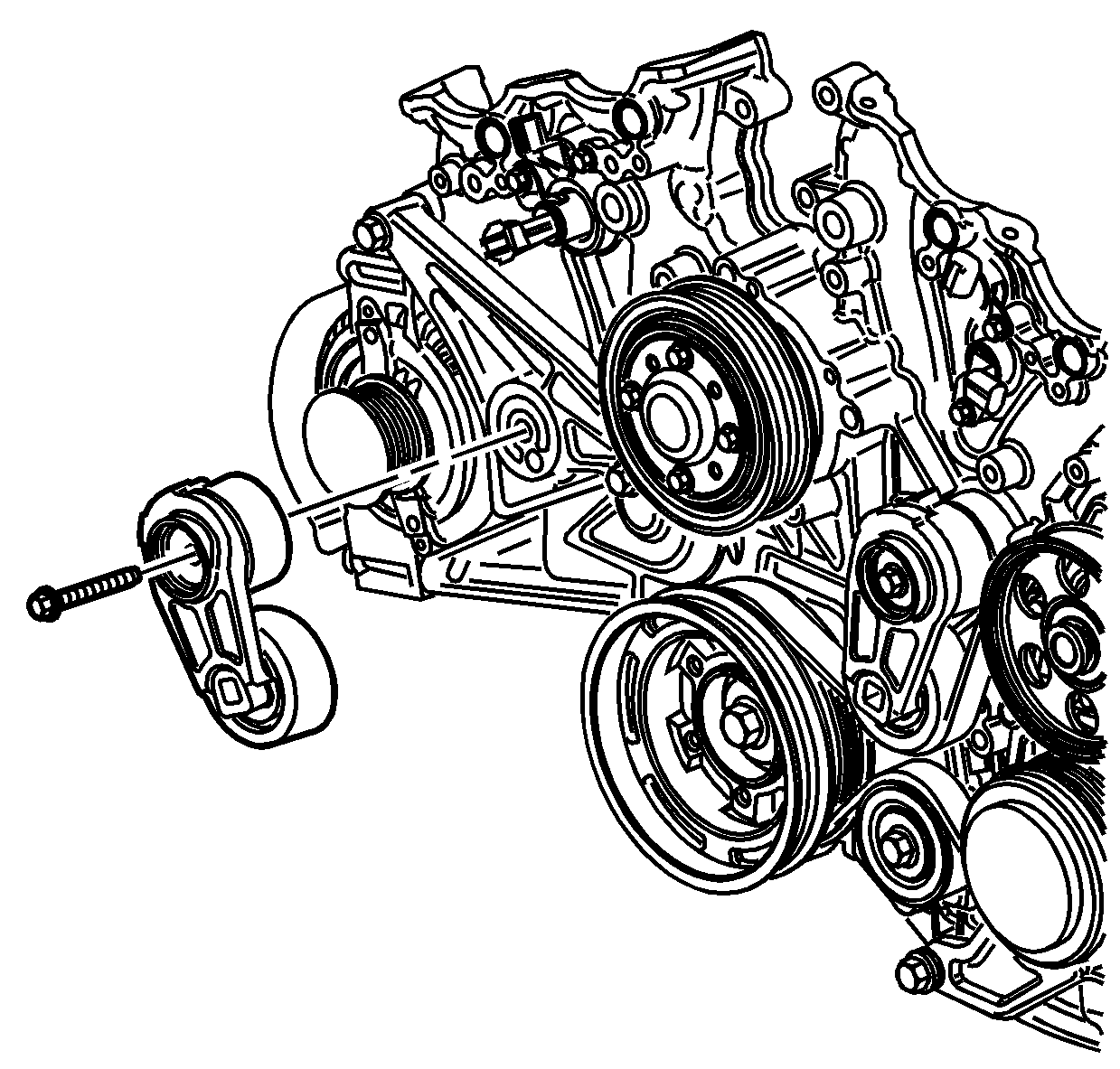

    Fig 1: Locating Right Drive Belt Tensioner
    GM945834Courtesy of GENERAL MOTORS CORP.
  1. Place the right drive belt tensioner in position to the engine front cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the right drive belt tensioner bolt.

    Tighten:  Tighten the right drive belt tensioner bolt to 23 N.m (17 lb ft).
