Drive Belt Tensioner Installation - Left

WARNING: This page is about a different variant/trim than selected.

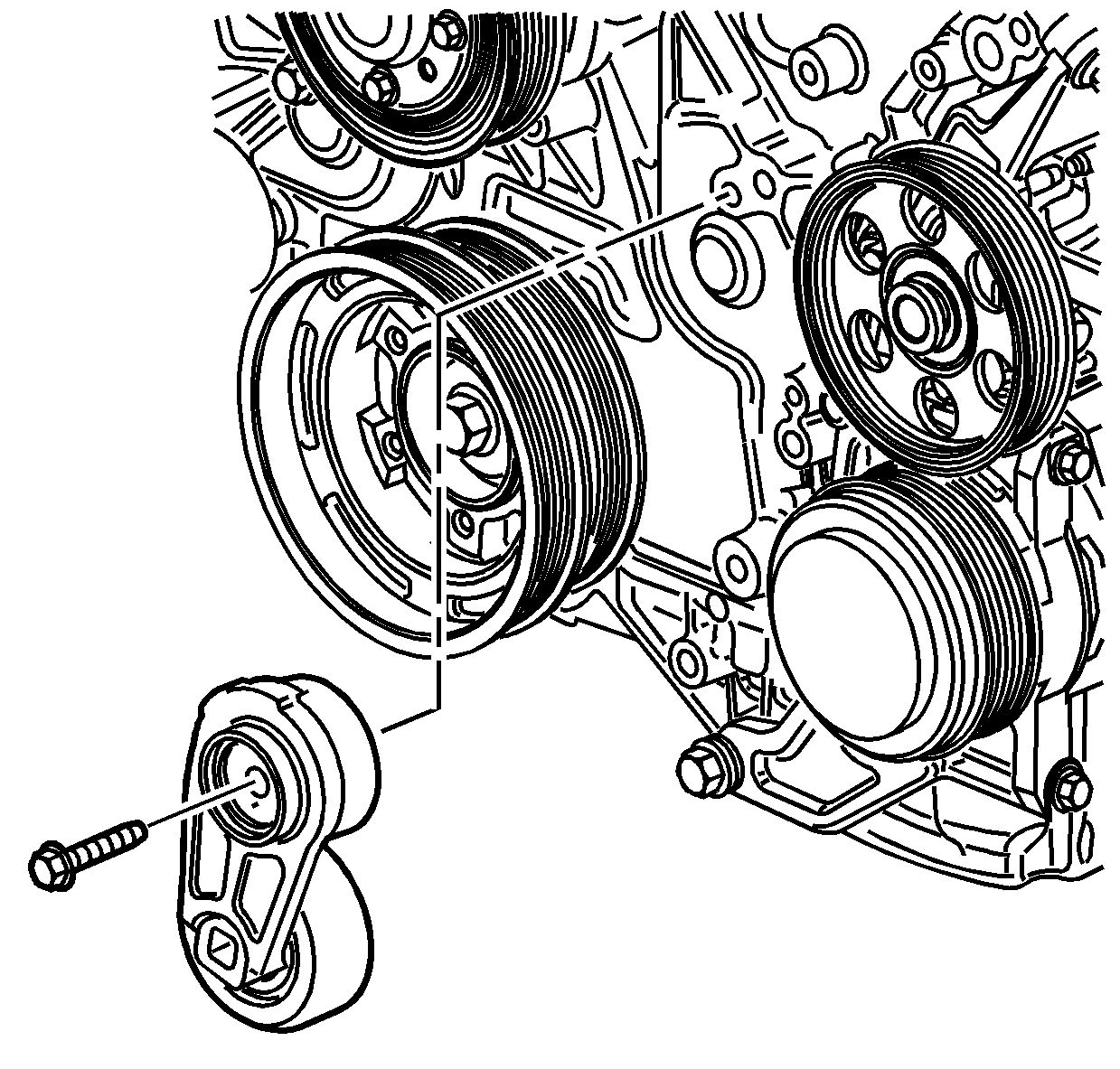

    Fig 1: View Of Left Drive Belt Tensioner
    GM945826Courtesy of GENERAL MOTORS CORP.
  1. Place the left drive belt tensioner in position to the engine front cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the left drive belt tensioner bolt.

    Tighten:  Tighten the left drive belt tensioner bolt to 50 N.m (37 lb ft).
