Drive Belt Idler Pulley Installation

WARNING: This page is about a different variant/trim than selected.

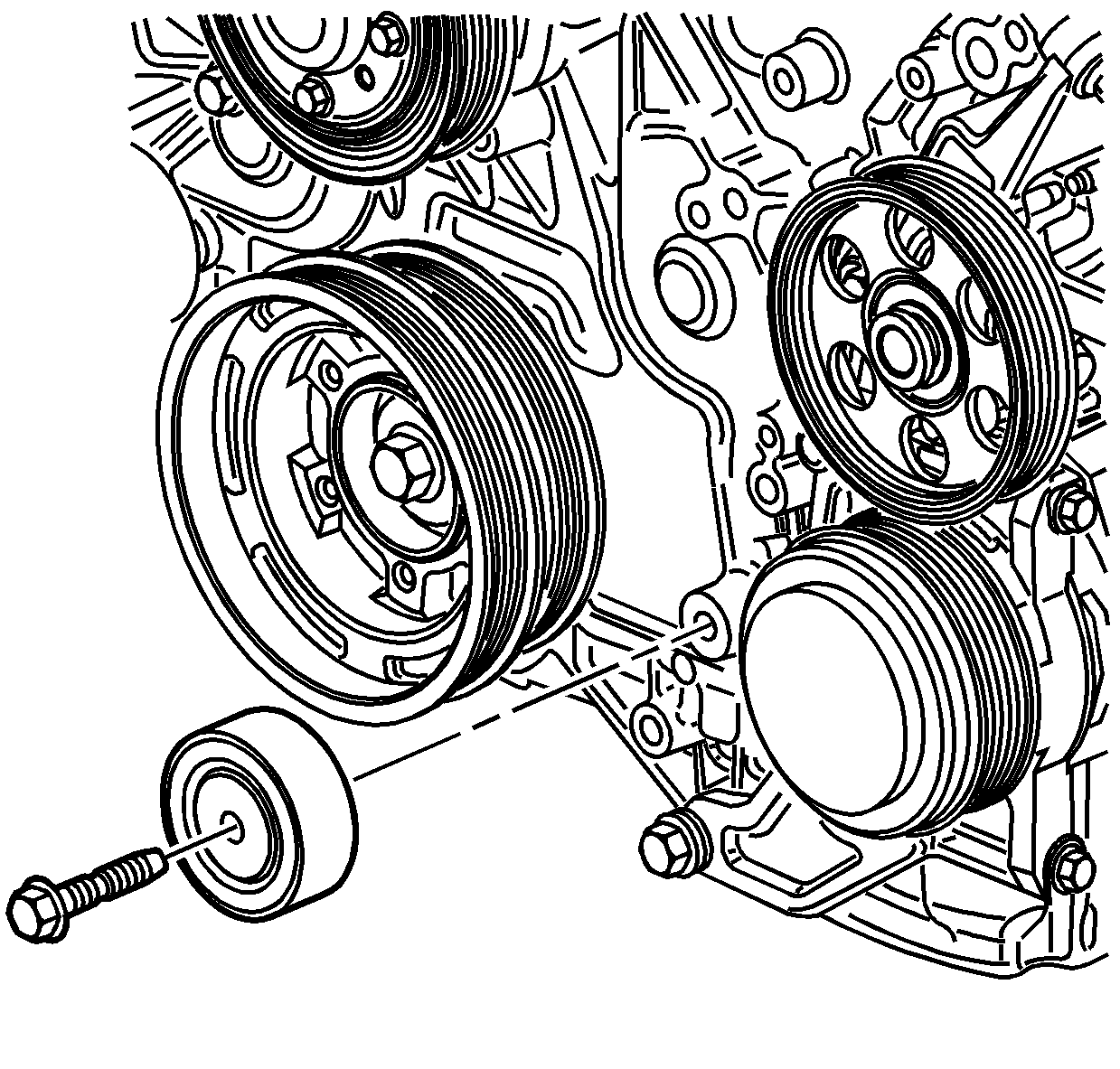

    Fig 1: View Of Drive Belt Idler Pulley
    GM945844Courtesy of GENERAL MOTORS CORP.
  1. Place the drive belt idler pulley in position to the engine front cover.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the drive belt idler pulley bolt.

    Tighten:  Tighten the drive belt idler pulley bolt to 50 N.m (37 lb ft).
