Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

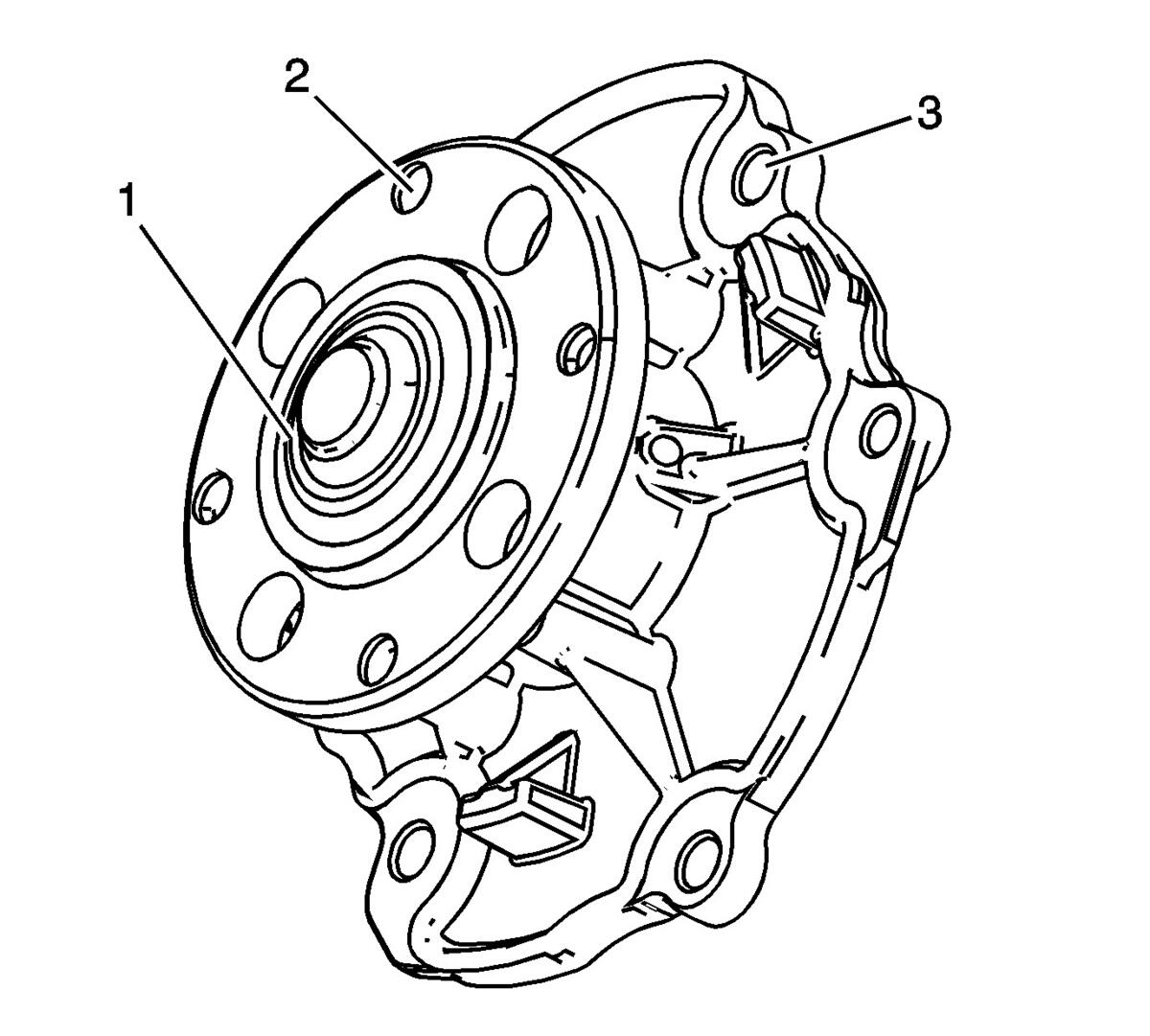

    Fig 1: Inspecting Exterior Of Water Pump
    GM1211126Courtesy of GENERAL MOTORS CORP.
  1. Rotate the water pump hub (1). The water pump hub and impeller should turn straight and smoothly. If the hub wobbles, is noisy, or feels rough when rotated, replace the water pump.
  2. Inspect the exterior of the water pump for the following:
    • Damage to the water pump hub bolt threads (2) for the water pump pulley
    • Damage to the water pump bolt holes (3)

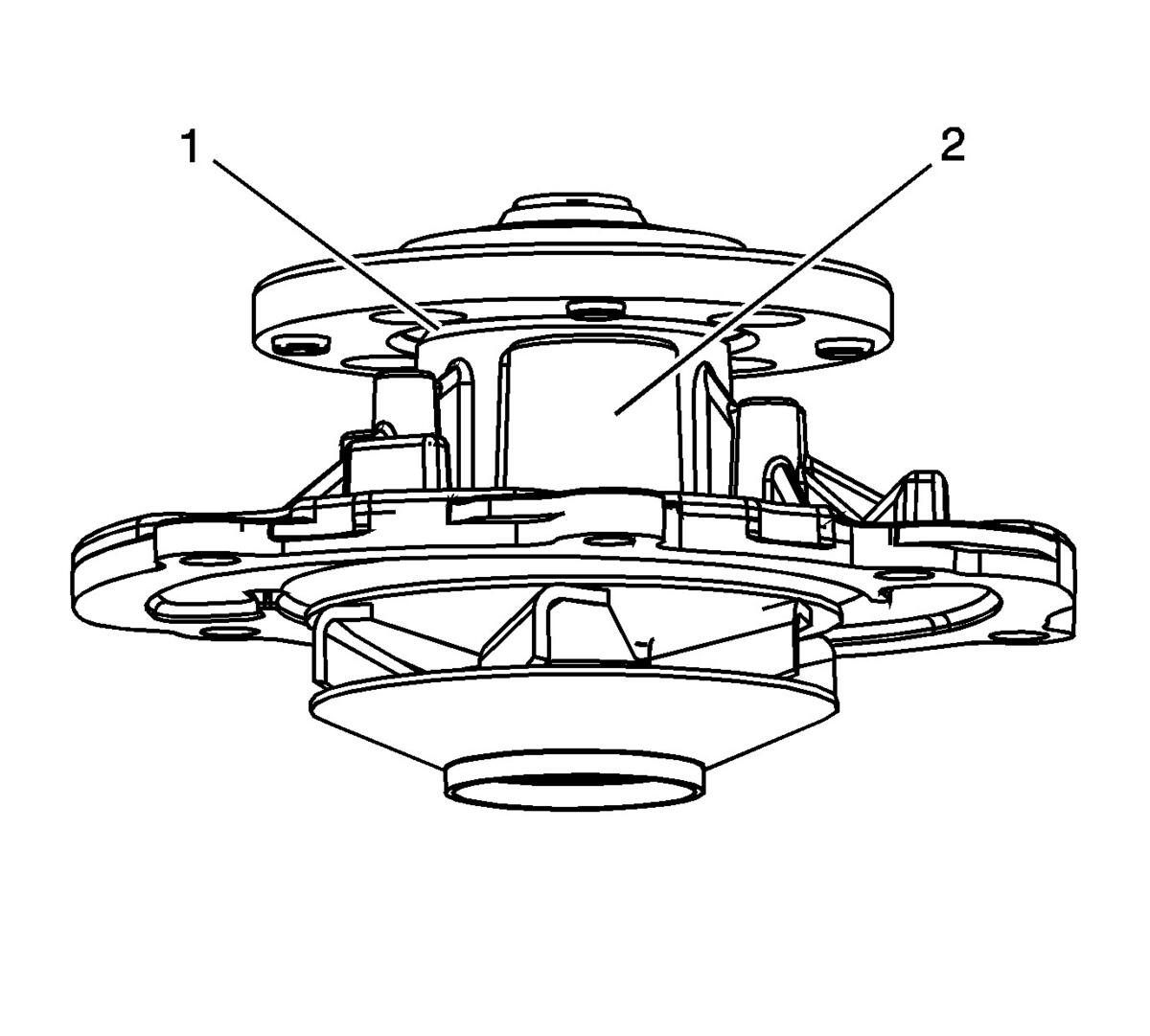

    3. Fig 2: Inspecting Water Pump Shaft & Weep Hole
    GM1318423Courtesy of GENERAL MOTORS CORP.
  3. Examine the water pump shaft (1) and the weep hole (2) in the water pump body for signs of leakage. If coolant leakage is evident, replace the water pump.

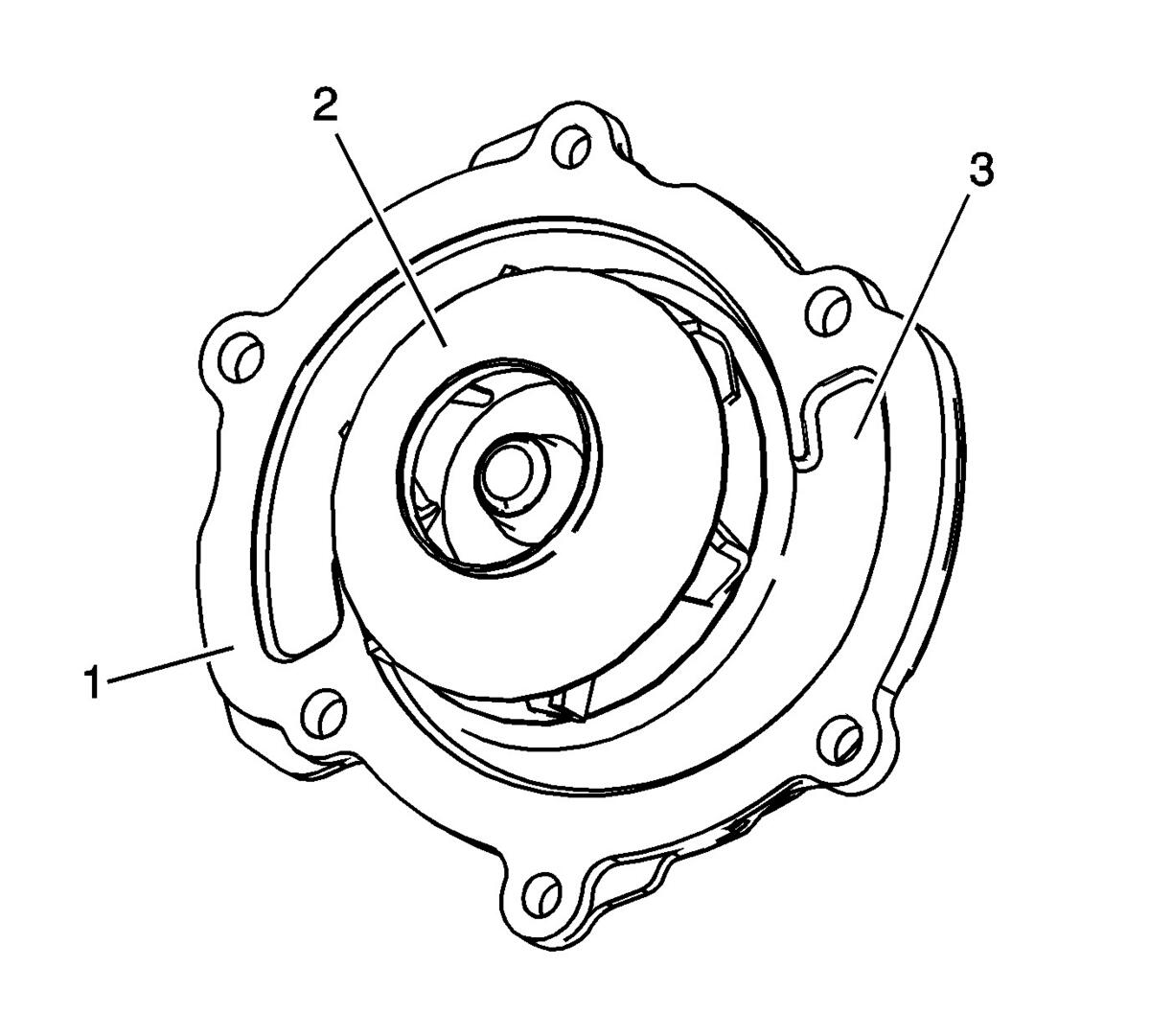

    4. Fig 3: Inspecting Interior Surfaces Of Water Pump
    GM1211128Courtesy of GENERAL MOTORS CORP.
  4. Inspect the interior of the water pump for the following:
    • Damage to the water pump gasket sealing surface (1)
    • Damage, corrosion or restrictions to the water pump impeller (2)
    • Damage, corrosion or restrictions to the coolant passages (3)
  5. Repair or replace the water pump as necessary.
