Thermostat Housing Installation

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Thermostat Housing With Heater Pipes, Heater Hoses, Gasket & Bolts
    GM902889Courtesy of GENERAL MOTORS CORP.
  1. Place the thermostat housing and gaskets in position.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the thermostat housing bolts.

    Tighten:  Tighten the thermostat housing bolts to 10 N.m (89 lb in).

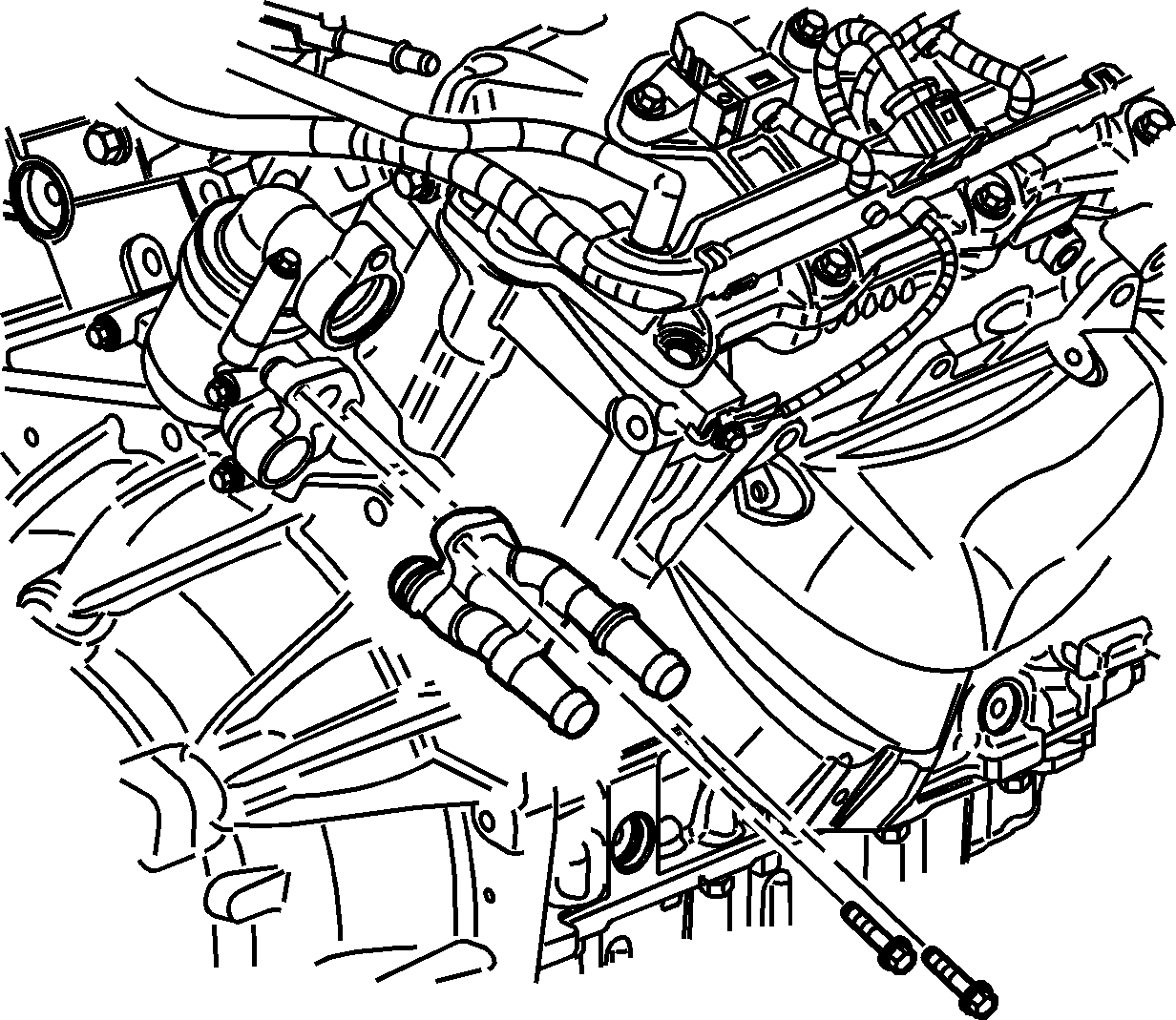

    3. Fig 2: Removing & Installing Heater Inlet/Outlet Pipe Assembly
    GM946082Courtesy of GENERAL MOTORS CORP.
  3. Install the heater inlet/outlet pipe assembly.
  4. Install the heater inlet/outlet pipe assembly bolts.

    Tighten:  Tighten the heater inlet/outlet pipe assembly bolts to 10 N.m (89 lb in).
