Primary Camshaft Drive Chain Guide Installation - Lower

WARNING: This page is about a different variant/trim than selected.

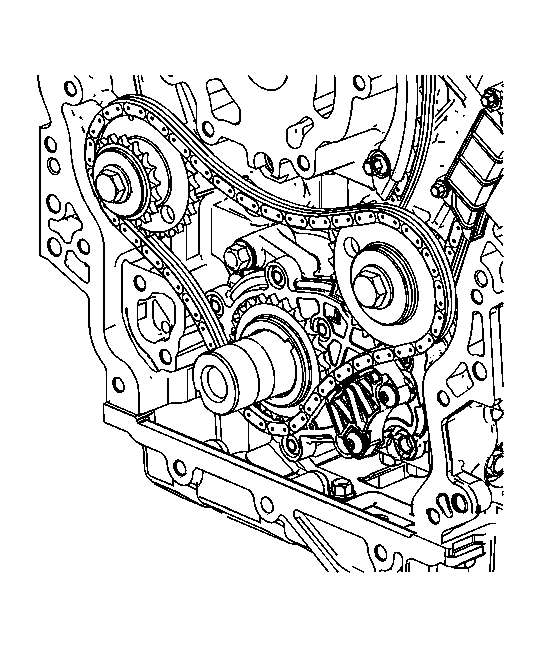

Fig 1: Identifying Primary Camshaft Drive Chain Lower Guide
GM946167Courtesy of GENERAL MOTORS CORP.

Do not remove the primary camshaft drive chain lower guide. The primary camshaft drive chain lower guide is not serviceable separately. If the primary camshaft drive chain lower guide must be replaced, the oil pump must be replaced.
