Cylinder Head Installation - Right

Tools Required

• EN 46111  Crankshaft Rotation Socket
• J 45059  Angle Meter

IMPORTANT: Ensure that the crankshaft is in the timing drive assembly position using the EN 46111  .
1. Ensure the cylinder head locating pins are securely mounted in the cylinder block deck face.
Fig 1: View Of Right Cylinder Head Gasket
Courtesy of GENERAL MOTORS CORP.
2. Install a NEW right cylinder head gasket using the deck face locating pins for retention.
Fig 2: View Of Right Cylinder Head
Courtesy of GENERAL MOTORS CORP.
3. Align the right cylinder head with the deck face locating pins.
4. Place the right cylinder head in position on the deck face.

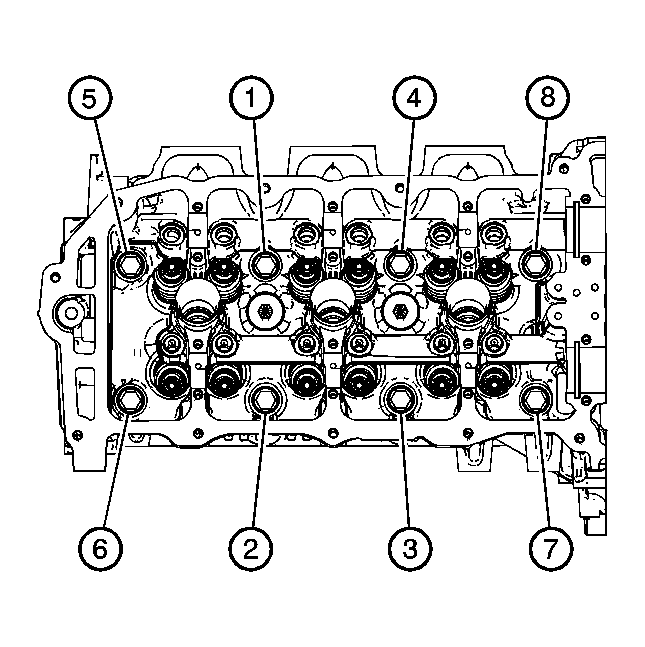

Fig 3: Identifying Cylinder Head Bolt Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
NOTE: Refer to Fastener Notice in Cautions and Notices.
IMPORTANT: DO NOT allow oil on the cylinder head bolt bosses.
IMPORTANT: DO NOT reuse the old M11 cylinder head bolts.
5. Install new M11 cylinder head bolts.

   Tighten:

   1. Tighten the M11 cylinder head bolts a first pass in sequence to 45 N.m (33 lb ft).
   2. Tighten the M11 cylinder head bolts a second pass in sequence an additional 120 degrees using the J 45059  .
