Camshaft Cover Installation - Left

WARNING: This page is about a different variant/trim than selected.

Tools Required

    Fig 1: Identifying EN 46105-2
    GM1306484Courtesy of GENERAL MOTORS CORP.
  1. Remove the EN 46105-2 from the rear of the left camshafts.

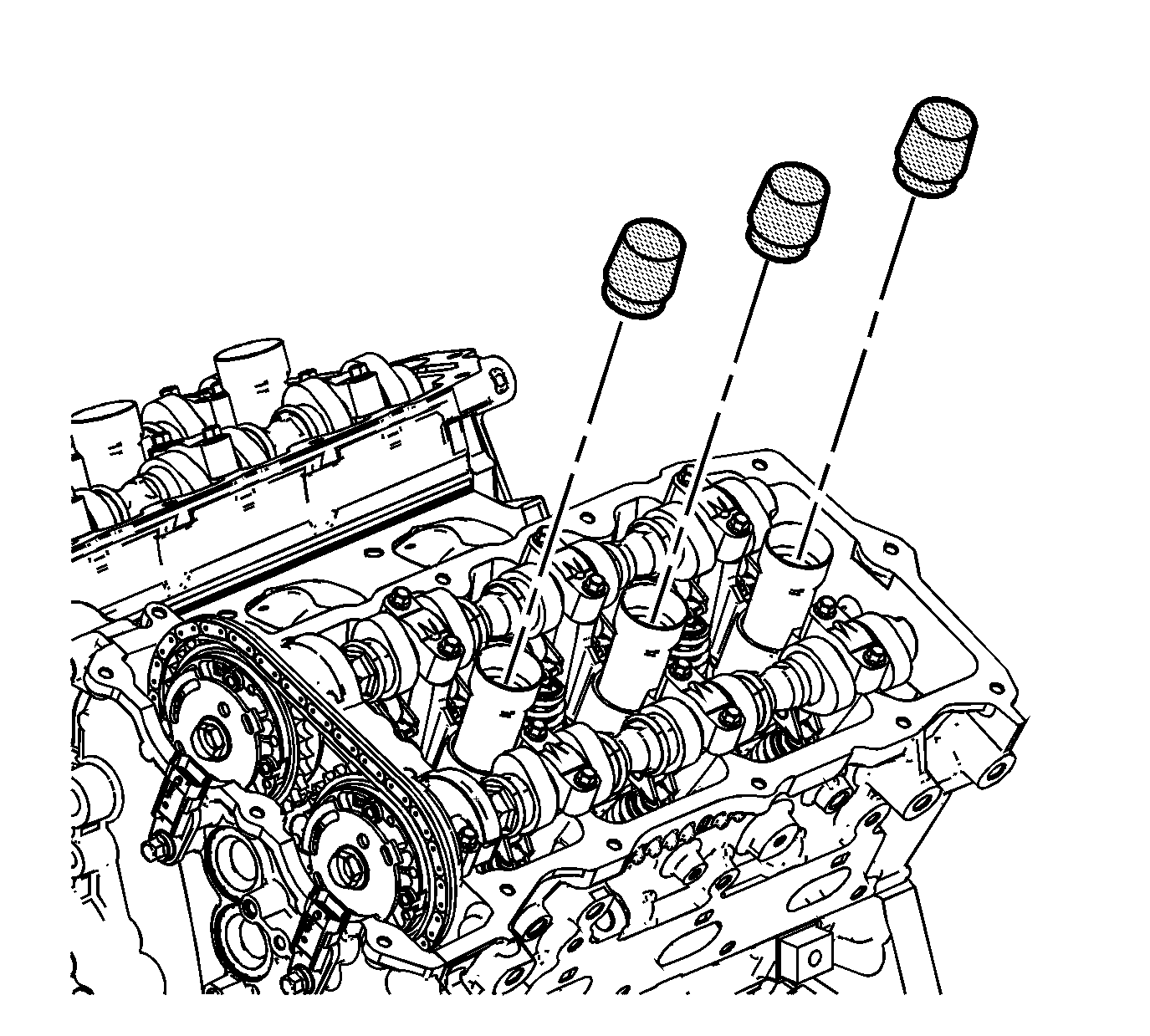

    2. Fig 2: Identifying EN 46101
    GM1306485Courtesy of GENERAL MOTORS CORP.
  2. Install the EN 46101  onto the spark plug tubes of the left cylinder head.

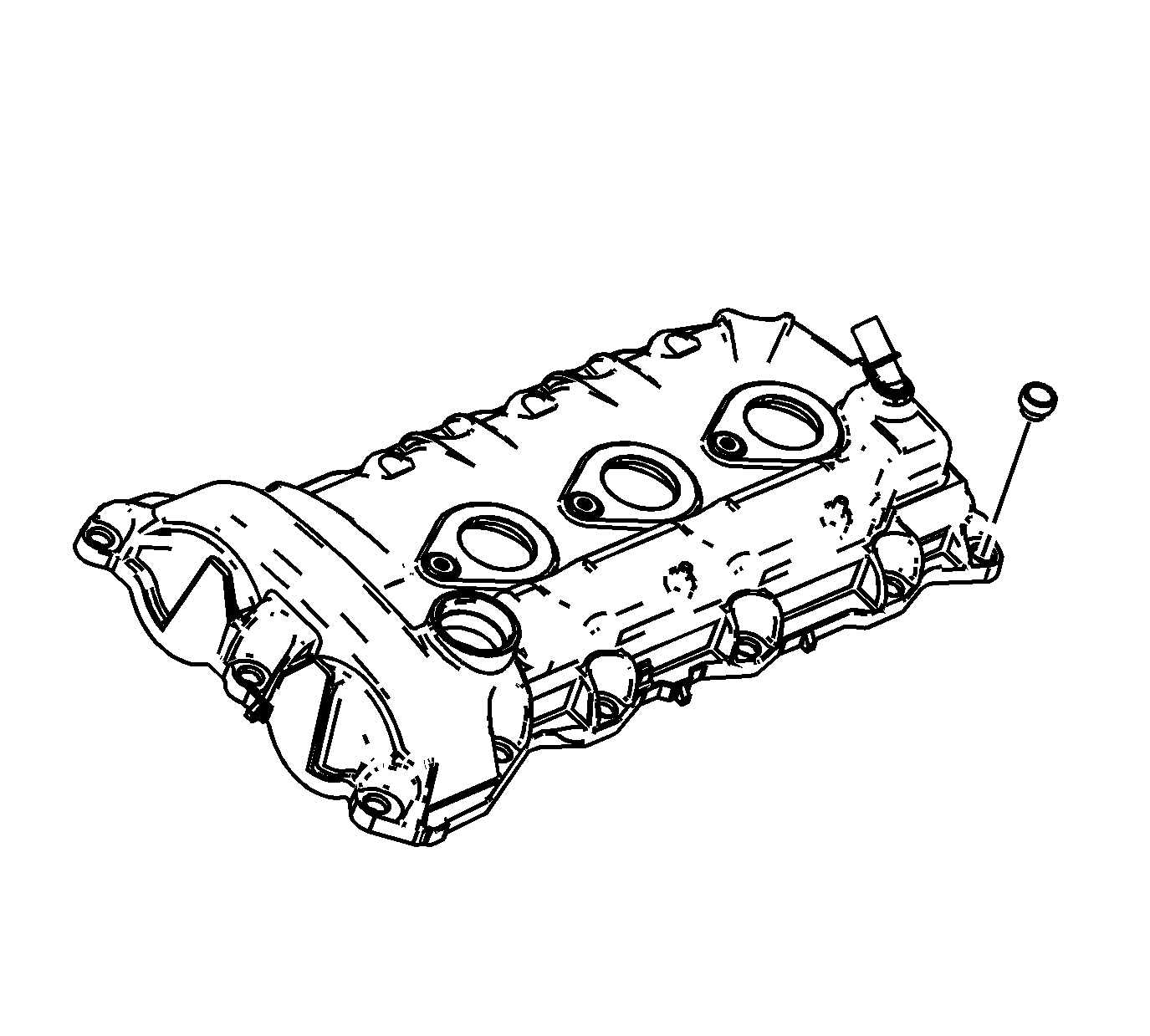

    3. Fig 3: Removing & Installing Camshaft Cover Bolt Grommets
    GM1306486Courtesy of GENERAL MOTORS CORP.
  3. Install the camshaft cover bolt grommets prior to installing the camshaft cover bolts.
  4. Wipe the camshaft cover sealing surface on the left cylinder head with a clean, lint-free cloth.

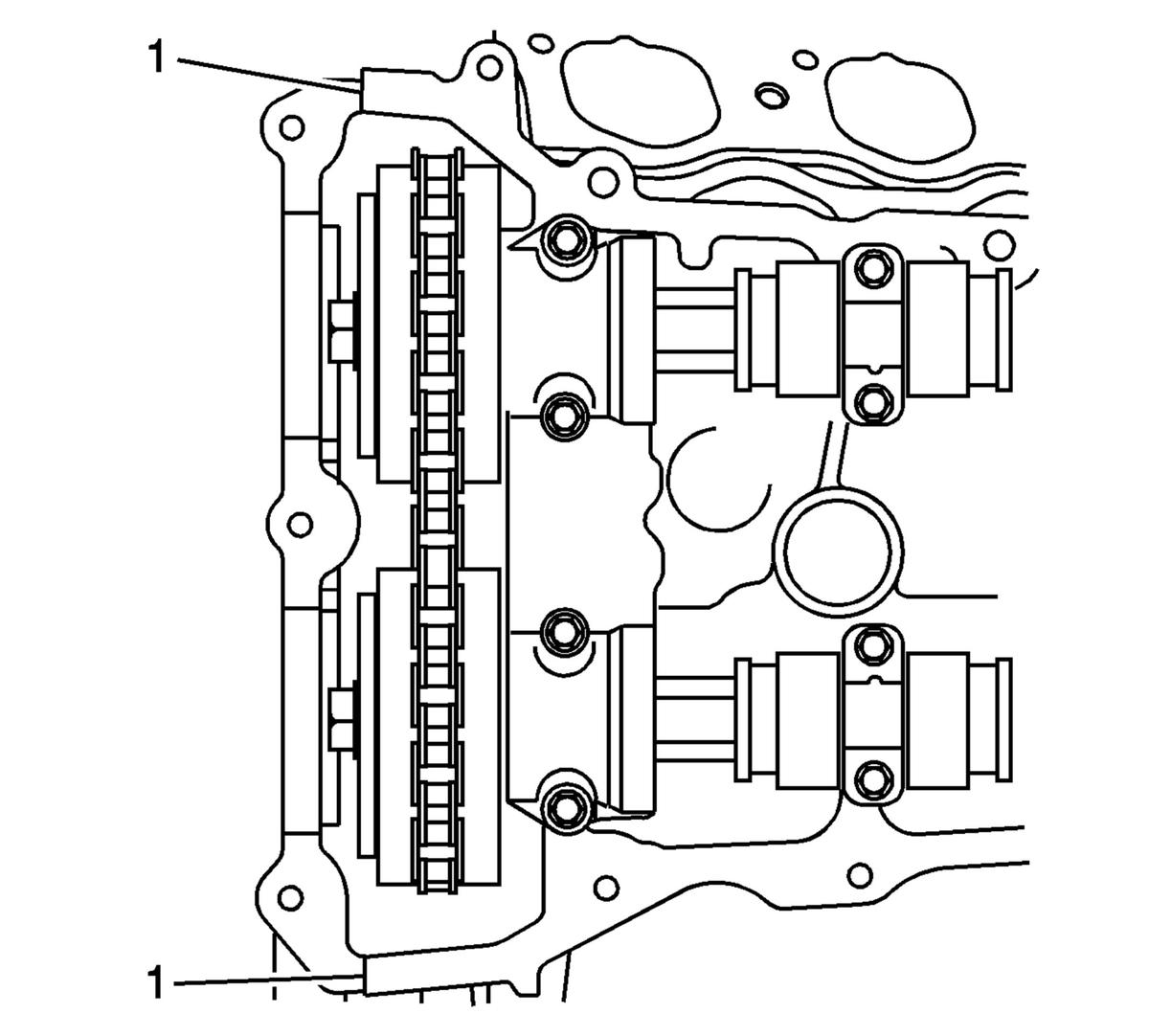

    5. Fig 4: Applying Sealant On Engine Front Cover Split Lines
    GM1306487Courtesy of GENERAL MOTORS CORP.
  5. Place a bead 8 mm (0.3150 in) in diameter by 4 mm (0.1575 in) in height of RTV sealant, GM P/N 12378521 (Canadian P/N 88901148) or equivalent, on the engine front cover split lines (1).

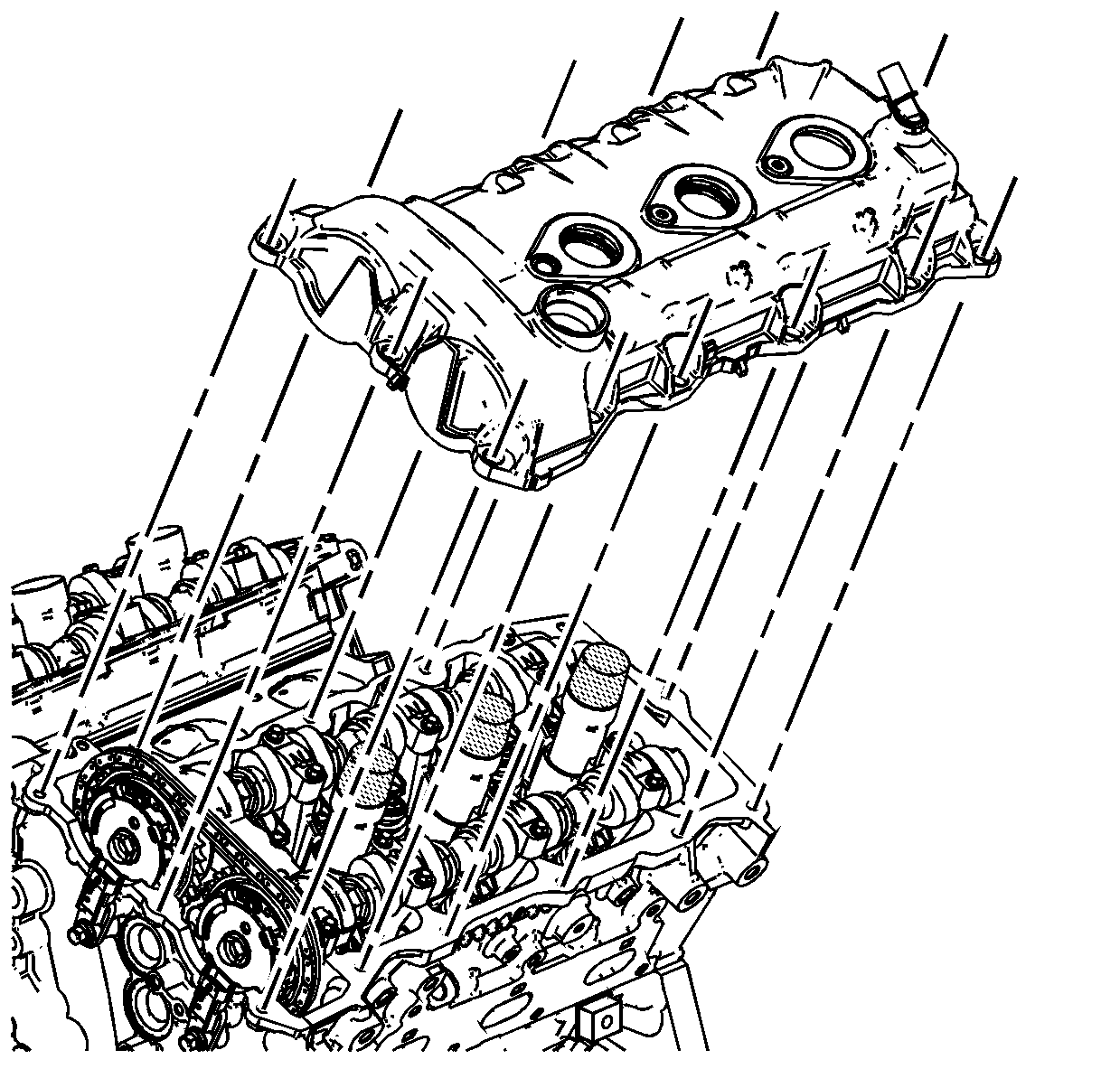

    6. Fig 5: Removing & Installing Left Camshaft Cover
    GM1306488Courtesy of GENERAL MOTORS CORP.
  6. Place the left camshaft cover into position onto the left cylinder head.

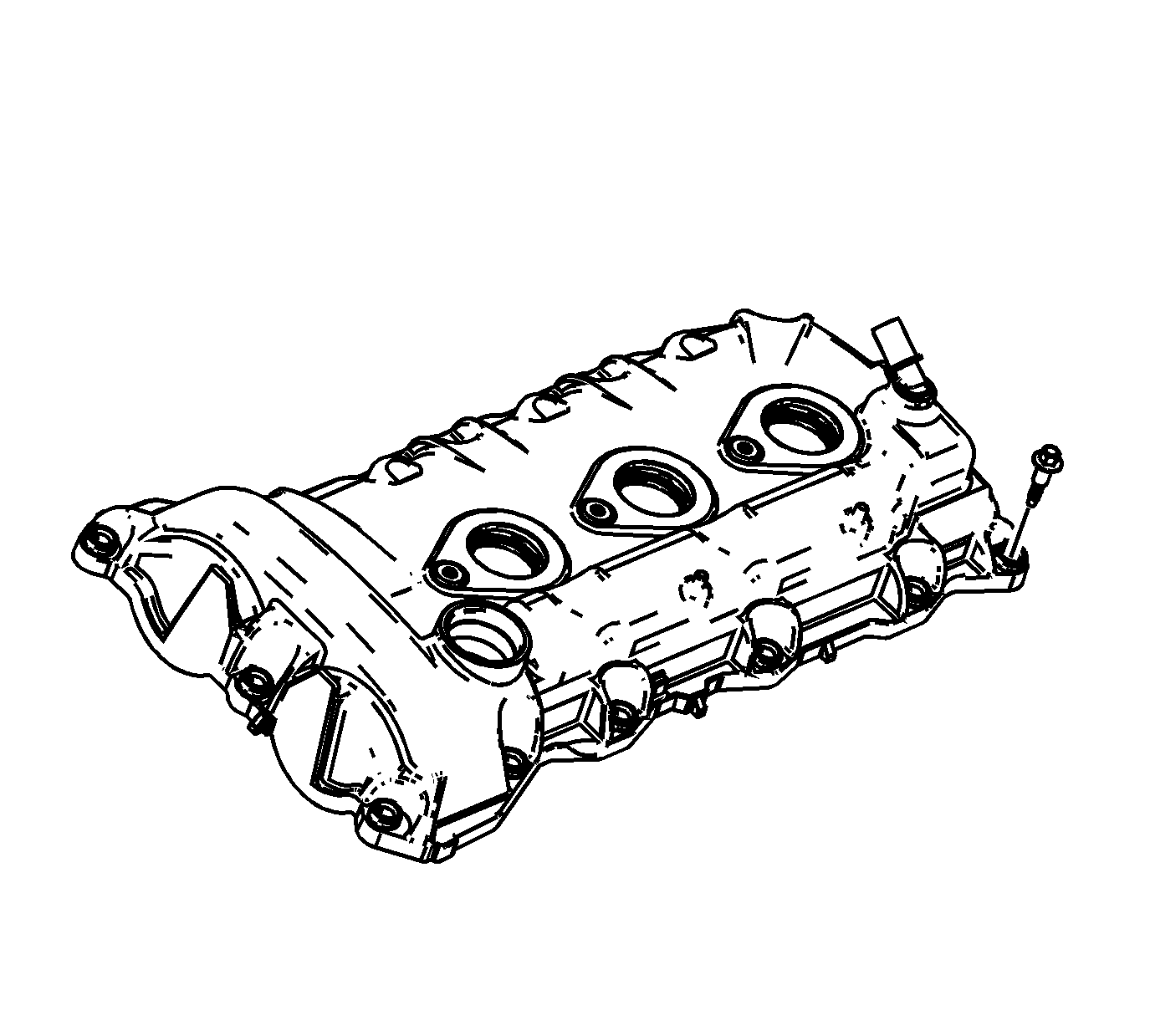

    7. Fig 6: Removing & Installing Left Camshaft Cover Bolts
    GM1306489Courtesy of GENERAL MOTORS CORP.
  7. Loosely install the left camshaft cover bolts.

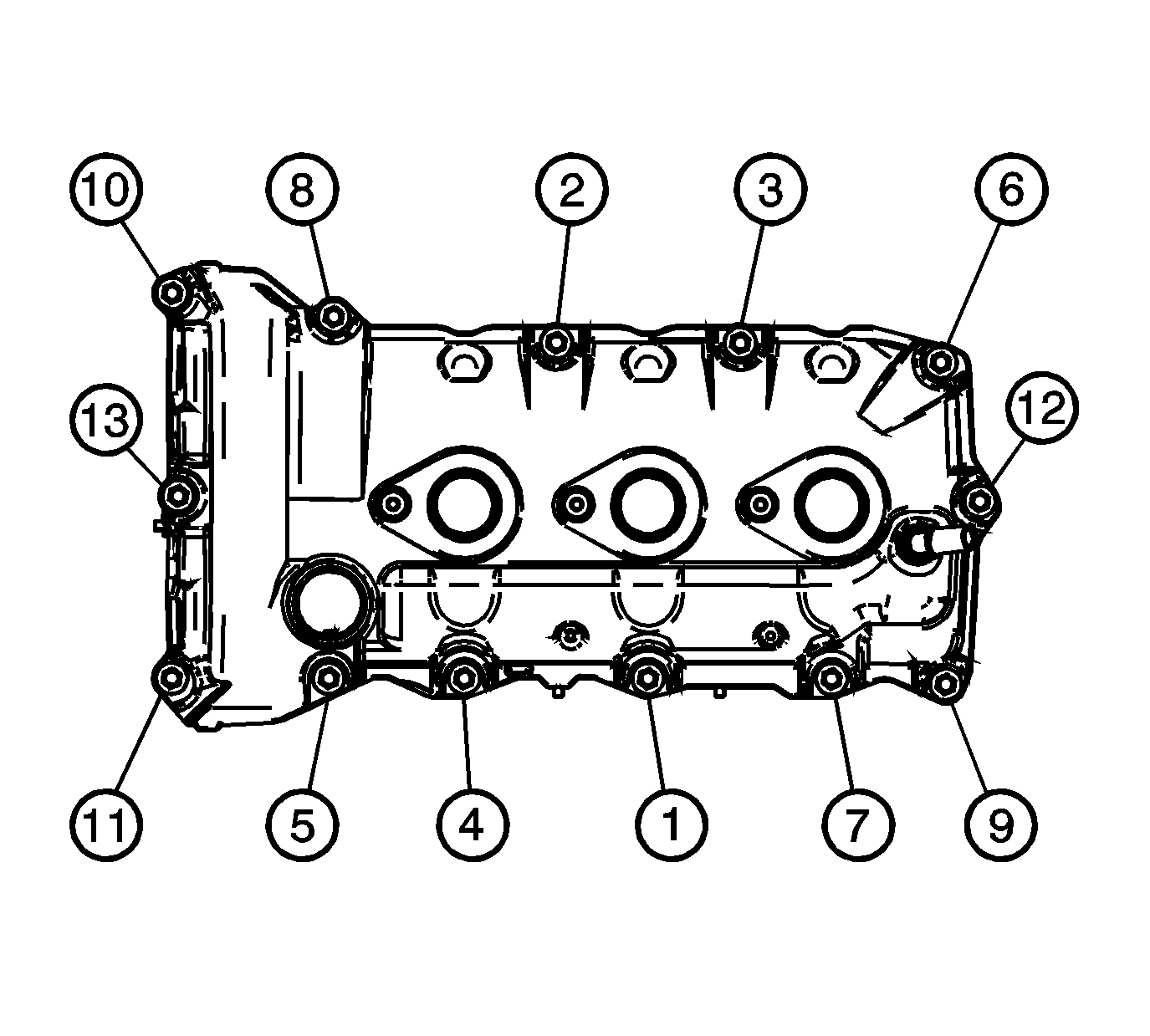

    8. Fig 7: Identifying Left Camshaft Cover Tightening Sequence
    GM1392433Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  8. Tighten the left camshaft cover bolts in the sequence shown.

    Tighten:  Tighten the left camshaft cover bolts in the sequence to 10 N.m (89 lb in).

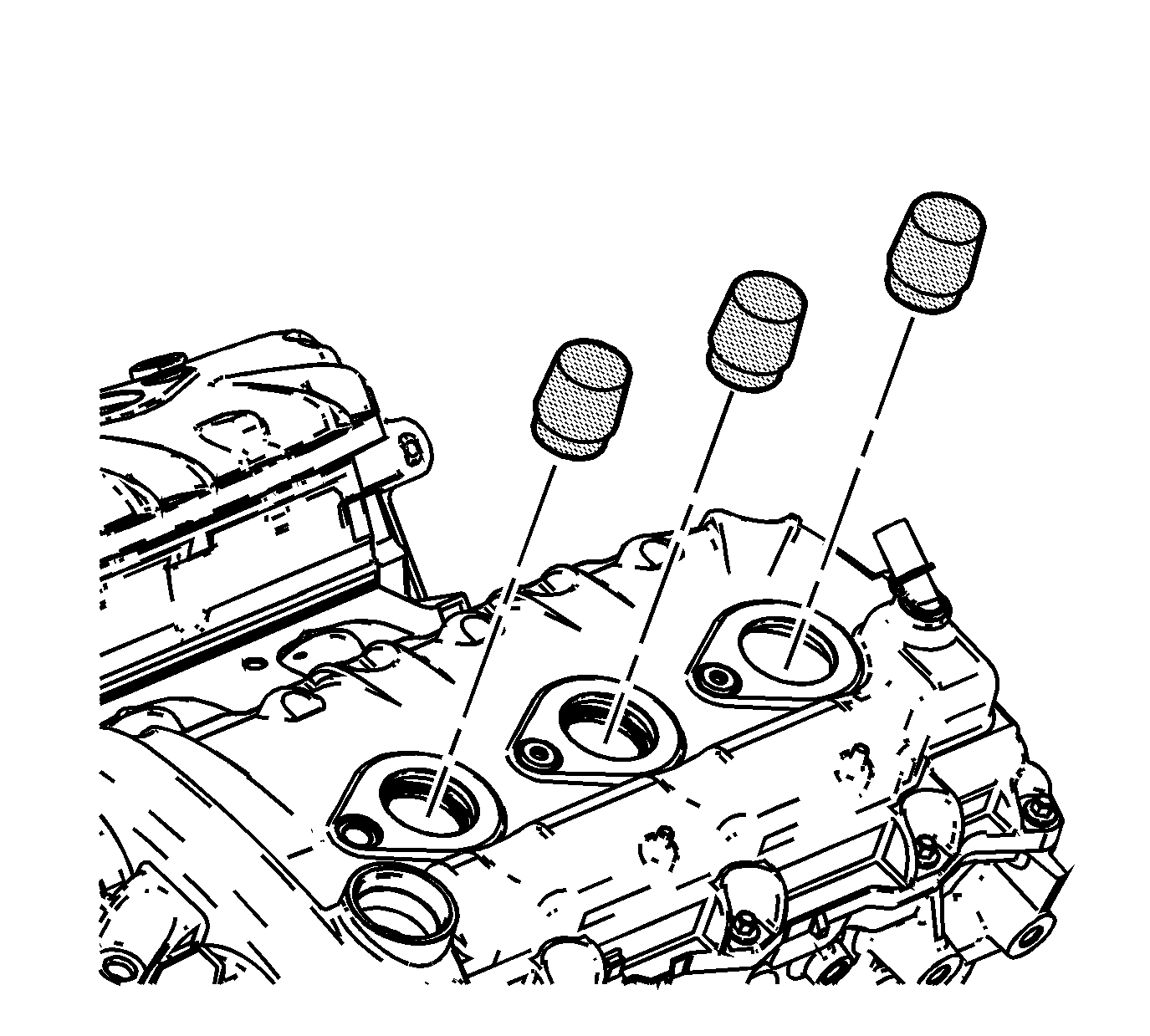

    9. Fig 8: Identifying EN 46101
    GM1306490Courtesy of GENERAL MOTORS CORP.
  9. Remove the EN 46101  from the spark plug tubes of the left cylinder head.

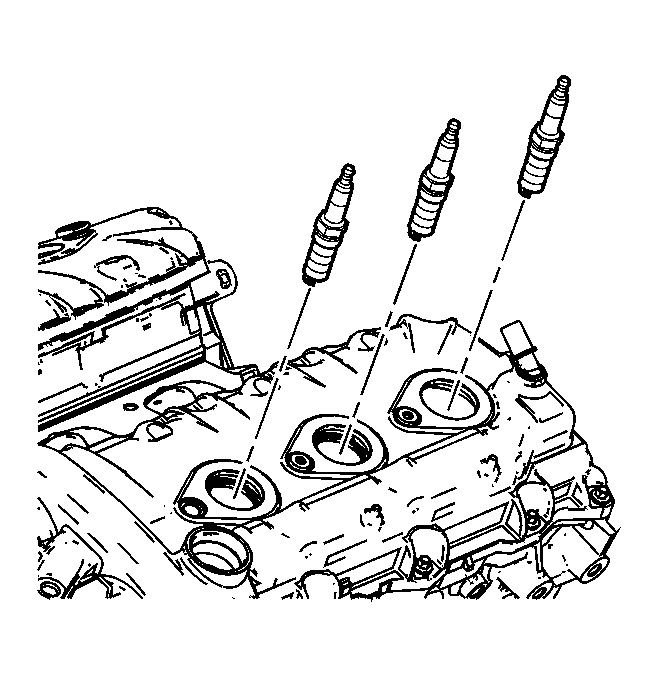

    10. Fig 9: Removing & Installing Left Cylinder Head Spark Plugs
    GM946098Courtesy of GENERAL MOTORS CORP.
  10. Install the NEW spark plugs into the left cylinder head.

    Tighten:  Tighten the spark plugs to 20 N.m (15 lb ft).

    11. Fig 10: Identifying Left Cylinder Head Ignition Coils
    GM868186Courtesy of GENERAL MOTORS CORP.
  11. Install each ignition coil through the left camshaft cover into the spark plug tube taking care not to damage the spark plug and/or the seal in the left camshaft cover.
  12. Install each ignition coil bolt.

    Tighten:  Tighten the ignition coil bolt to 10 N.m (89 lb in).
