Valve Lifters Cleaning and Inspection
WARNING: This page is about a different variant/trim than selected.

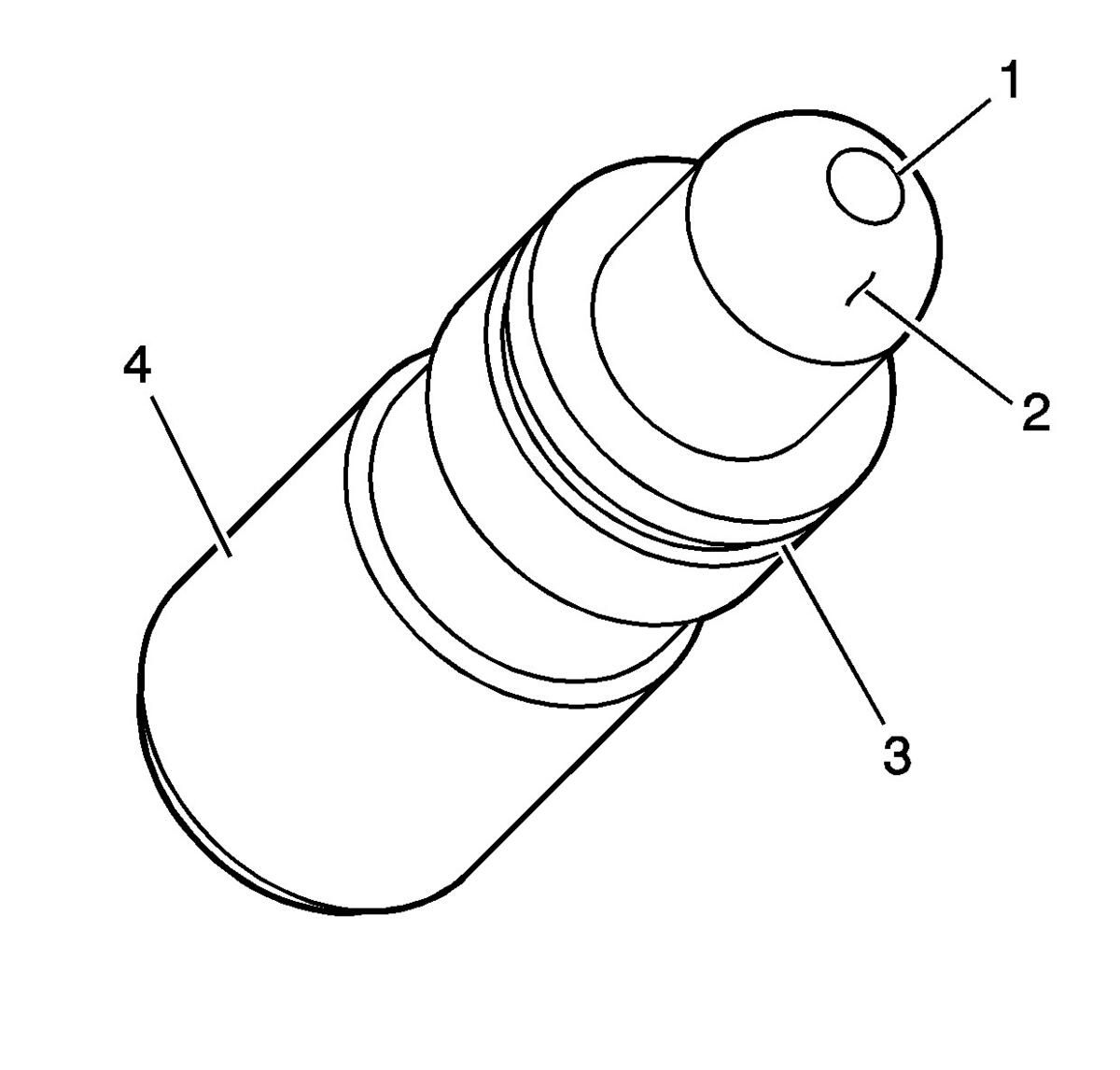

- Inspect the stationary hydraulic lash adjuster (SHLA) in the following areas:
- A plugged oil passage (1)
- A scored or worn camshaft follower pivot area (2)
- A damaged or broken retainer (3)
- A severely scuffed or worn SHLA body (4)
- Replace the SHLA or SHLAs as necessary.
NOTE:
Refer to Valve Lifter Priming Notice in Cautions and Notices.
