Inspection Procedure

WARNING: This page is about a different variant/trim than selected.

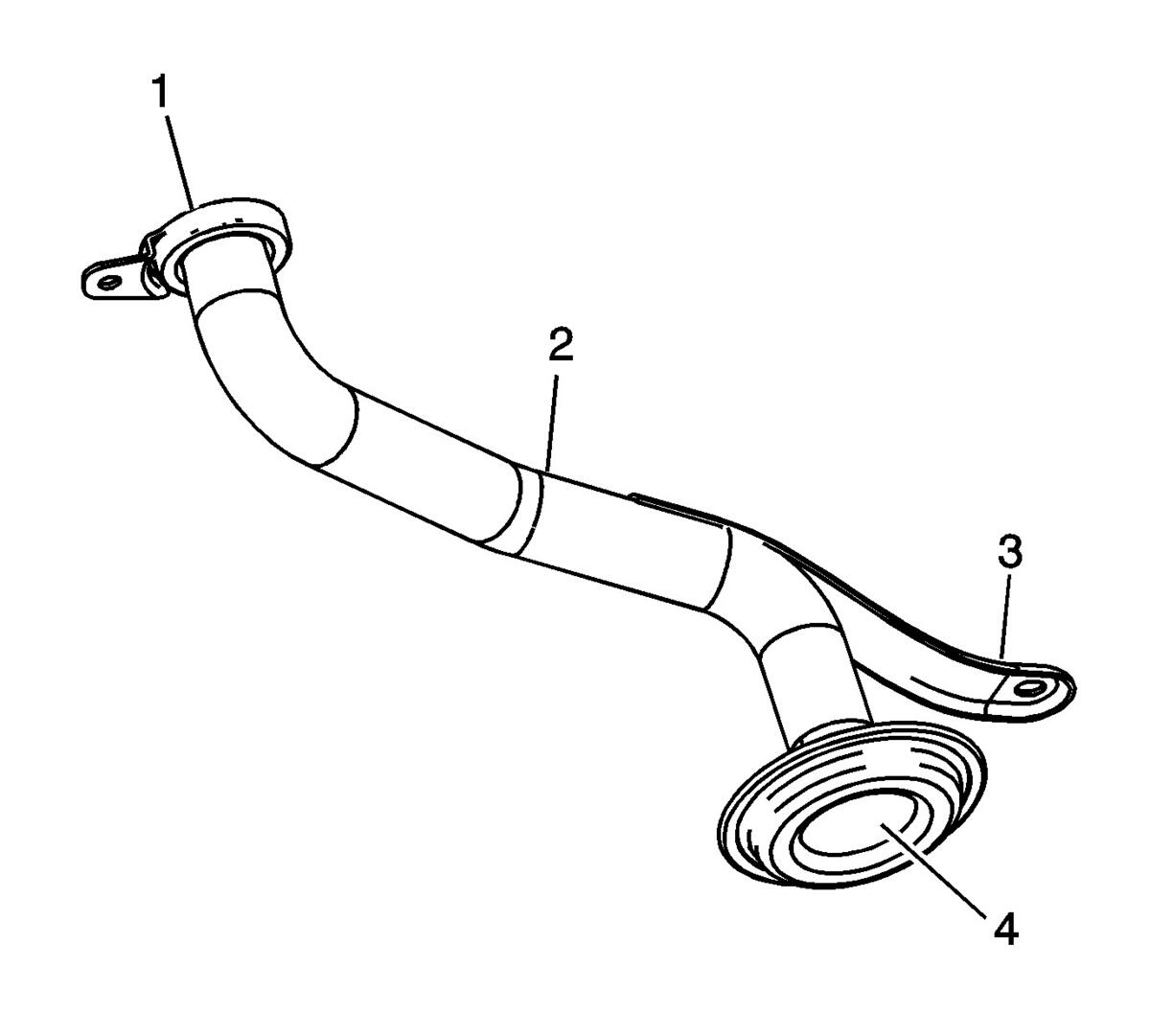

    Fig 1: Identifying Oil Pump Pipe
    GM1318139Courtesy of GENERAL MOTORS CORP.
  1. Inspect the mounting surface (1) for possible leakage paths.
  2. Inspect the oil pump pipe tube (2) for cracks, imperfections and/or damage.
  3. Inspect the oil pump pipe support bracket (3) for cracks or damage.
  4. Inspect the oil pump screen (4) for blockage, foreign material, tears, cracks and/or damage.
