Engine Front Cover Assemble

WARNING: This page is about a different variant/trim than selected.

Tools Required

EN 46103 Camshaft Actuator Valve Seal Remover/Installer
J 29184 Oil Seal Installer

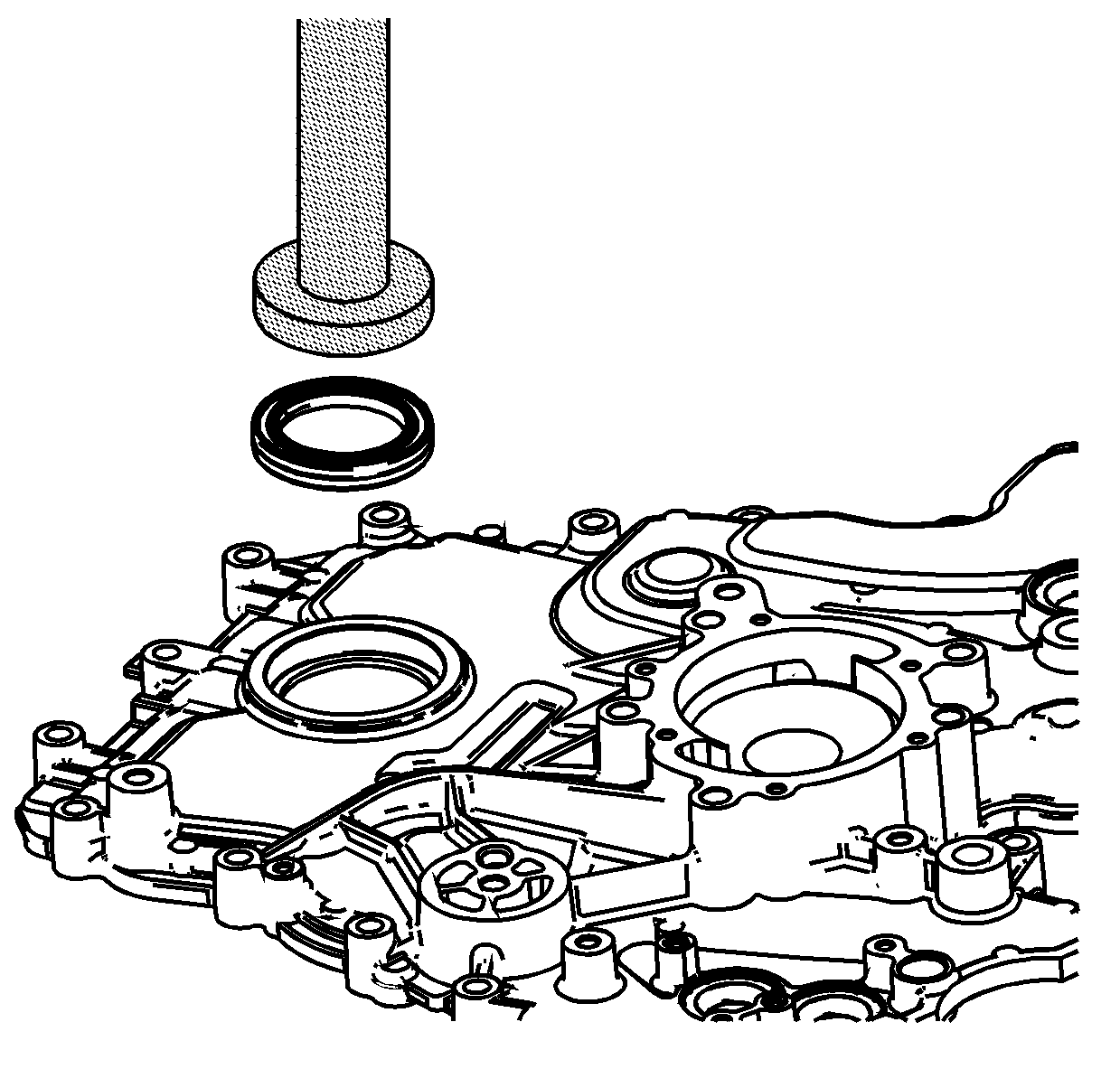

Fig 1: Installing Crankshaft Front Oil Seal

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Do not lubricate the crankshaft front oil seal or crankshaft balancer sealing surfaces. The crankshaft balancer is installed into a dry seal.

Install the NEW crankshaft front oil seal into the engine front cover using the J 29184 .

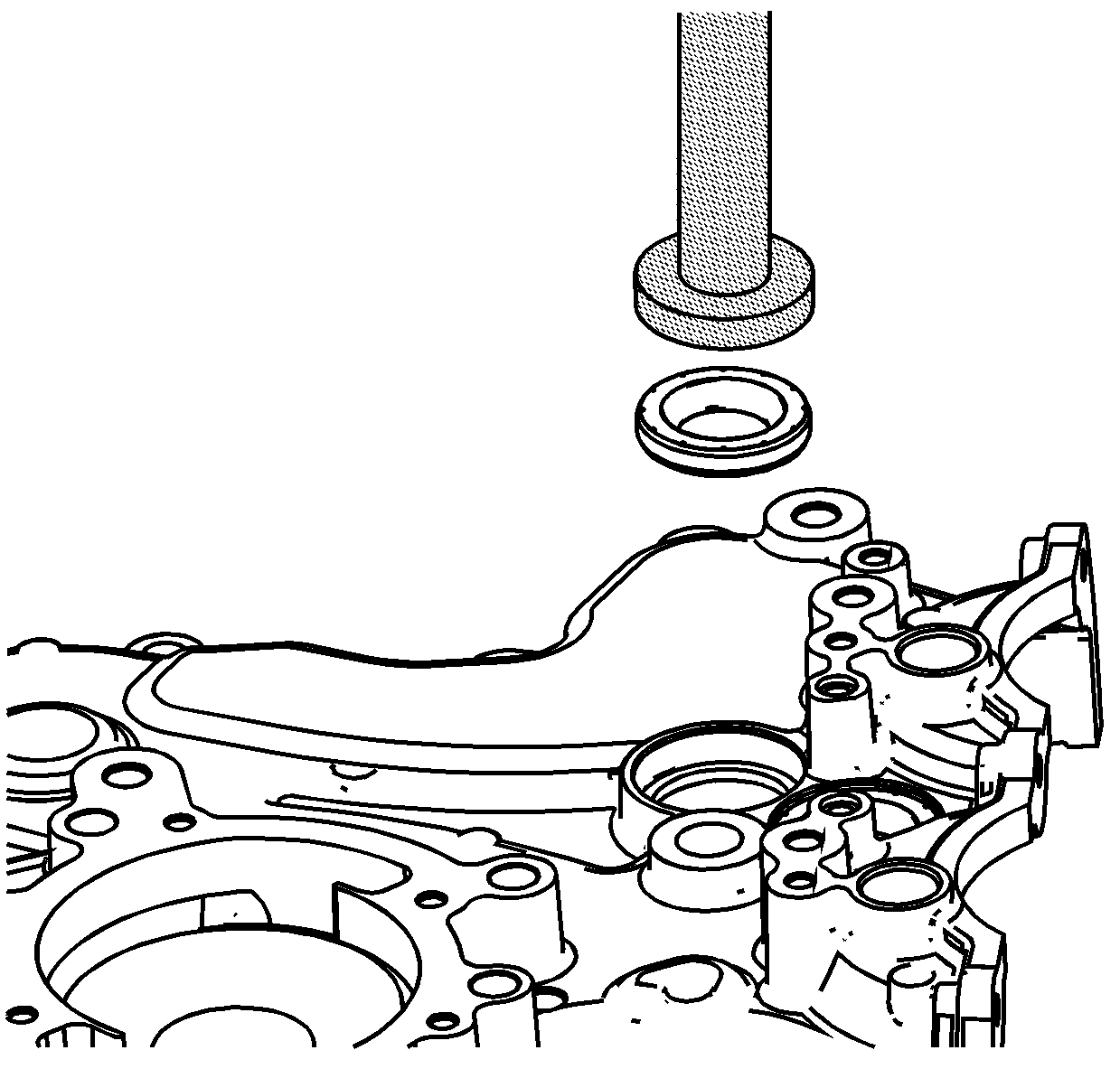

Fig 2: Installing Camshaft Position Actuator Valve Oil Seals

Courtesy of GENERAL MOTORS CORP.

Install the NEW camshaft position actuator valve oil seals into the engine front cover using the EN 46103 .
