Crankshaft Rear Oil Seal and Housing Removal

WARNING: This page is about a different variant/trim than selected.

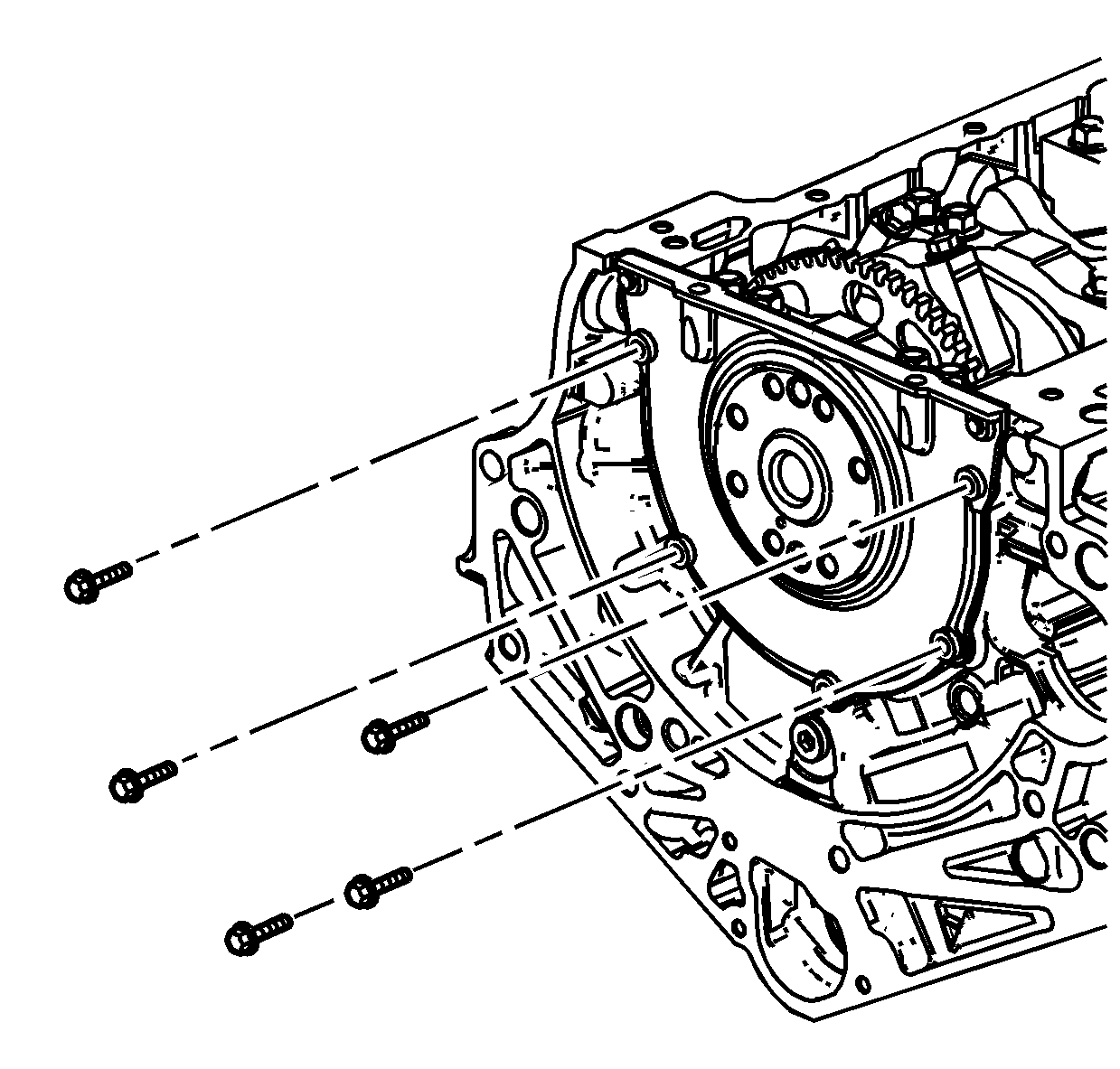

    Fig 1: Removing & Installing Crankshaft Rear Oil Seal Housing Bolts
    GM1306175Courtesy of GENERAL MOTORS CORP.
  1. Remove the crankshaft rear oil seal housing bolts.

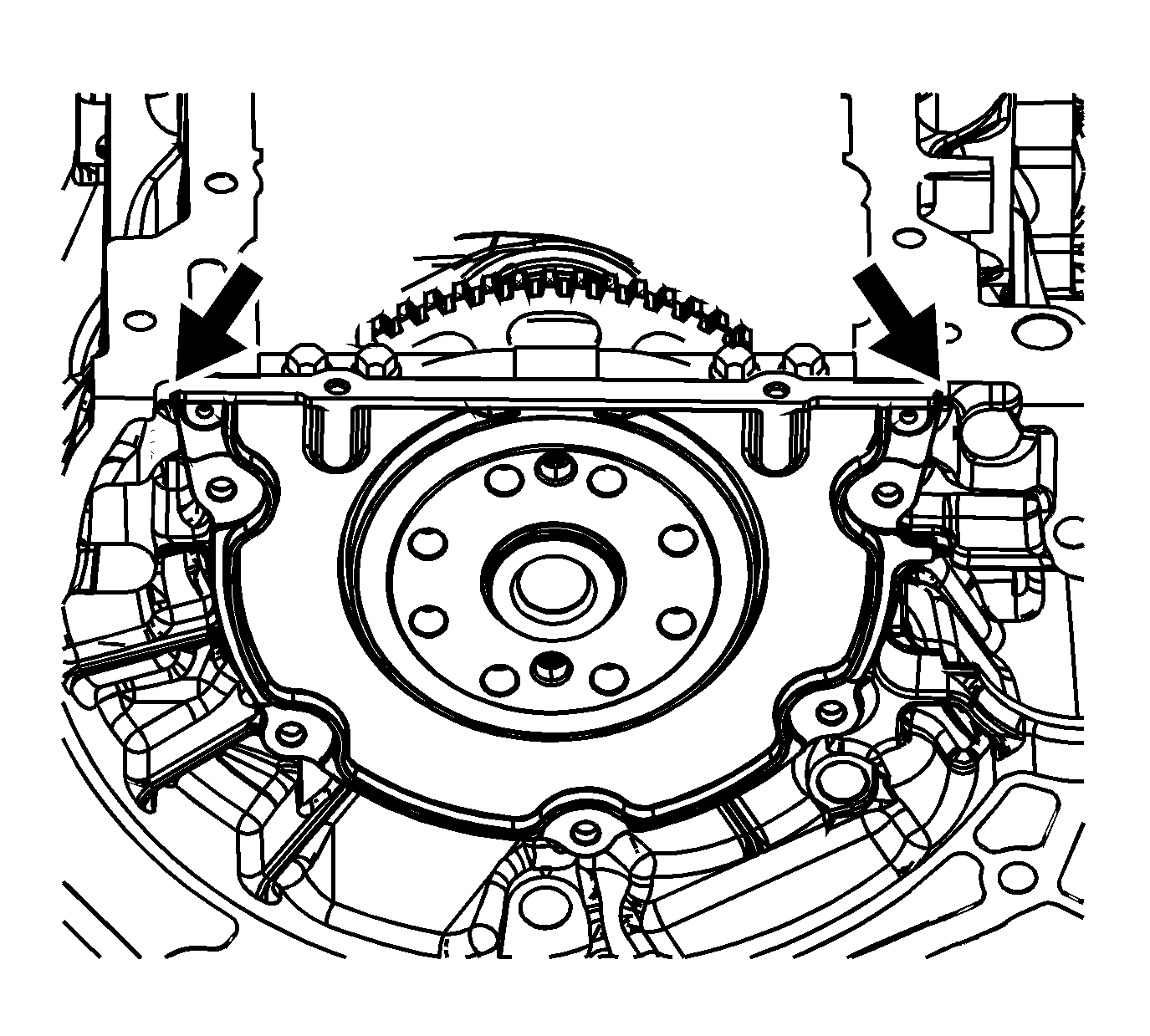

    2. Fig 2: Identifying Pry Points Located At Edge Of Crankshaft Rear Oil Seal Housing
    GM1492611Courtesy of GENERAL MOTORS CORP.
  2. Using the pry points located at the edge of the crankshaft rear oil seal housing shear the RTV sealant.

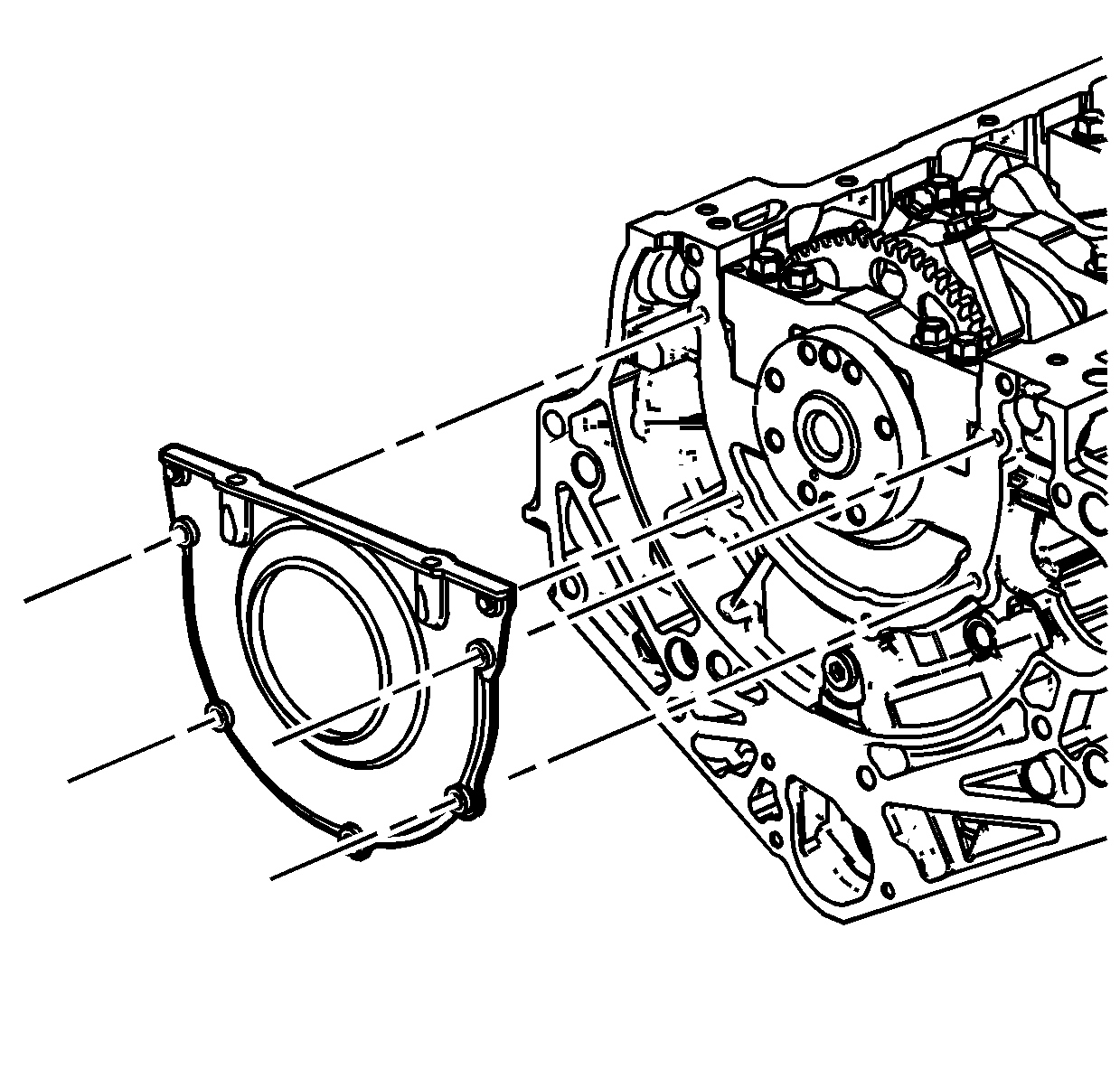

    3. Fig 3: Removing & Installing Crankshaft Rear Oil Seal Housing
    GM1306173Courtesy of GENERAL MOTORS CORP.
  3. Remove and discard the crankshaft rear oil seal housing.
