Installation Procedure

WARNING: This page is about a different variant/trim than selected.

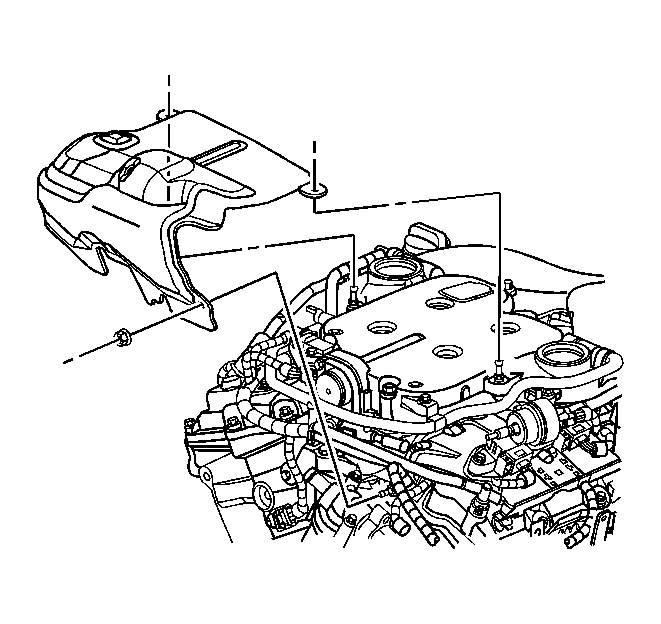

    Fig 1: Removing & Installing Rear Upper Intake Manifold Cover
    GM1459832Courtesy of GENERAL MOTORS CORP.
  1. Install the cover to the upper studs.
  2. Install the cover to the rear stud.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the cover nut.

    Tighten:  Tighten the nut to 23 N.m (17 lb ft).

    4. Fig 2: Removing & Installing Air Inlet Housing Panel
    GM1559367Courtesy of GENERAL MOTORS CORP.
  4. Position the slots in the air inlet housing panel (1) over the studs in the front of dash.
  5. Instal the air inlet housing panel bolt (3) and nuts (2).

    Tighten:  Tighten the bolt/nuts to 10 N.m (89 lb in).

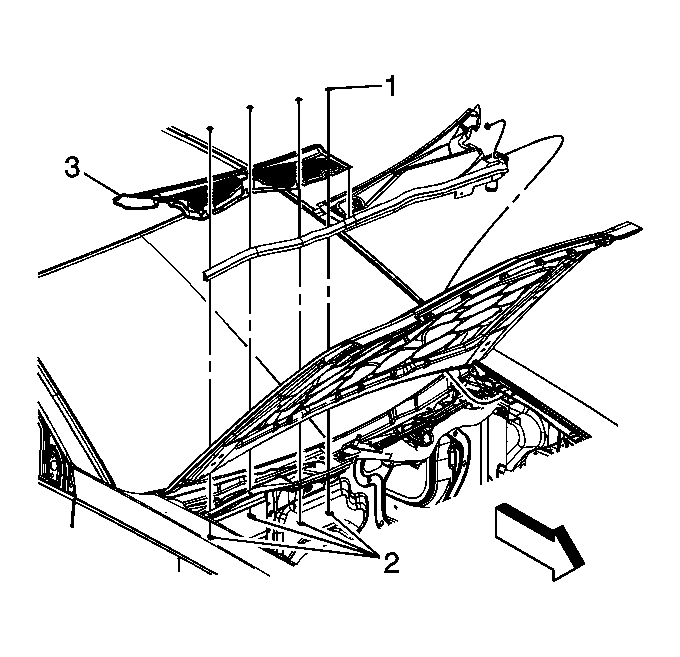

    6. Fig 3: Removing & Installing Hood Seal & Passenger Side Air Inlet Screen Panel
    GM1559364Courtesy of GENERAL MOTORS CORP.
  6. Push the passenger side air inlet screen panel (3) towards the rear of the vehicle until the clips engage the windshield.
  7. Align the center seam of the passenger side panel to the driver side panel.
  8. Install the cowl vent screen bolts (1).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  9. Install the hood seal to the panel.
    10. Fig 4: Removing & Installing Engine Cover/Sight Shield
    GM1469395Courtesy of GENERAL MOTORS CORP.
  10. Position the engine cover/sight shield over the intake manifold so the grommets are aligned with the ball studs.
  11. Press the engine cover/sight shield down firmly near the ball studs in order to install the engine cover/sight shield.
  12. Install the oil fill cap.
  13. Install the cross car brace, if necessary. Refer to Brace Replacement - Cross Vehicle in Body Front End.
