Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the spark plugs in order to ease crankshaft/engine rotation. Refer to Spark Plug Replacement in Engine Controls - 3.6L (LY7).
  2. Remove the engine front cover. Refer to Engine Front Cover Replacement .

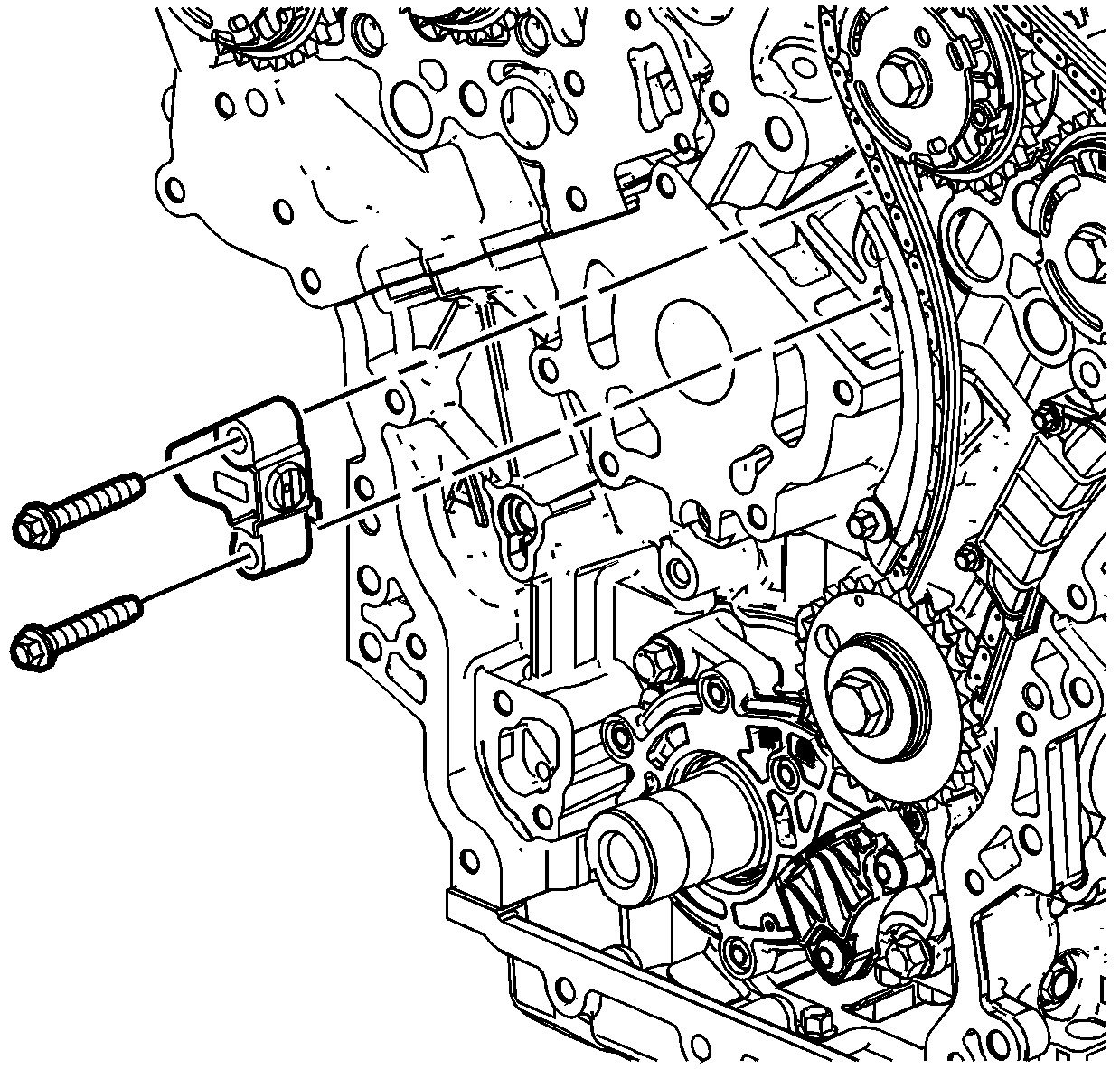

    3. Fig 1: Location Of Left Bank Secondary Camshaft Drive Chain Tensioner
    GM902836Courtesy of GENERAL MOTORS CORP.
  3. Remove the left bank secondary camshaft drive chain tensioner. Refer to Secondary Camshaft Drive Chain Tensioner Removal - Left .
