Installation Procedure

WARNING: This page is about a different variant/trim than selected.

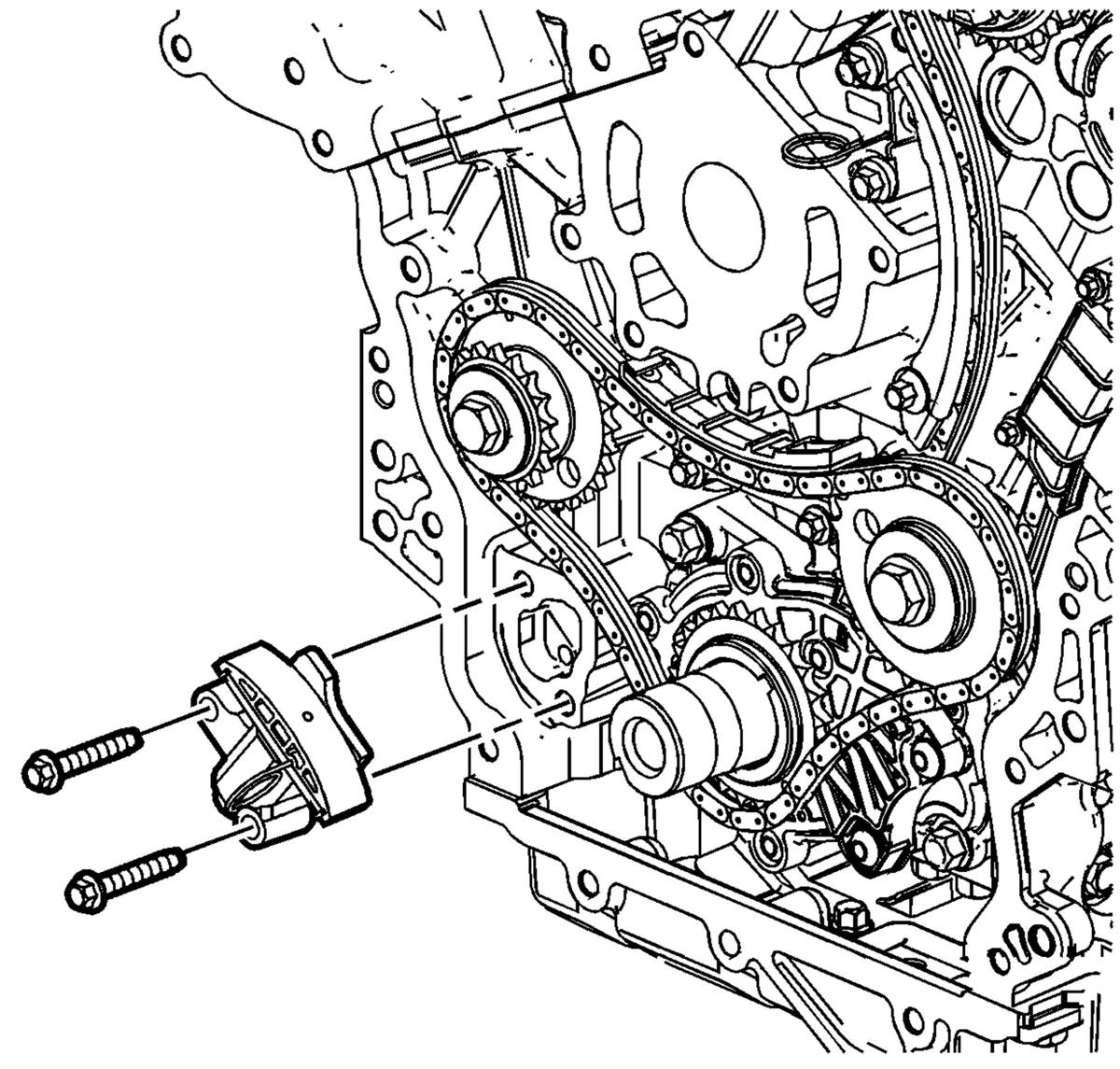

    Fig 1: View Of Primary Camshaft Drive Chain Tensioners
    GM902847Courtesy of GENERAL MOTORS CORP.
  1. Install the primary camshaft drive chain tensioner. Refer to Primary Camshaft Drive Chain Tensioner Installation .
  2. Install the spark plugs. Refer to Spark Plug Replacement in Engine Controls - 3.6L (LY7).
  3. Install the engine front cover. Refer to Engine Front Cover Replacement .
