Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the cross car brace. Refer to Brace Replacement - Cross Vehicle in Body Front End.

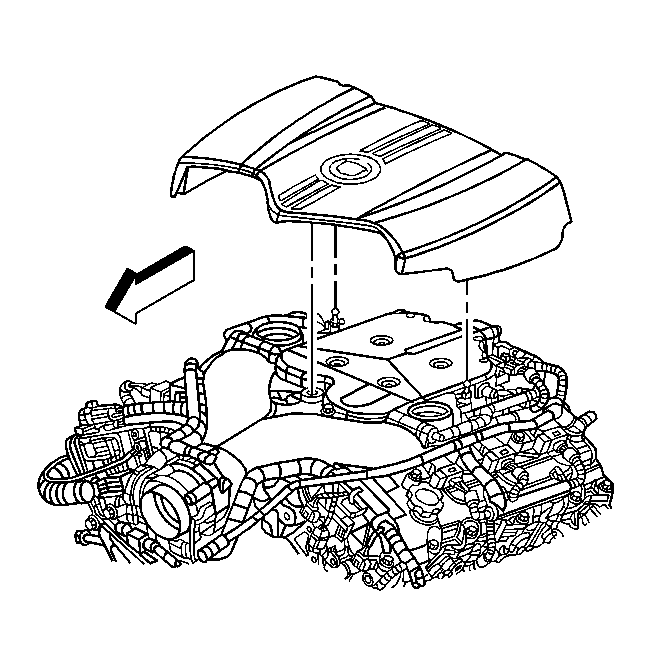

    2. Fig 1: Removing & Installing Engine Cover/Sight Shield
    GM1201042Courtesy of GENERAL MOTORS CORP.
  2. Disengage the cover/shield from the ball studs by pulling up firmly on the right rear and left front of the engine cover.
  3. Remove the engine cover/sight shield.
