Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Frame Mounting Nuts
    GM785352Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  2. Install a screw jack with a block of wood under the oil pan for support.
  3. Remove the lower engine mount retaining nut.
  4. Raise the engine using the screw jack until the weight is removed from the mount.

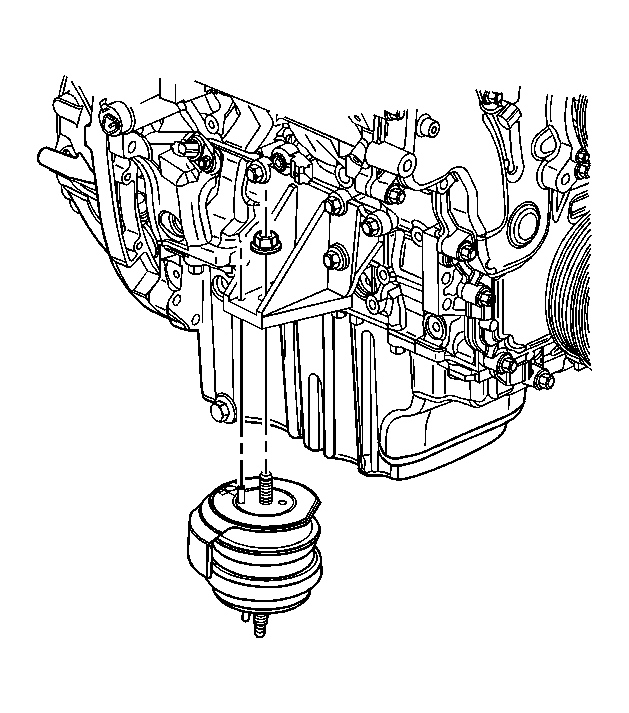

    5. Fig 2: View Of Right Engine Mount
    GM1283925Courtesy of GENERAL MOTORS CORP.
  5. Remove the upper engine mount retaining nut.
  6. Remove the engine mount from the vehicle.
