Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the generator and water pump drive belt. Refer to Drive Belt Replacement - Generator and Water Pump .
  2. Remove the power steering and air conditioning drive belt. Refer to Drive Belt Replacement - Power Steering and Air Conditioning .

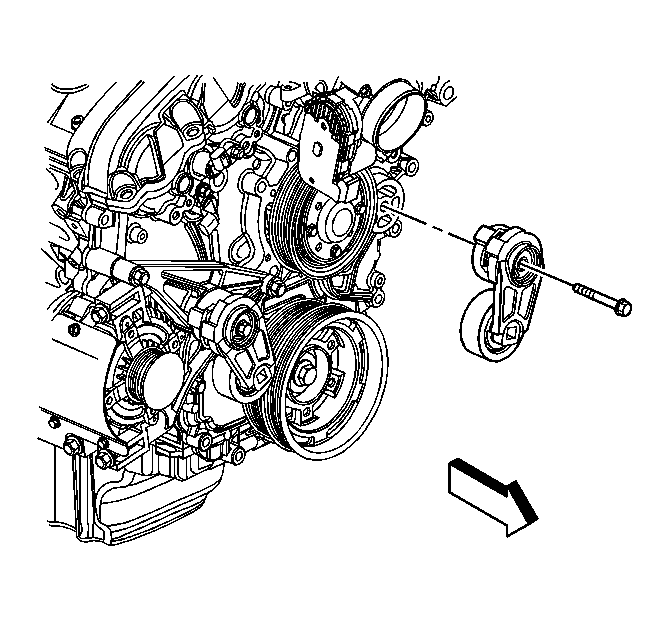

    3. Fig 1: Removing & Installing Drive Belt Tensioner (Power Steering And Air Conditioning)
    GM887771Courtesy of GENERAL MOTORS CORP.
  3. Loosen the drive belt tensioner bolt.
  4. Remove the drive belt tensioner and bolt from the engine.
