Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the generator and water pump drive belt. Refer to Drive Belt Replacement - Generator and Water Pump .

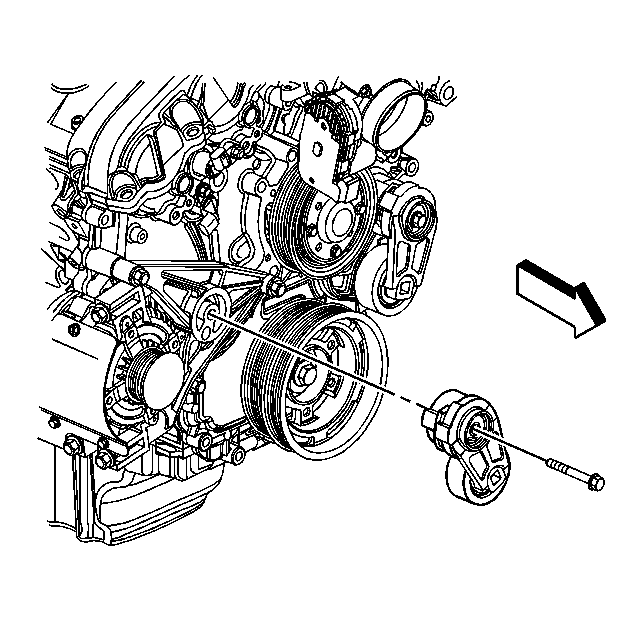

    2. Fig 1: Removing & Installing Drive Belt Tensioner (Generator And Water Pump)
    GM887773Courtesy of GENERAL MOTORS CORP.
  2. Loosen the drive belt tensioner bolt.
  3. Remove the drive belt tensioner and bolt from the engine.
